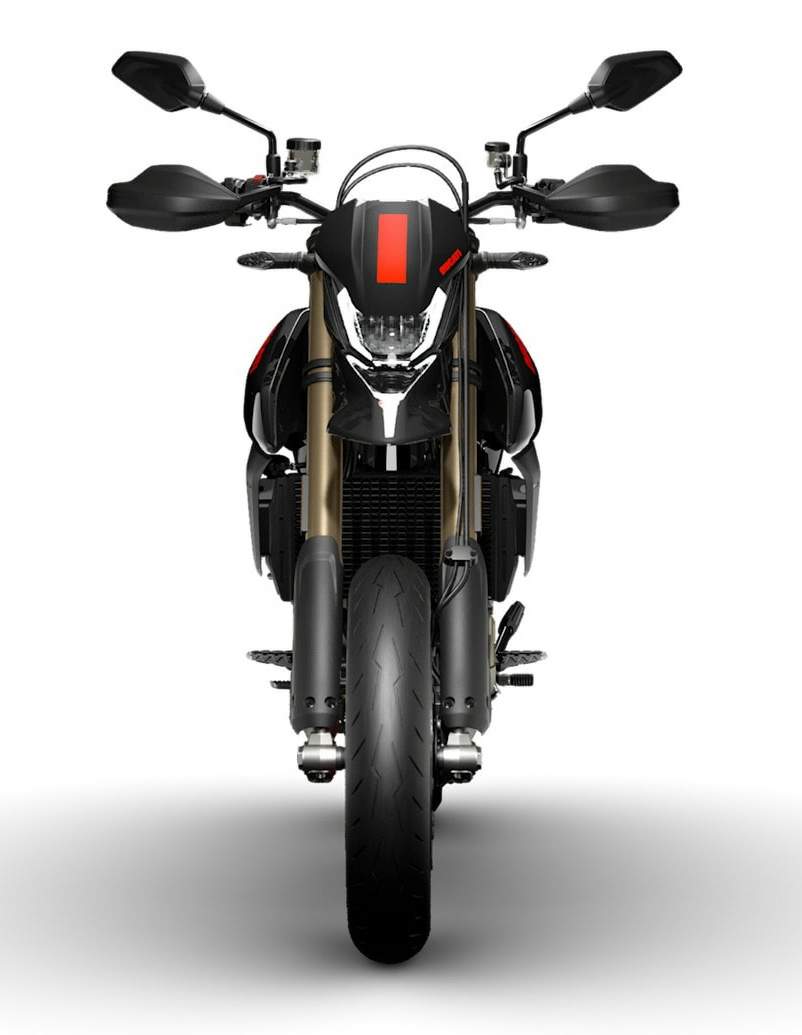

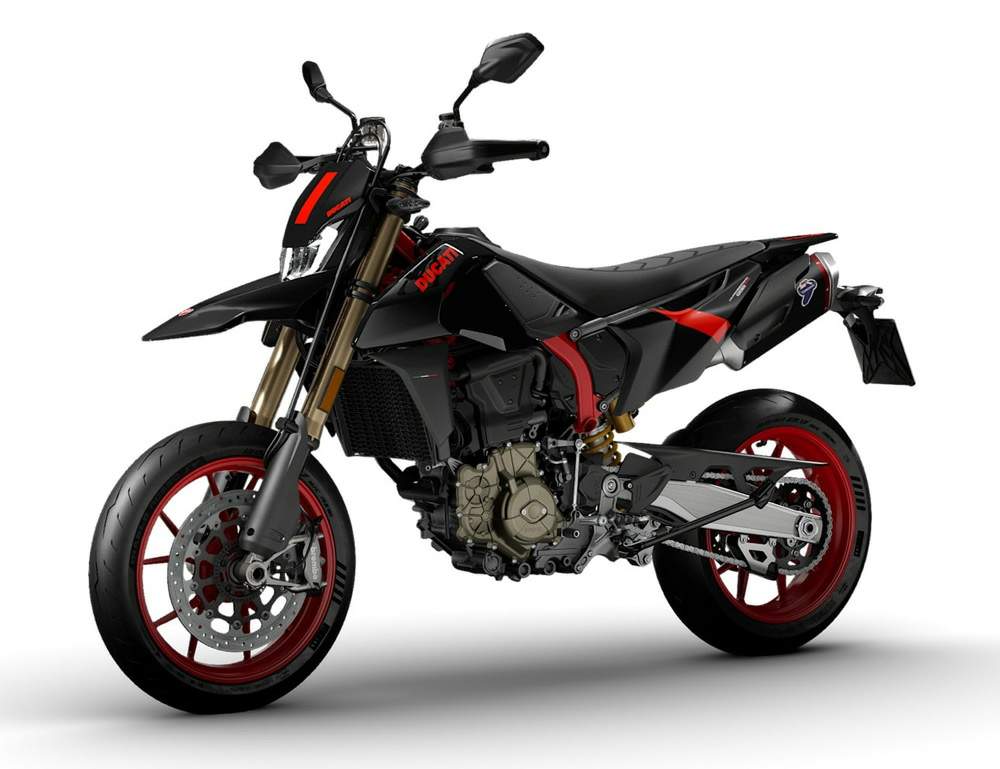

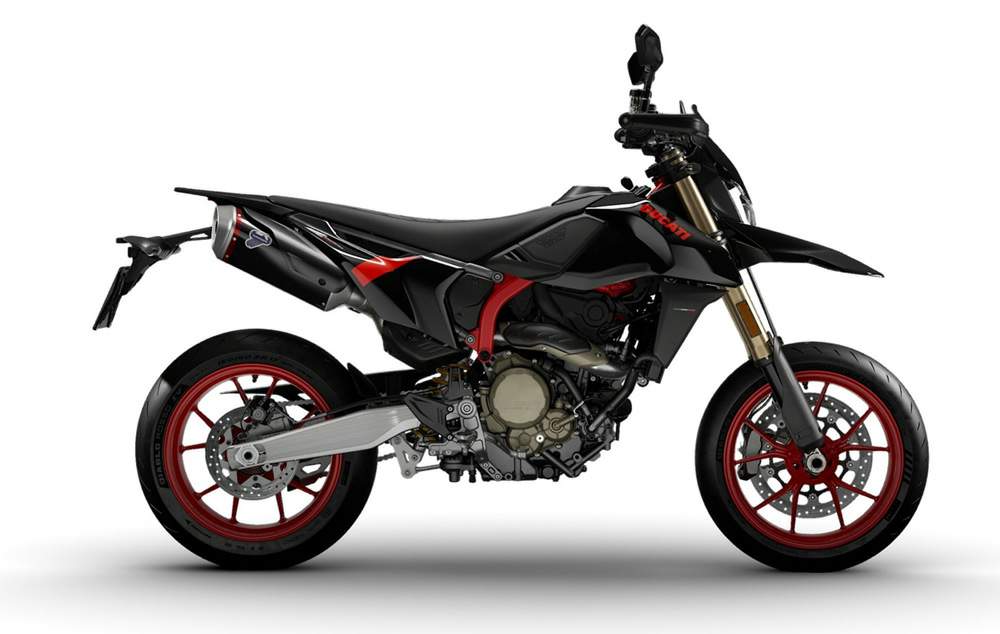

Ducati Hypermotard 698 Mono Nera

Make Model

Ducati Hypermotard 698 Mono Nera

Year

2026

Engine

Four stroke, Superquadro single cylinder, box-in-box piston, Desmodromic distribution with titanium intake 4 valves, two balance countershafts

Capacity

659 cc / 40.2 cu in

Bore x Stroke

116 x 62.4 mm

Cooling System

Liquid cooled

Compression Ratio

13.1:1

Exhaust

1-2 exhaust system, double aluminium mufflers, catalytic converter and lambda probe

Emission

EURO 5

Induction

Electronic fuel injection system, 62mm throttle body with full Ride by Wire system

Starting

Electric

Max Power

57 kW  / 77.5 hp @ 9,750 rpm

Max Torque

63 Nm / 46.5 lb-ft @ 8,000 rpm

Clutch

Slipper and self-servo wet multiplate clutch, hydraulic control

Transmission

6 Speed with Ducati Quick Shift Up/Down

Final Drive

Chain 520, front sprocket 15, rear sprocket 42

Gear Ratio

1st = 36/13, 2nd = 35/17, 3rd = 32/20,  4th 29/22, 5th 24/21, 6th 26/25

Primary Drive

Straight cut gears, Ratio 1.968:1

Frame

Steel trellis frame with tubes of different sections and thicknesses, steel tube subframe and aluminium double-sided swingarm

Front Suspension

45 mm Marzocchi upside-down fork, fully adjustable, with upper adjusters for hydraulic calibrations

Front Wheel Travel

215 mm / 8.5 in

Rear Suspension

Fully adjustable Sachs monoshock with interposition of progressive linkages, external adjusters for hydraulic calibrations

Rear Wheel Travel

240 mm  / 9.4 in

Front Brakes

Single 330 mm disc, with aluminium flange and Brembo M4.32 4-piston radial caliper

Rear Brakes

Single 245mm disc single piston floating caliper

ABS

Bosch-Brembo ABS 10.3ME Cornering braking system

Wheels

Y-shaped 5 Spoke alloy wheels
Front Rim 17 x 3.5
Rear Rim 17 x 5.0

Front Tyre

120/70 - ZR17 Pirelli Diablo Rosso IV

Rear Tyre

160/60 - ZR17 Pirelli Diablo Rosso IV

Rake

26.1°

Trail

108 mm / 4.25 in

Wheelbase

1443 mm / 56.8 in

Seat Height

904 mm / 35.6 in; 889 / 35 in with low seat accessory; 849 with low seat + low suspension kit accessory

Wet Weight (without fuel)

151 kg / 332 lbs
Fuel Capacity 12.1 Litres / 3.2 US gal
Equipment: Rider foot-rests optimised for sport riding with removable rubber covering for maximum grip with racing boots
Full LED headlight with double-C DRL, Full-LED rear light
Dashboard with 3.8” IBN (Improved Black Nematic) LCD screen with gear shift LED
Lithium ion battery o Bosch Inertial Measurement Unit (IMU)
3 Power Modes (Low, Mid, High)
4 Riding Modes (Sport, Road, Urban, Wet)
Ducati Wheelie Control (DWC)
Ducati Traction Control (DTC)
Engine Brake Control (EBC)
Ducati Power Launch (DPL)
Ducati Link Ready with infotainment apps
Ducati Quick Shift (DQS) Up & Down

From a press release issued by Ducati:

The Hypermotard range expands with the arrival of the new 698 Mono Nera, completing Ducati's family of single-cylinder street bikes. Featuring an eye-catching total black livery and an extensive technical specification, the Nera is now even more attractive and exciting to ride.

The Nera livery, with its combination of black and red, gives the 698 Mono a modern, high-performance look. Black dominates the design, creating a bold and aggressive appearance while serving as the perfect backdrop for striking red accents. Ducati Red wheels and frame reinforce the overall theme of power and performance. The homologated Termignoni steel silencers add a bold and gritty appearance.* Their design enhances the motorcycle's sporty character and elevates the visual impact of the rear section, thanks to the black finish with red details that perfectly match the livery. The Hypermotard 698 Mono Nera also comes standard with Ducati Quick Shift.

The Hypermotard 698 Mono was created with one objective only: to deliver excitement through the corners, on the racetrack and even in urban environments, applying Panigale-derived technical solutions for the engine, electronics and chassis to a completely new Ducati segment. Its Superquadro Mono engine is the most sophisticated and highest-performing road-going single-cylinder engine ever built, derived from the twin-cylinder engine of the 1299 Panigale. It inherits the 116 mm bore piston, combustion chamber, titanium intake valves, steel exhaust valves and Desmodromic valve timing—the same solution Ducati uses in MotoGP. The engine delivers a maximum power output of 77.5 hp and a peak engine speed of 10,250 rpm, a benchmark figure for the category.

The Hypermotard 698 Mono is compact and lightweight, weighing 151 kg ready to ride without fuel. This result is achieved through solutions such as the trellis frame with variable sections and thicknesses, capable of combining strength, rigidity and lightness, along with cast wheels and brake discs featuring aluminium flanges. The lightweight and essential double-sided swingarm operates through a progressive linkage connected to a fully adjustable rear shock absorber.

Its electronics package, unmatched in the category, allows even less experienced riders to learn Supermotard-style riding techniques, supported by ABS Cornering featuring settings specifically developed to manage “sideways riding” on track through the Slide-by-brake function. The electronics suite is completed by many of the systems found on the Panigale V4, specifically developed for this motorcycle: Ducati Traction Control, Ducati Wheelie Control, Engine Brake Control, Ducati Power Launch, and Ducati Quick Shift (DQS) Up/Down.

Ducati Wheelie Control also includes dedicated track-focused functions: in its standard version, the lowest setting allows controlled and safe front-wheel lift, maximizing both performance and fun. By fitting the racing Termignoni exhaust, intended for track use only and offering a 7-horsepower increase, an additional assistance strategy called Wheelie Assist is activated. In this case, the electronics help the rider execute and maintain prolonged wheelies by regulating the angle through engine torque delivery.
