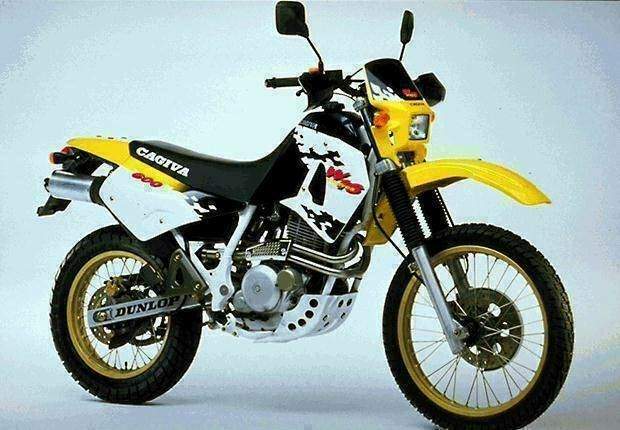

Cagiva W16 600

.

Make Model

Cagiva W16 600

Year

1994 - 97

Engine

Single cylinder. four stroke SOHC. 4 valves

Capacity

604.4 cc / 36.6 cu-in
Bore x Stroke 102 x 72.6mm
Compression Ratio 7.8:1

Induction

Single Mikuni carburetor

Ignition

Electronic CDI
Starting

Max Power

34 hp / 24.8 kW @ 5000 rpm

Max Torque

49.4 Nm / 36.5 lb-ft @ 4250 rpm

Transmission

5 Speed
Final Drive Chain

Front Suspension

Hydraulic telescopic fork, 200mm wheel travel

Rear Suspension

Monoshock, 240mm wheel travel

Front Brakes

Single 260mm disc

Rear Brakes

Single 220mm disc

Front Tyre

90/90-21

Rear Tyre

130/80-17
Wheelbase 1450 mm / 57.0 in
Seat Height 875 mm / 34.4 in

Dry Weight

155 kg / 341 lbs

Fuel Capacity

14 Litres / 3.7 US gal

Consumption Average

18.4 km/lit

Braking 60 - 0 / 100 - 0

14.0 m / 41.8 m

Standing ¼ Mile

14.5 sec / 138.1 km/h

Top Speed

150.8 km/h
