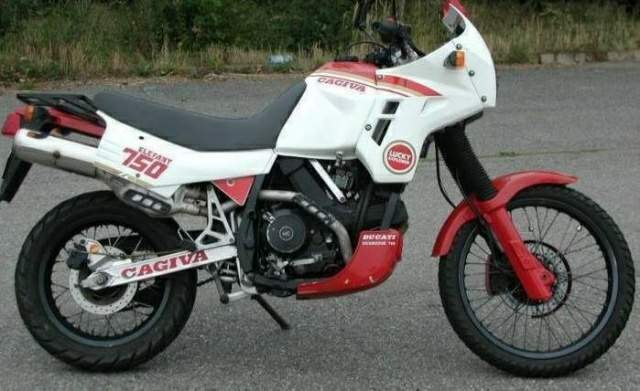

Cagiva Elefant 750

.

Make Model

Cagiva Elefant 750

Year

1987 - 88

Engine

Four stroke, 90° “L”twin cylinder, SOHC, desmodromic 2 valve per cylinder

Capacity

748 cc / 45.6 cu-in
Bore x Stroke 88 x 61.5 mm
Cooling System Air cooled
Compression Ratio 9.3:1

Induction

2x Bing 64/32/375 carburetor

Ignition

Kokusan transistorized
Starting Electric

Max Power

60.5 hp / 44.5 kW @ 8000 rpm

Max Power Rear Tyre

52.9 hp @ 7250 rpm

Max Torque

47 ft-lb @ 5500 rpm

Transmission

5 Speed
Final Drive Chain

Front Suspension

41mm Marzocchi forks
Rear Suspension Öhlins rising-rate swingarm
Front Brakes Single 260mm disc 4 piston caliper

Rear Brakes

Single 240mm disc 2 piston caliper

Front Tyre

90/90-21

Rear Tyre

130/90-17
Wheelbase 1520 mm / 59.8 in
Seat Height 900 mm / 35.4 in

Dry Weight

191 kg / 421 lbs
Wet Weight 213.0 kg / 469 lbs

Fuel Capacity

19 Litres / 5.0 US gal

Top Speed

174 km/h / 108 mph
