Four stroke, two cylinder
horizontally opposed Boxer, 4 valves per cylinder
Capacity
1130 cc / 68.9 in
Bore x Stroke
101 x 70.5 mm
Compression Ratio
10.3:1
Cooling System
Air/oil cooled
Induction
Fuel injection
Ignition
Electronic ignition MA 2.2
Bosch Motronic
Starting
Electric
Max Power
62.5 kW /
85 hp @ 6750 rpm (rear tyre
58.9 kW 79 hp @ 6750 rpm)
Max Torque
98 Nm / 9.99 kgf-m / 71 lb.-ft @ 5250
rpm
Transmission
6 Speed
Final
Drive
Shaft
Front Suspension
Light telelever with central spring
strut, progressive coil spring, twin-tube gas-filled shock
Rear Suspension
Patented BMW Paralever
swing arm & shaft drive,
single shock with variable rebound damping
Front Brakes
2 x 304mm discs, 4-piston
calipers
Rear Brakes
Single 276 mm disc, 2-piston
caliper
Front Tyre
110/80 R19
Rear Tyre
150/70 R17
Fuel Capacity
22.1 Litres / 5.8 US gal
.

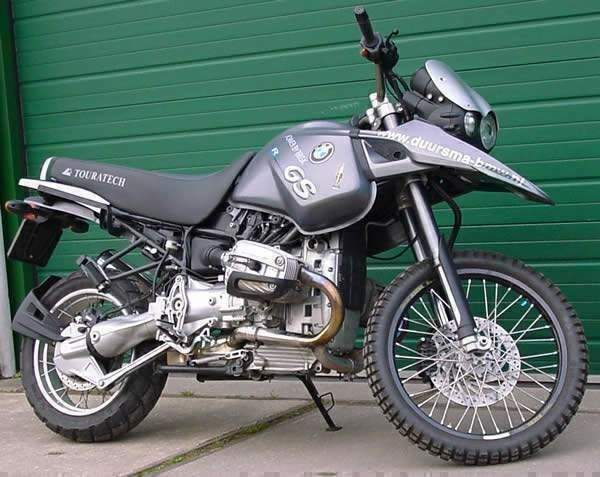

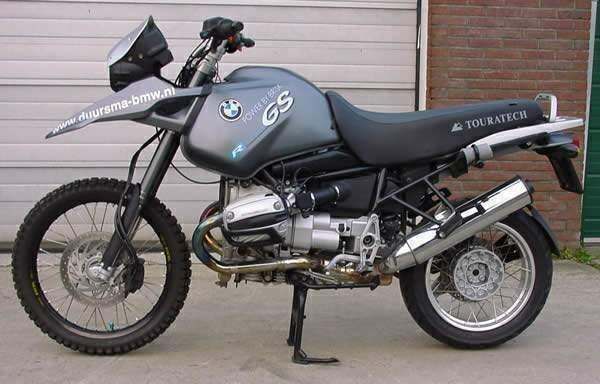

For this BMW GS1150 a special kit has been developed in cooperation with
BMW-dealer Bert Duursma from Apeldoorn. This kit allows you to take your BMW
Off Road. The kit consists of a specially designed frontframe which replaces
the entire original system, a long 'Off Road' WP front fork, an aluminium rearframe and a WP rear shock-absorber. You can also choose between the
original spoke and the optional special spoke wheels.
Any corrections or more information on these motorcycles will be kindly appreciated.
