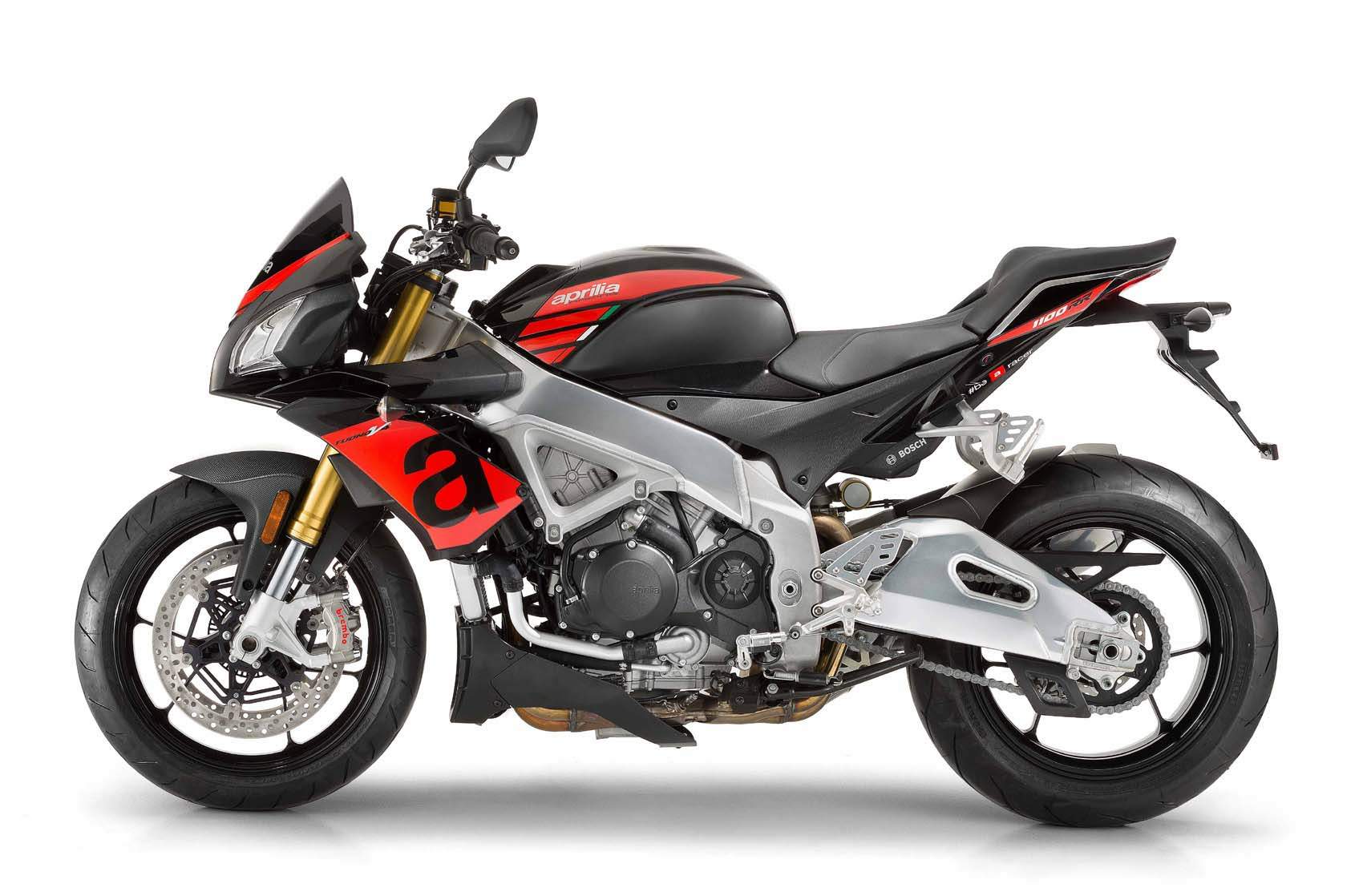

Aprilia Tuono V4 1100RR

Completely Revamped Electronics

The greatest innovations are presented in the new Tuono V4’s on board electronics, that has always been considered as the “best in class”, where the APRC system stands out. Aprilia Performance Ride Control is the patented control suite derived directly from the winning technology in world Superbike, the most complete and refined of those available on the market. The fourth generation of APRC, standard on the Tuono V4 1100, fits perfectly with the electronic management of the new full Ride-by-Wire throttle, that has allowed all superfluous throttle body electronic management components to be eliminated, thereby saving 590 grams. The repositioning of the inertial platform that allows APRC operation has improved accurate detection of the dynamic conditions of the bike, resulting in more efficient electronic control strategies. The Tuono V4 1100 RR and Tuono V4 1100 Factory APRC include:

• New ATC: Aprilia Traction Control, adjustable on the fly, (without having to release the throttle) to 8 settings, as well as disabled, thanks to a practical joystick, now even more fine-tuned logic for higher performance operation.

• New AWC: Aprilia Wheelie Control, adjustable to 3 levels, also well as disabled, receives more precise operating strategies thanks to the repositioning of the inertial platform. Wheelie control can now be adjusted on the fly without closing the throttle, like the ATC, thanks to the new and more practical left side electric block.

• New ALC: Aprilia Launch Control, for use on the track only, with 3 settings, more effective with new operating strategies.
• New AQS: Aprilia Quick Shift, the electronic gearbox that allows shifting without closing the throttle and without using the clutch, now adds the capability of clutchless downshifting. Its open-throttle downshifting feature is exclusive.

• New APL: Aprilia Pit Limiter lets you select and limit the top speed allowed in pit lane at the track or simply to make it easier to comply with posted speed limits on the road.

• New ACC: Aprilia Cruise Control. The new electronic management allows an advanced cruise control system to be introduced, convenient on long trips, letting rider maintain the set speed without touching the throttle.

The new Tuono V4 1100 range is fitted with the advanced multi-map Cornering ABS system, developed in collaboration with Bosch to guarantee maximum safety on the road, without sacrificing performance on the track. The 9.1 MP system, both compact and lightweight, is able to optimize braking and the ABS intervention in corners, thanks to a specific algorithm that constantly monitors various parameters such as lateral acceleration, the pressure applied to the front brake lever, the lean, pitch and yaw angles, modulating the braking action to better guarantee the ratio between deceleration and stability. The new ABS system works in unison with the Aprilia RLM (Rear Liftup Mitigation) system that limits the lift of the rear wheel during more abrupt braking. Cornering ABS, fine-tuned in accordance with Aprilia’s specific indications, is adjustable to 3 levels of sensibility and can be switched off. In order to allow riders with various levels of experience to find the best possible combination, each of the three Cornering ABS maps can be combined with any of the three new engine maps (Sport, Track, Race) – all three allowing “full power” while differing in their strategies of applying the 175 HP of which the Aprilia V4 is capable, in addition to the percentage of engine brake dedicated to them.

The color TFT digital instrumentation is also entirely new, with exceptional display options. The two selectable screen pages (Road and Race, both with night and day backlighting) correspond to as many represented indexes. There is an optional new version of the V4-MP, the Aprilia multimedia platform that lets you connect your smartphone to the vehicle, introducing a true corner by corner electronic settings calibration system with data that can subsequently be downloaded to your laptop (or displayed directly on the smartphone screen) for analysis, similar to that of an actual race team. The new V4-MP adds a new connection protocol that minimizes smartphone battery consumption, in addition to providing a larger range of circuits already mapped in which you can manage the electronic settings corner by corner, as well as user acquisition of a new circuit not pre-installed by Aprilia. V4-MP includes the new infotainment system, introduced by Aprilia for the first time on the new Tuono V4, to manage voice commands and incoming/outgoing telephone calls with your smartphone.

Euro 4 Engine, The Same Exciting Performance

The Tuono V4 1100 is the only naked powered by a 65° V4 engine with unique characteristics. The narrow V architecture has made it possible to make an engine that is extremely compact lengthways which helps centralize weight, while maintaining a compact chassis. The changes made in this evolution of the Italian V4 not only resulted in earning Euro 4 approval, but also in increasing overall reliability and performance, without sacrificing the great character and marvellous sound that riders love so much. The powerplant earns a new exhaust system with a silencer that has a double oxygen sensor and a built in valve. The engine ECU is new, with superior calculating capacity able to manage the rise in maximum revs, now 500 rpm higher. In order to guarantee maximum reliability, decreasing friction at the same time, the piston pins receive DLC surface, and connecting rod heads boast a surface honing treatment. The combustion chambers are no longer obtained through a fusion process, but by a finer, numerically controlled mechanical process, whereas the gearbox now has a linear sensor to guarantee impeccable gearshift operation.

Suspension and Brakes Directly from the New RSV4

If, on one hand, the new Tuono V4 range fully confirms all the proverbial qualities of handling and stability stemming from a frame that is closely derived from that of the Aprilia RSV4, seven-time World Superbike champion, on the other, it introduces important upgrades in the brakes and suspension department. The front Brembo braking system comes directly from the one on the new RSV4 and relies on a pair of new steel discs that have been increased to 330 mm, gripped by the new monobloc M50 callipers and activated by a radial master cylinder on the handlebar. Aprilia Tuono V4 1100 Factory also has a prestigious Öhlins NIX, with fully adjustable hydraulics and spring preload. This unit saves nearly 400 grams compared with the previous iteration and is combined with the same brand rear shock absorber and steering damper (both adjustable).

Versions and Colors

The new Aprilia Tuono V4 1100 range includes two models distinguished by different technical equipment and different color schemes: Tuono V4 1100 RR is available in two attractive color schemes, Grigio Portimao and Nero Assen, whereas the Superpole graphic of the Tuono V4 1100 Factory retains the decidedly non-conformist spirit so typical of the Aprilia stylistic tradition that demands bright and very distinctive colors. Tuono V4 1100 Factory stands out technically because of the most refined trio of Öhlins suspension systems and stylistically because of its magnificent tail fairing (approved for two-up) derived from the RSV4. The cast aluminum wheels are the same for both models: their lightweight quality contributes to a maximum reduction of the gyroscopic effect, all to the advantage of great handling. Tuono V4 1100 Factory is shod with the more sporty Pirelli Diablo Supercorsa, with a wider 200/55 on the rear approved for street use, and available for the Tuono V4 RR as well which, on the other hand, comes standard with 190/55 on the rear and new Pirelli Diablo Rosso III tyres.
