Indian FTR 1200R Carbon

.

Make Model

Indian FTR 1200R Carbon

Year

2021
Engine Four stroke, 60° V Twin , DOHC, 4 valves per cylinder, graded buckets

Capacity

1203 cc / 73 cu-in
Bore x Stroke 102 x 73.6 mm
Compression Ratio 12.5:1
Cooling System Liquid Cooled
Induction Electronic Fuel Injection closed loop, 60 mm bore
Emission EURO5
Exhaust Akrapovič 2-into-1
Starting Electric

Max Power

120 hp / 89.4  kW @ 6000 rpm

Max Torque

117.9 Nm / 87 lb-ft @ 6000 rpm
Clutch Assist & Slip, Multi-Plate

Transmission

6 Speed
Final Drive Chain
Final Drive Ratio 2.647:1
Gear Ratios 1st 12.270:1   2nd 8.341:1   3rd 6.646:1   4th 5.639:1   5th 4.985:1 6th 4.278:1
Primary Drive Gear drive wet clutch
Lean Angle 43°
Frame Steel trellis

Front Suspension

43 mm Öhlins fully adjustable inverted telescopic cartidge fork

Front Wheel Travel

120 mm / 4.7 in

Rear Suspension

Öhlins fully adjustable piggyback IFP

Rear Wheel Travel

120 mm / 4.7 in

Front Brakes

2x 320mm t5 Rotor Brembo with 4-piston calipers

Rear Brakes

Single 260mm t5 Rotor Brembo with 2-piston calipers
ABS Standard, option to disable
Front Wheel Cast Black with Indy Red Pinstripe 17 in x 3.5 in
Rear Wheel Cast Black with Indy Red Pinstripe 17 in x 5.5 in

Front Tyre

120/70ZR17 58W Metzeler Sportec

Rear Tyre

180/55ZR17 73W Metzeler Sportec
Rake 25.3°
Trail 99.9 mm / 3.9 in
Dimensions Length 2223 mm / 87.5 in
Width    830 mm / 32.7 in
Height 1297 mm / 51.1 in
Wheelbase 1524 mm / 60 in
Seat Height 780 mm / 30.7 in
Ground Clearance 170 mm / 6.5 in

Dry Weight

217 kg / 479 lbs

Wet Weight

232 kg / 511 lbs
Fuel Capacity 12.9 Litres / 3.4 US gal

Standard Equipment

Ride Modes (Rain, Standard, Sport), Lean Angle Sensitive ABS, Stabilitiy Control, Traction Control, Wheelie Control with Rear Lift Mitigation, USB Charge Port, Cruise Control)
.

From a press release issued By Indian Motorcycle:

FTR Lineup Tuned for Optimal Street Performance

Delivers World-Class Handling

Indian Motorcycle redefined what an American V-Twin can be with the introduction of its category-defying FTR platform in 2019. Now, America’s First Motorcycle Company is taking the beloved FTR platform to a whole new level of street performance with the 2022 FTR lineup.

Already admired for its unique styling, strong engine and great handling, the FTR is now at the top of its game when it comes to performance on the tarmac. With close attention paid to refining the engine tune, optimising suspension settings plus a steeper head angle, shorter trail and now running asphalt oriented 17” tyres and wheels; the 2022 FTR delivers world-class performance and agility while feeling more compact too.

Heightening its street performance credentials, all FTR models now feature the sporty profile of Metzeler Sportec tyres and fully-adjustable suspension with the flagship FTR R Carbon benefitting from top quality Öhlins units front and rear. The new engine calibration takes advantage of the running gear enhancements by refining engine performance for a smoother, more predictable throttle response as well as cylinder deactivation to manage engine heat when the motorcycle is idle.

In addition to its American heritage, iconic silhouette, and class-leading fit and finish, the FTR delivers an unmatched feature set including a 110mm (4.3-inch) digital touchscreen display and a 1203cc liquid-cooled V-twin engine that produces 92 kW (123 hp) and 120 Nm (88.5 ft-lb) of torque. With its perfect balance of style and performance, the FTR lineup delivers a truly superior riding experience.

The FTR R Carbon is outfitted with 17-inch cast aluminium wheels wrapped with Metzeler Sportec street tyres – resulting in precise handling further enhanced with a steeper rake angle of 25° and a shorter trail of 99.9 mm. Smaller wheels, along with the bike’s front and rear suspension which offer 120mm of travel, contribute to a lower seat height by 36mm (1.4-inches) – opening the door for more riders to throw a leg over the FTR. Additionally, the ProTaper handlebars were trimmed by 40mm (1.5-inches) to support the bike’s nimble handling and give riders more control.

Additional updates for the new FTR line further refine performance and rider comfort. These three models offer fully adjustable front and rear suspension, a new feature added to the FTR base, as well as cylinder deactivation to manage engine heat when the motorcycle is idle. The new engine calibration also improves cold starts.

Each FTR model packs a host of standard features that carry over from previous FTR iterations. Radially mounted dual Brembo brakes provide riders with exceptional control and superior stopping power, while cruise control contributes to a comfortable ride.

The FTR R Carbon includes Indian Motorcycle’s 110 mm (4.3-inch) touchscreen display, which offers phone integration via Bluetooth or USB and configurable gauges. The FTR R Carbon comes standard with three ride modes, wheelie control with rear lift mitigation, stability control, traction control and cornering ABS. Additionally, a fast-charging USB port provides a convenient means to charge personal devices.

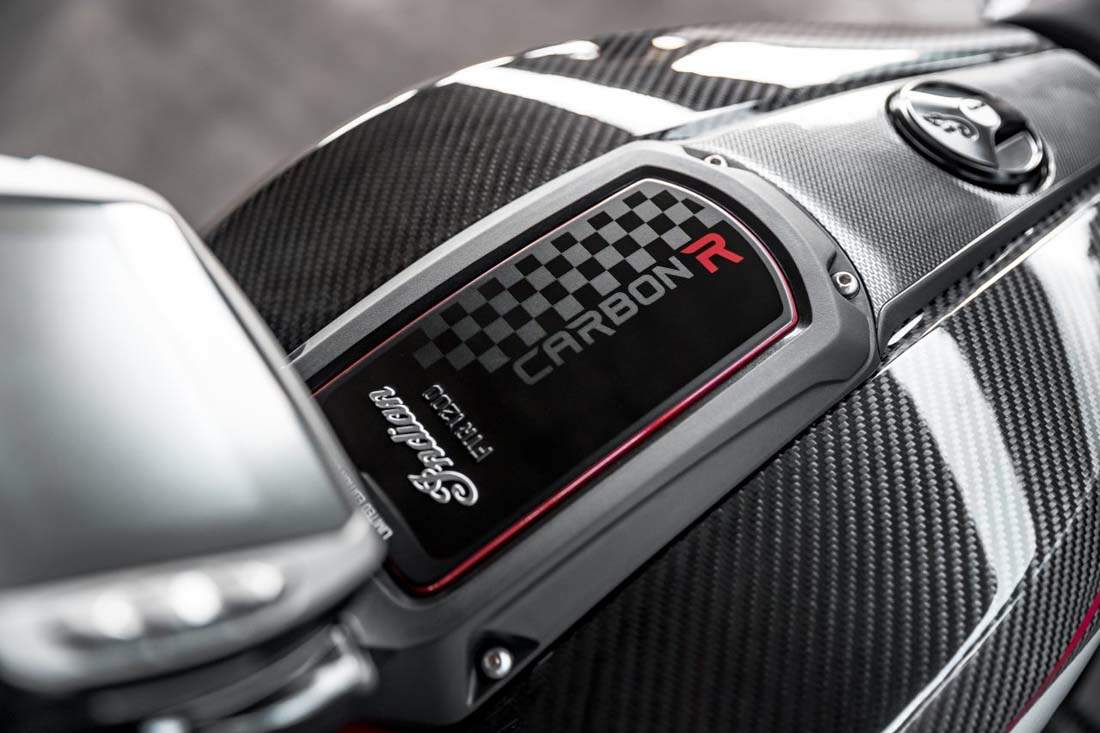

The FTR R Carbon sits at the top as the flagship model in the FTR lineup. In addition to the aforementioned features shared with the FTR S, the FTR R Carbon sets itself apart with carbon fibre tank covers, front fender and headlight nacelle, fully adjustable Öhlins gold front forks and gold piggyback shock, a black Akrapovič exhaust, premium seat cover, and numbered badging on the console.

Accessories

An ideal platform for personalisation, the FTR also receives an expanded offering of style, performance and comfort accessories. New style accessories include new tank pads available in black and clear, while a host of carbon fibre parts are now available, including chain guards, V-Covers, radiator guards and a 17-inch front fender. Riders can also upgrade their suspension with an Öhlins forks and shock kit, while riders looking to go the extra mile can add a rear rack bag, R Carbon Seat and a USB charging port.

In addition, Indian Motorcycle is carrying over more than 60 FTR parts and accessories. Designed with the perfect fitment, riders can personalise their FTR with a full accessory line ranging from tank covers to high and low-mount Akrapovič exhaust options, storage bags, a luggage rack, a mid-windshield and more.

Key points of differentiation between models include the following:

FTR

The base FTR features an analogue gauge and is available in Black Smoke with red accents throughout, including red pinstripes on the wheels, red Indian Motorcycle script branding across the tank, and a red rear shock spring. The base FTR is also available in a reduced power version for A2 compliance.

FTR S

With two paint options, Maroon Metallic and White Smoke, the premium offering includes Indian Motorcycle’s 110 mm (4.3-inch) touchscreen display, which offers phone integration via Bluetooth or USB and configurable gauges. The FTR S comes standard with an upgraded Akrapovič exhaust, three ride modes, wheelie control with rear lift mitigation, stability control, traction control and cornering ABS. Additionally, a fast-charging USB port provides a convenient means to charge personal devices.

FTR R Carbon

The FTR R Carbon sits at the top as the premier model in the FTR lineup. In addition to the aforementioned features listed with the FTR S, the FTR R Carbon sets itself apart with carbon fibre tank covers, front fender and headlight nacelle, fully adjustable Öhlins gold front forks and gold piggyback shock, a black Akrapovič exhaust, premium seat cover, and numbered badging on the console.

TOP NOTCH STYLING
Carbon fiber bodywork and numbered carbon badging constantly remind you just how exclusive your ride really is.

ADJUSTABLE ÖHLINS SUSPENSION
Fully adjustable industry-leading Öhlins forks and piggyback shocks let you customize the ride to perfectly fit your style.

PREMIUM SEAT
Top-of-the-line seat with paint matched subframe contributes to the striking fit and finish of the FTR R Carbon. You'll get unmatched comfort--and emotion--every time you sit on it.

NIMBLE HANDLING
17 in wheels with Metzeler Sportec tires and street tuned suspension provide planted cornering, agility, and agile handling.

BLACKED-OUT AKRAPOVIC EXHAUST
Turn heads with a blacked-out Akrapovič exhaust and fender to fender carbon fiber.

POISED FOR THRILLS
Class-leading 87 ft-lbs of torque and 120hp with smooth power delivery to push your heart to the back of your chest and your concerns to the back of your mind.

RIDE MODES
Sport, Standard, and Rain modes with unique throttle maps and traction control intervention levels give you optimal performance for control in any condition.

RIDE COMMAND 4.3 IN TOUCHSCREEN
A 4.3 in customizable RIDE COMMAND LCD glove-touch screen with Bluetooth® lets you easily pair your mobile device and control your bike with the touch of your finger.

TAKE CONTROL
Ride confidently with lean-angle stability control, ABS with cornering pre-control, and wheelie control with rear lift mitigation. Rear Cylinder Deactivation and improved heat management ensure your thoughts are on the road, and not on staying cool.

FTR Rally

Maintaining its scrambler aesthetic, the FTR Rally features Pirelli Scorpion Rally STR tyres over wire-spoke wheels with an 18-inch in the rear and 19-inch in front. Like other FTR models, the FTR Rally receives the refined engine calibration and throttle response, along with rear cylinder deactivation. The FTR Rally’s ProTaper handlebars are 50mm (2 inches) higher than other FTR models for better comfort and handling with a more relaxed ergonomic position. The FTR Rally features an analogue gauge and is available in Titanium Smoke. Like the base FTR, the FTR Rally is also available in a reduced power version for A2 compliance.
