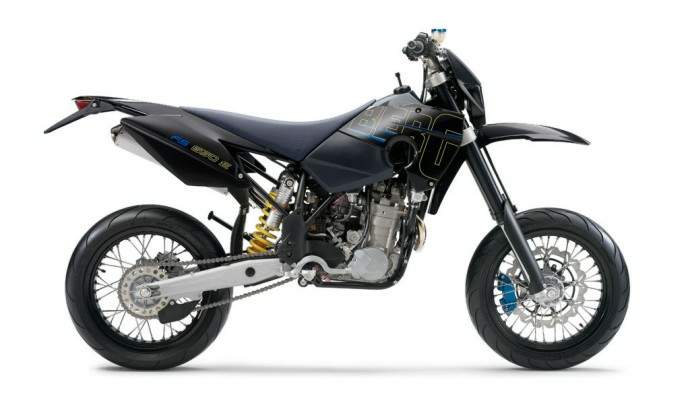

Husaberg FS 650e Supermoto

Make Model	Husaberg FS 650e Supermoto
Year	2008 -
Engine	Four stroke, single cylinder, SOHC, 4 valves
Capacity	644 cc / 39.6 cu-in
Bore x Stroke	100 x 82 mm
Cooling System	Liquid cooled
Compression Ratio	12.2:1
Induction	Keihin CVR 32
Lubrication	Pressure circulation, trochoit oil pump
Ignition	Kokusan digital
Starting	Electric & Kick
Max Power	NA
Max Torque	NA
Clutch	Wet multi-disc clutch, operated hydraulically
Transmission	6 Speed
Final Drive	Chain
Frame	25CrMo4 tempered
Front Suspension	WP USD 4860 MA Husaberg enduro
Rear Suspension	WP PDS 5018 MCC Husaberg enduro
Front Brakes	Single 260mm disc
Rear Brakes	Single 220mm disc
Front Tyre	120/70-ZR17
Rear Tyre	160/60-ZR17
Wheelbase	1490 mm / 58.7 in
Seat Height	950 mm / 37.4 in
Dry Weight	113 kg / 249 lbs
Fuel Capacity	10.5 Litres / 2.7 US gal

Shock absorber- Updated setting and new spring colour in classic Husaberg-Yellow. For all models 2008.

Frame- Completely reworked frame-welding fixture used for all models 2008 with some new attachments points (e.g. silencer more spaced out to give better room for rear wheel).

Counter Balancer- A new type of counter balancer installed on all models of 2008. One-piece unit with a new type of bearing for longer duration.

Gearbox Stop-discs- Stop-discs in the gearbox with a new, higher collar for increased projection. To make the gearbox more durable against hard force on shifter. For all models of the 2008 series.

Water Pump Sealing- New type of material installed for the water pump seal with improved sealing function. For all models 2008.

Crankacase- In addition all 550cc models with a new type of crankcase in the area of the main bearings by concentrated reinforcement of the material around the bearings.

Crankshaft- Crankshaft with further improved tolerance values for maximum service life on models of the 2008 series.

Stickers & Decals- This years Supermoto has received a more dark appearance that emphasizes the feeling of the well known strong and light Husaberg Supermotos. The Enduro model have a sharper appearance with more distinguished lines in the graphics in combination with exclusive details. This is a pure racer!

Pre-load Adjuster- The WP pre-load adjuster offering additional individual tuning options on all 2008 models.

Steering Stem- Steering stem of the stronger aluminium type 2007.

Front Fork- new 12 mm coated aluminium piston rod instead of 14 mm steel and updated suspension settings for less friction and less weight on all models.

Triple Clamp- Exclusive CNC machined triple clamp on all 2008 models now including Enduro. The triple clamp is stronger and offers the adjustable offset function.

Front Brake Supermoto- Supermoto front brake master cylinder with a new type of adjustment of the pressure point. The position of the adjustment is changed.
