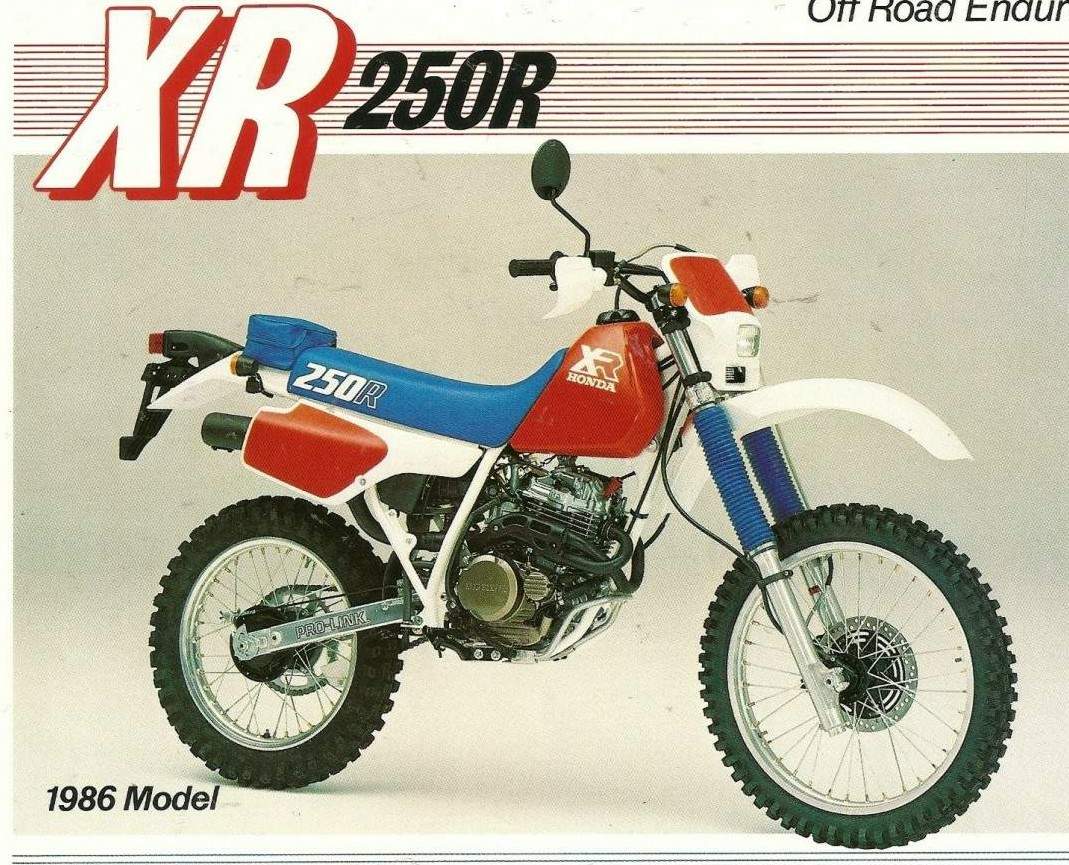

Honda XR 250R

.

Make Model

Honda XR 250R

Year

1986

Engine

Four-stroke, single cylinder SOHC, 4 valve, RFVC (Radial Four Valve Combustion Chamber)

Capacity

249 cc / 15.1 cu-in
Bore x Stroke 75 x 56.5 mm
Cooling System Air cooled
Compression Ratio 10.2:1

Induction

2x 21mm Keihin carbs

Ignition

CDI
Spark Plug NGK DPR 9Z
Starting Kick

Max Power

30 hp / 21.9 kW @ 8500 rpm

Max Torque

24.5 Nm @ 7000 rpm

Transmission

6 Speed
Final Drive Chain
Gear Ratio 1st 2.769 2nd 1.882 3rd 1.380 4th 1.083 5th 0.923 6th 0.814

Front Suspension

Leading axel air spring 37mm forks
Front Wheel Travel 254 mm / 10.0 in

Rear Suspension

Pro-link Kayaba damper adjustment for spring preload and rebound damping
Rear Wheel Travel 247 mm / 9.6 in

Front Brakes

Single 240mm disc  2 piston calipers

Rear Brakes

Drum
Wheels Aluminium rim wire spoke

Front Tyre

80/100-21

Rear Tyre

110/90-17
Rake 26°
Trail 105 mm / 4.1 in
Wheelbase 1365 mm / 53.7 in
Seat Height 905 mm / 35.6 in
Ground clearance 315 mm / 12.4 in

Dimensions

Length 2035 mm / 80.1 in
Width 880 mm / 34.6 in
Height 1180 mm / 46.5 in

Dry Weight

105 kg / 231 lbs
Wet Weight 112 kg / 247 lbs

Fuel Capacity

9 Litres / 2.4 gal
.

NEW FEATURES

• New engine retains Radial four Valve Combustion Chamber IRFVC) but bore and stroke have been changed from 75 mm x 56.5 mm to 73 mm x 59.5 mm. The dual 24 mm carburettors of the 7985 model has been replaced by a single 30 mm-chokc unit
• OH cooler now fitted.
• Nev/box section Irume reduces weight and improves rigidity
• Leading axle front forks are 41 mm in diameter with 280 mm travel.
• 18m rear tyre replaces I 7m tyre of 1985 machine.
m Goldanodised aluminium v/heel rims arc hollow to reduce unsprung weight.
• Lightweight tubular engine guard prevents mud bwld-up.
• Digital enduro meter is standard equipment It features clock, tnpmeter, speedometer and calibration functions.
• 12v 35/35w rectangular headlight

KEY FEATURES
• Pro-Link rear suspension with 76-way compression and 4-way rebound damping adjustment gives 244 mm axle travel.
• Dual-port, twin-pipe exhaust system tor improved flow and engine cooling.
• No-srtag side-pull throttle, dog-leg handlebar levers and handlebar brush guards.

Dirt Bike Rider  1986

The original XR250 began life in 1979 as a scaled-down XR500. While the engineers at Honda fiddled with the possibilities of punching out the two-valve, 200cc motor, they ran into problems with reliability and settled for a down-sized 500 motor. The tried-and-true 250 was a machine designed for the play rider with its docile motor and average suspension units, and it did the job it was intended to do.

For several years the bike rode the same production course, until 1984, when the RFVC, or Honda's Radial Four Valve Combustion chamber was introduced in an effort to broaden the powerband and increase the compression. The '84 and '85 XR250s upped their competitive value with increases in suspension and motor output but still remained, at best, serious playbikes.

TIME TO GET SERIOUS

Nineteen eighty-six has seen the Honda people reevaluate their game plan in the four-stroke lineup. The mainstay XR350 has been dropped, and a major effort has gone into the development work of the '86 XR250.
Though the 350cc bike was a popular choice with the consumer, and probably the best enduro effort ever offered by Honda, it was hurt by its displacement. A small four-stroke can't compete with a small two-stroke, and an Open four-stroke gives away too much weight to the Open two-stroke. With this in mind, the Honda engineers channeled their efforts toward building the best four-stroke 250 they could.

The '86 XR250 is designed to meet the challenges of Eastern enduro competition. Instead of being a 70-percent play and 30-percent serious machine, it is now 70-percent serious and 30-percent play.

THE HEART OF THE MATTER

Honda took the peaky power of the '85 machine and reworked the bore and stroke to allow for mid-range muscle. They kept the same compression ratio but dropped the twin 24mm carbs of the past in favor of a single 30mm unit. The '85 oil pump was changed from a single pump to a dual pump. By redirecting the oil away from the mag, they have helped keep things cool and assisted the power increase. With the addition of the steering-mounted oil cooler on this year's bike, they have further increased the cooling capacity.

PRETTY SNAZZY CHASSIS

The biggest news regarding the new XR is the 238-pound dry weight figure. With the box-section front downtube and the addition of a lightweight, rigid chassis, the old world theory of a fat four-stroke has been reduced immensely. The dimensions of the bike have been altered to allow for a slight increase in the trail and rake from 26 degrees to 26.5 degrees. It still turns with the prowess of the older XR, and has forgiving manners in the sand.

Honda's new-wave thought process concerning the XR is evident in the suspension

sophistication for '86. The forks have gone from the marginal 38mm units of yesterday, to the beefy 41mm units on the '86 XR250. They are similar to the motocross legs on the mighty Honda CR125—fully adjustable Kayaba units. The travel has been increased one full inch over the previous 250, from ten to 11 inches, and the performance of the forks would have to be rated as very good. While the action is plush and leans toward the soft side, they should make the Eastern rider happy. In the small bumps they perform flawlessly by sponging up any obstacle they come across. It's only on a major league wallop that glitches surface. They bottom out hard, and transmit the shock directly to the rider. A quick and painless remedy is to increase the oil level (from six inches from the top of the tube to five inches). The result is instant relief for the rider, who can then attack obstacles with little fear.


In the backyard, Honda kept the engineering ball rolling. The steel swingarm of the '85 bike was shelved in favor of an aluminum unit, and the travel punched out from 9.6 inches to a hefty 11 inches of travel. Our first ride on the XR was an exercise in frustration as the Pro-Link swapped, hopped and smacked like a wounded giraffe. The problem lies in the lack of available rebound damping, and only after we set the sag and maxed out the rebound clicker did the action calm down. We feel the shock is the one weak link and definitely needs work.
While they were busy increasing the travel of the shock, Honda put the magic wand on the wheelbase and coaxed another 3.5 inches out of it. With a competitive length wheelbase, the XR has better straight-line stability. It still tends to hunt and wander a bit, but its overall performance is exactly what the Honda boys had set out to accomplish. It carves a razor-sharp turn with the right amount of rider input and can haul some serious timber over the straight-line nasties.

A WORD FROM THE GALLERY

Honda pulled out the stops and focused a serious effort on the enduro competitor. The front disc brake is a twin-piston caliper unit that slows down the rolling Honda nicely. It's not a grabby feel, but a progressive action that all our testers enjoyed. A quick-change rear wheel cuts the time of removing the wheel in half, over the older design. An ingenious clamp system does away with the time-consuming chore of readjusting the chain after pulling the wheel. Speaking of the wheel, Honda has finally dropped the 17-inch wheel of the past. With the use of lower-profile tires, the seat height of the '86 machine remains the same as the '85 bike.
While the body work of the XR is the same as the '85 XR350 in the fenders and side panels, the fuel tank is all new and is now taller, shorter and narrower. The safety seat has also been updated, and the result is an excellent seating position for all riders.


Enduro goodies include a tubular aluminum engine guard that replaces the old skid plate. A rear-fender-mounted tool kit and quick-change air filter that requires no tools to remove are now standard. A cheaper re-settable odometer is stock equipment. Too bad it's not the neat clock/odo combination which is still available as a kit.

ON THE SADDLE

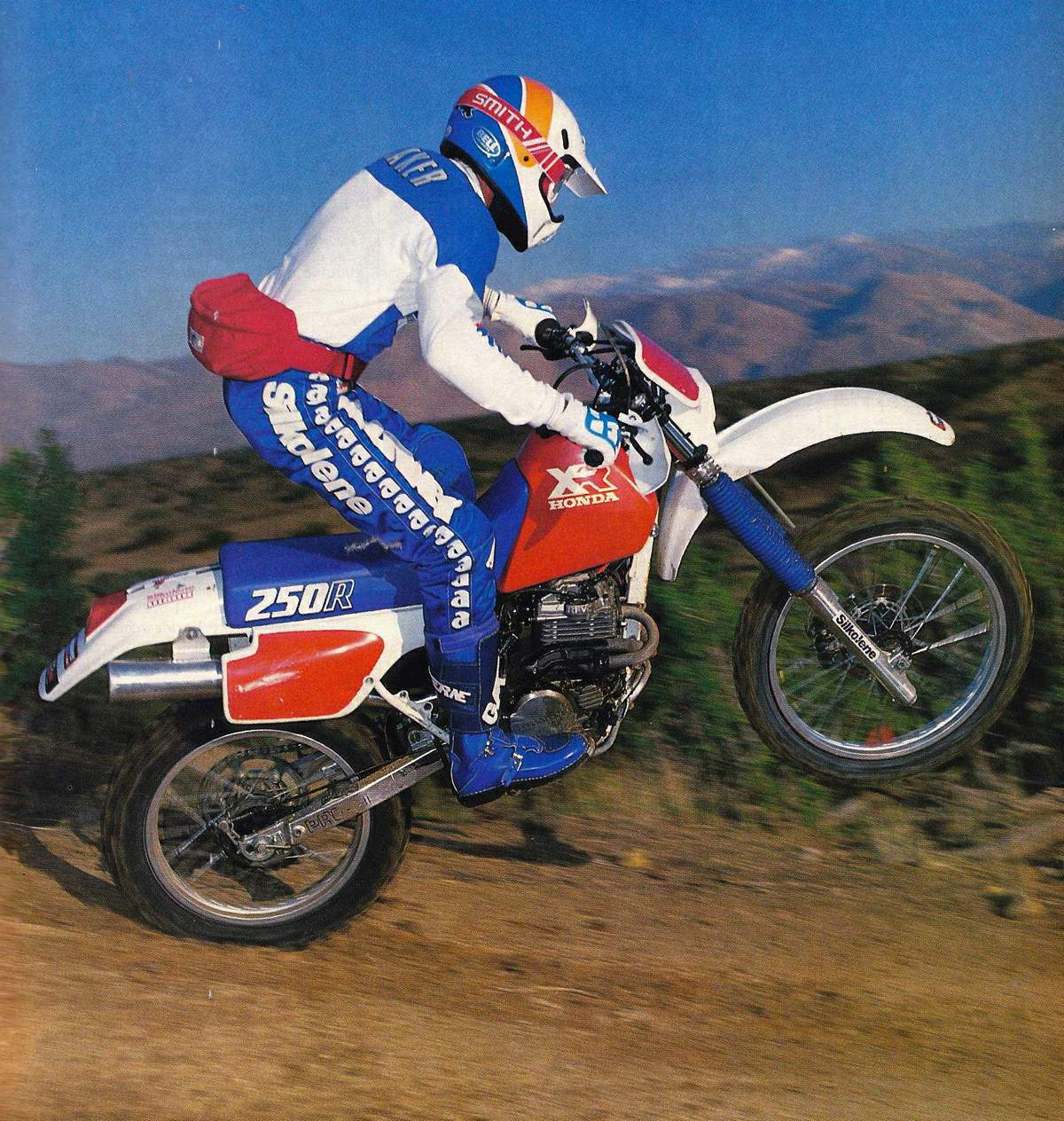

With all the new tricks that adorned the '86 XR250, our expectations were high. After we performed our cures on the forks and did our best with the rebound damping, we lit out on the trail.
As anyone can attest, going from two-strokes to four-strokes requires an adjustment. The instant snap of the two-stroke mill is replaced by the mellow thump of the four-stroke. But, if you give the four-stroke 250 half a chance, the bike grows on you. The broad powerband is just that—long and broad. We couldn't find a hill the XR wasn't capable of climbing, no matter how steep.

During the course of one of our rides, a rather monstrous precipice was attempted by our group which consisted of one Open two-stroke, one competition two-stroke enduro 250, and the XR. The Open bike conquered the hill with sheer brute power, and the two-stroke 250 slithered and squirmed and finally cleared the hill. Next was the XR, which chugged its way to the top without a snivel.
On fast, wide-open terrain the XR holds its own nicely. Whether it's high-speed sweepers or dancing through the rocks, the XR gets with the program and actually gains time on the faster two-strokes.
The action of the clutch and tranny is flawless, but an inconsistent starting pattern had us confused. Sometimes she would fire on the first kick, and at other times it would require half a dozen. Another complaint is the low footpeg height. More than once we had our feet repositioned by the shrubs on the desert floor. Soon we altered our style to the toes-up position.

ALL IN ALL

Honda's mission in building the XR250 was a tough chore: Make a competitive, fairly lightweight four-stroke with advanced suspension and make it fast. They designed it for the Eastern enduro rider, and it will make the East Coast pilot mighty happy. But the desert destroyers and Western bark busters will be lining up to bag one of these new XRs as well, and the sound of the 250 off-road class might never be the same. □

Source  Dirt Bike Rider 1986
