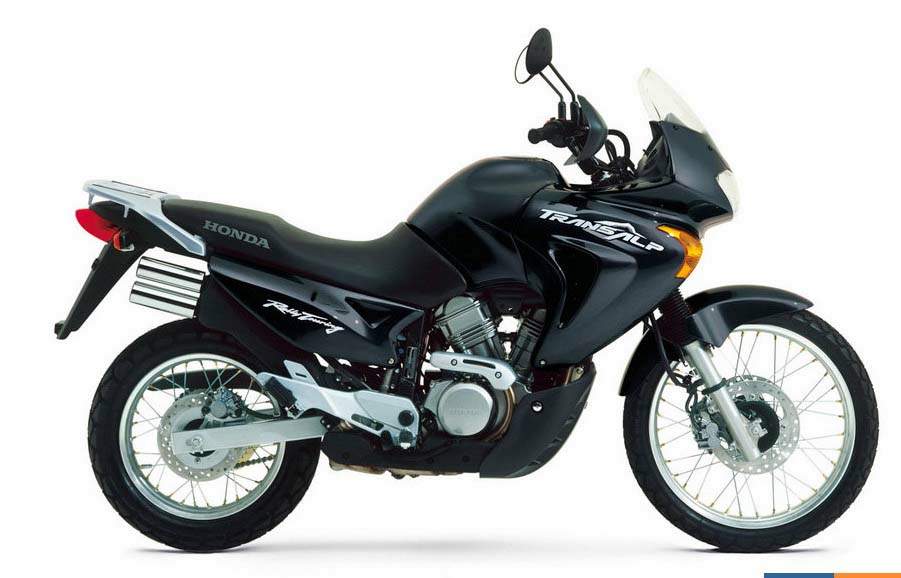

 Honda XL 650V Transalp

.

Make Model

Honda XL 650V Transalp

Year

2006 - 07

Engine

Four stroke, 52° V-Twin, SOHC, 3 valves per cylinder

Capacity

647 cc / 39.4 cu-in
Bore x Stroke 79 x 66 mm
Cooling System Liquid cooled
Compression Ratio 9.2:1

Induction

2x 34 mm slanted flat-slide CV-type

Ignition

Digital transistorized with electronic advance
Starting Electric

Max Power

52 hp / 39 kW @ 7500 rpm

Max Torque

54 Nm / 40 lb-ft @ 5500 rpm

Transmission

5 Speed
Final Drive Chain
Frame Semi-double-cradle; box-section steel tube

Front Suspension

41 mm leading-axle telescopic fork
Front Wheel Travel 220 mm / 8.6 in

Rear Suspension

Pro-Link with adjustable compression damping
Rear Wheel Travel 172 mm / 6.8 in

Front Brakes

2x 256 mm discs 2 piston calipers

Rear Brakes

Single 240 mm disc 1 piston caliper

Front Tyre

90/90-21

Rear Tyre

120/90-17
Dimensions Length 2260 mm / 89 in
Width    920 mm / 36.2 in
Height 1315 mm / 51.8 in
Wheelbase 1505 mm / 59.3 in
Seat Height 843 mm / 33.1 in
Ground Clearance 192 mm / 7.6 in

Dry Weight

191 kg / 421.1 lbs
Wet-Weight 210 kg / 463 lbs

Fuel Capacity

19 Litres / 5.0 US gal

Consumption Average

19.4 km/lit

Standing ¼ Mile

13.4 sec

Top Speed

170 km/h / 105.6 mph
.

Designed to offer a uniquely European riding experience, the famous Transalp provides a balance of fun and adventure in a compact, easy handling package of performance. Its fully integrated bodywork and intelligently conceived accommodations provide a remarkably high level of day-to-day riding and touring comfort. And with a long-travel suspension to smooth out the rough spots, its hard-working 647cc liquid-cooled V-twin engine provides ample power to explore the upper reaches of mountain passes with the same ease and confidence it shows covering long distances on the highways. If your search for riding fun sometimes takes you off the beaten path, then the long-legged Transalp might be just the bike you need to get you where you want to go.



Giving stronger emphasis to the Transalp's sporty and adventurous nature, the new 2005/07 model features new detailing touches that really catch the eye. One of the first changes to be noticed is the new black alumite finish gracing its lightweight aluminium wheel rims. Sharing the same colour shade and semi-gloss finish as the dual-sport tyres they mount, these new rims project a tougher image that perfectly complements the Transalp's new colours.

Providing another detailed accent on this aggressive new black image, the inner rotor of the Transalp's rear disc brake has also been painted with a new matte black finish to match the front wheel hub and the black of the new rims, for a contribution to the bike's overall sense of functional good looks.Another attractive new design touch can be seen in the Transalp's new stainless steel dual exhaust ends. Tapering at the ends like air jets, these decorative new pieces also extend a more exhilarating tone to the Transalp's exhaust note.
