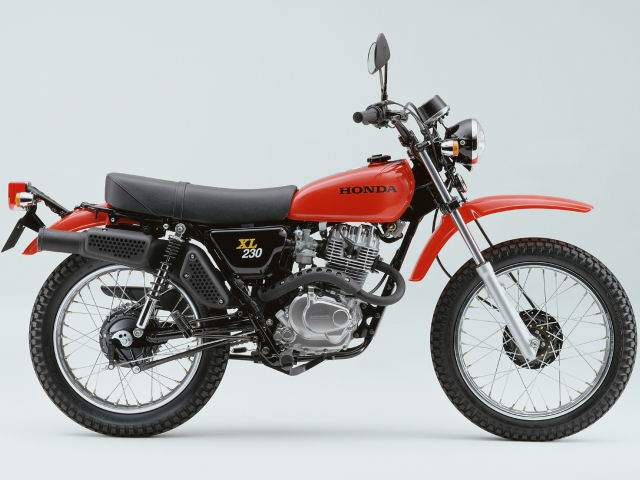

Honda XL 230

.

Make Model

Honda XL 230

Year

2002

Engine

Four stroke, single-cylinder

Capacity

223 cc
Bore x Stroke 65.5 × 66.2 mm
Cooling System Air cooled
Compression Ratio 9.0:1
Lubrication  Dry-sump

Induction

VE3AE

Ignition

CDI
Starting

Max Power

18 hp / 13.4 kW @ 7500 rpm

Max Torque

1.9 kgf-m @ 6000 rpm
Clutch Wet-type, Multi-plate coil spring

Transmission

6 Speed
Final Drive Chain
Gear Tatio 1st 2.769 2nd 1.722 3rd 1.263 4th 0.960 5th 0.814

Front Suspension

Telescopic forks

Rear Suspension

Swinging arm

Front Brakes

Drum

Rear Brakes

Drum

Front Tyre

2.75 -21

Rear Tyre

120/80-18
Dimensions Length 2025 mm / 79.7 in
Width 835 mm / 32.7 in
Height 1115 mm / 43.8 in
Wheelbase 1305 mm  / 54.9 in
Seat Height 800 mm / 31.4 in
Ground Clearance 225 mm / 8.8 in
Dry Weight 113 kg / 249 kg

Wet Weight

120 kg / 264 kg

Fuel Capacity

8.7 Litres / 2.3 US gal
.

Honda Motor Co., Ltd. has announced the release of the new XL230 sports bike, an easy-handling motorcycle featuring a vintage off-road look and a water-cooled, 4-stroke OHC single-cylinder 230cc engine. Versatile enough to be used both around town and on longer trips, the XL230 goes on sale throughout Japan April 10th.

The design features a slender, smallish fuel tank reminiscent of those employed on the Elsinore MT250 off-road bike released in 1973 and the XL125 released in 1975, in addition to a round halogen headlight and a speedometer with a navy blue number plate for superior readability. The center up-swept muffler, which extends behind the engine and through the rear suspension, emphasizes the bike's slim design. Other touches, including tires with a block-pattern tread for a racing feel, further enhance the bike's overall vintage image, creating a fresh, approachable design that will appeal to younger riders in their late teens and twenties.

The engine is tuned to deliver superior low-to-midrange response, for nimble performance both around town and on longer trips, and power to spare even with a passenger on board.

The XL230 comes complete with an anti-theft system featuring a reinforced handlebar lock, reinforced key cylinder, anti-hotwiring circuit, and alarm kit compatibility (alarm kit, manufactured by Honda Access, sold separately).

Two body colors are available:

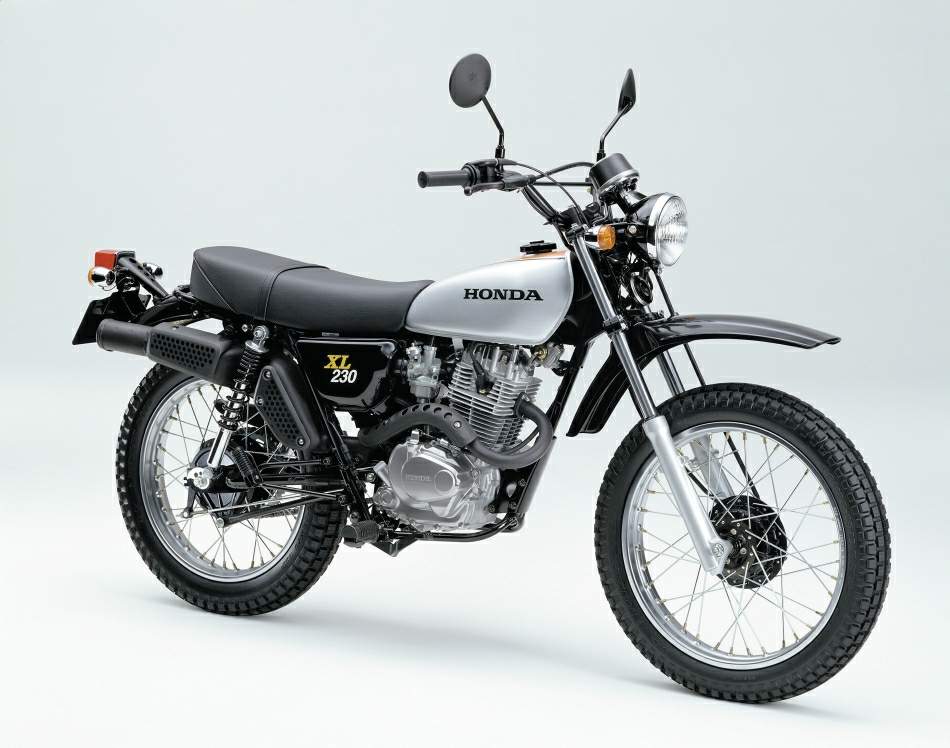

Boon Silver Metallic (with orange stripe design on upper surface of fuel tank)
Fighting Red (with black stripe design on upper surface of fuel tank)
