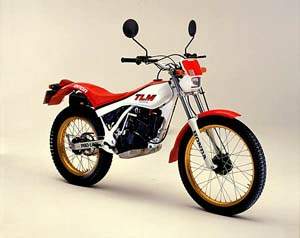

Honda TLM 200R

.

Make Model

Honda TLM 200R Reflex

Year

1986

Engine

Four-stroke, single cylinder SOHC, 2 valve

Capacity

195 cc / 11.9 cu-in
Bore x Stroke 65.5 x 57.8 mm
Cooling System Air cooled
Compression Ratio 7.2:1

Induction

Single 26mm Keihin carb

Ignition

CDI
Starting Kick

Max Power

13 hp / 9.6 kW @  5000 rpm

Max Torque

1.9 kgf-m @  4000 rpm

Transmission

6 Speed
Final Drive Chain

Front Suspension

Telescopic forks

Rear Suspension

Swinging arm

Front Brakes

Drum

Rear Brakes

Drum

Front Tyre

2.75-21

Rear Tyre

4.00-18

Wet Weight

89 kg / 196 lbs

Fuel Capacity

6 Litres / 1.58 US gal
.

The Honda Reflex (TLR200) is a dual purpose trials motorcycle sold through 1986 to 1987. Both year models are exactly the same. 1987 models were left over bikes from 1986, re-badged as 1987 models.

The Honda Reflex used an XR200 engine in a different frame. This engine was also used in a three-wheeler made by Honda.

The Reflex also has the tight turning radii typical of trials motorcycles. Its steering column can almost turn completely perpendicular to the bike's frame. It's designed to be a stand up motorcycle, though it does have a seat and lights for road use. With light sprocket modifications it is a functional bike for motorcycle trials.
