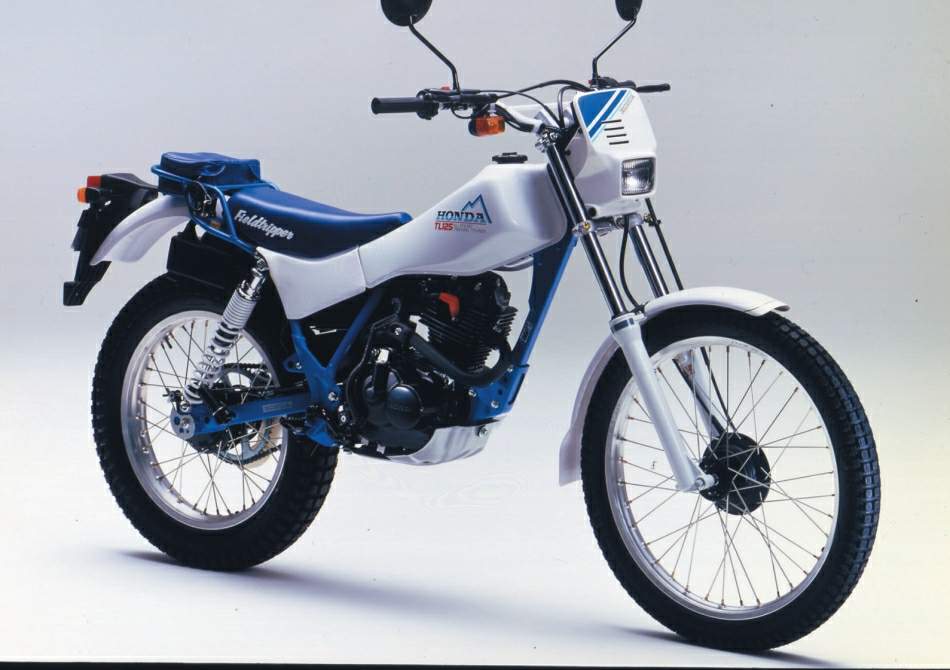

Honda TL 125

.

Make Model

Honda TL 125

Year

1988 -

Engine

Four stroke, single cylinder, OHC, 2 valve

Capacity

123 cc / 7.57 cu-in
Bore x Stroke  56,0 X 49,5 mm
Cooling System Air cooled
Compression Ratio 8.0;1

Induction

Mikuni VN24SH

Ignition

Flywheel magneto
Starting Kick

Max Power

9.3 hp / 6.6 kW @ 8000 rpm

Max Torque

9 kgf-m @ 4500 rpm
Clutch Wet, multi-plate

Transmission

5 speed, constant mesh
Final Drive Chain
Frame Steel tubular frame 88 Kg weight 2.75-21 and 4.00-18 tires

Front Suspension

Oil telescopic forks

Rear Suspension

Swinging arm oil shocks 5-way preload adjustable.

Front Brakes

Drum

Rear Brakes

Drum

Front Tyre

2.75-21

Rear Tyre

4.10-18
Wet Weight 106.0 kg / 233.7 lbs

Fuel Capacity

4.5 Litres / 1.2 US gal
.

At the end of 1972, Honda launched the TL125, known in Japan as the name of BIALS.
Engine used for it was the 121,9cc (54 X 49,5mm) two valve sohc from the Honda SL125 model, lowering its compression from 9:5 to 8:1
Little Honda Tl 125 was very popular, Honda had big success in the US, Japan and Europe.

The TL 125 first in 1973 and the TL 250 in 1975 were the first production Honda Trials motorbikes. The begining of the nice and amazing history of this brand on Trials line narrated here at this webpage: The Honda Trials History.

In 1973 three Japanese riders took place at SSDT with the little TL 125, Nishiyama, Narita and Mazawa.

Peter Gaunt was one of the first UK engineers who in developed a transformation using a Honda bike as a base. The bike was sold under the Jefferies Honda name, this is because Jefferies bikes, located at Shipley, Yorkshire, was the dealer.
Honda seriously began on the Trials Bike competition in 1974 with one of the most important persons on the Honda Trial Bikes History: Sammy Miller. He was a key person on the Honda Team, as a rider, as a bike development and as a strategist.

The Honda TL 125 had a lot of series, for sure the most successful Honda trials.
From 1972 to 1988 little Honda TL125 had basically two series: The Japan Bials series and the US TL series:

Honda TL125 US Model Series

1973 Honda TL125 K0 (US model)

1974 Honda TL125 K1 (US model)

1975 Honda TL125 K2 (US model)

1976 Honda TL125 S (EU model)
