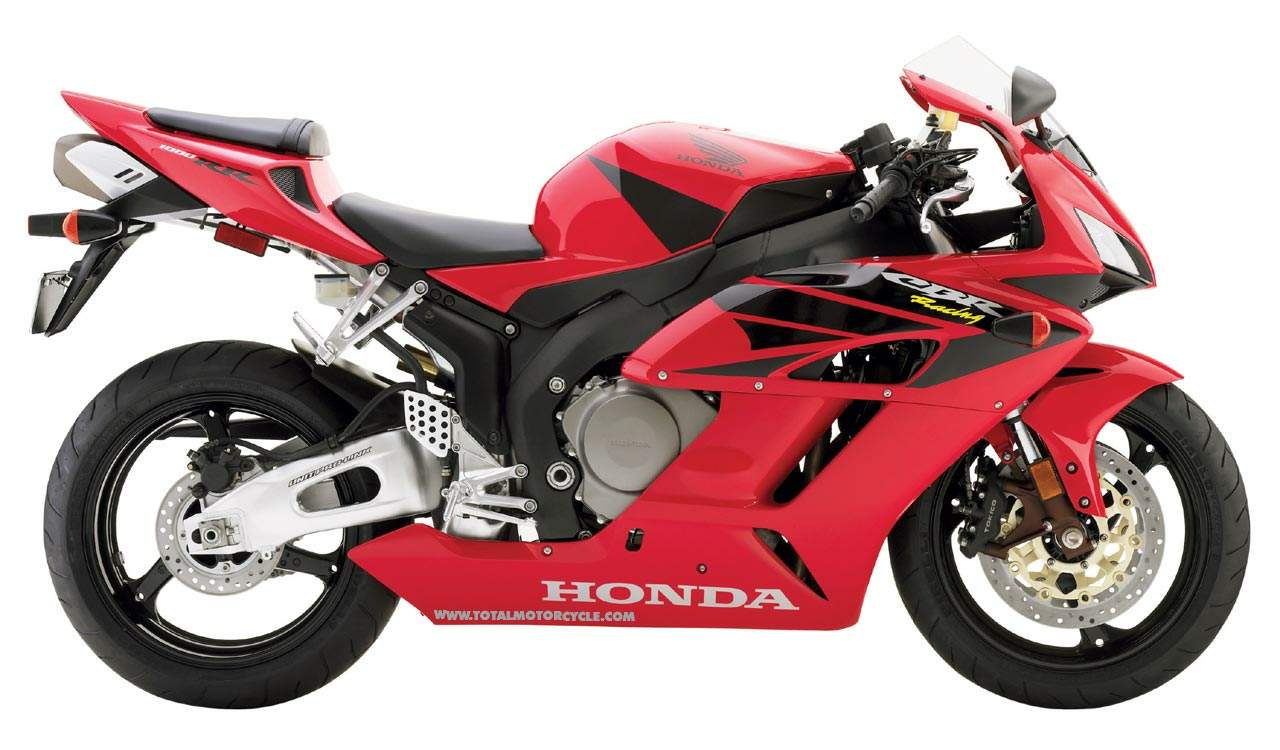

Honda CBR 1000RR Fireblade

.

Make Model

Honda CBR 1000RR Fireblade

Year

2005

Engine

Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.

Capacity

998 cc / 60.9 cu-in
Bore x Stroke 75 x 56.5 mm
Compression Ratio 11.9:1
Cooling System Liquid cooled
Lubrication Wet sump
Engine Oil Synthetic, 10W/40

Induction

PGM-DSFI electronic fuel injection. 44mm Throttle Bore

Ignition

Computer-controlled digital transistorized with electronic advance
Spark Plug NGK, IMR9C-9HES
Starting Electric

Max Power

126,4 kW / 172 hp @  11250 rpm

Max Torque

115 Nm / 11.73 kg-m  @ 10000 rpm

Transmission

6 Speed
Final Drive Chain
Frame Aluminium, twin spar

Front Suspension

43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability;
Front Wheel Travel 120 mm  / 4.3 in

Rear Suspension

Pro-Link single shock with spring preload, rebound and compression damping adjustability;
Rear Wheel Travel 135 mm / 5.4 in

Front Brakes

2x 310mm discs 4 piston calipers

Rear Brakes

Single 220mm disc 1 piston calliper

Front Tyre

120/70 ZR17

Rear Tyre

190/50 ZR17
Rake (Caster Angle) 23.3°
Trail  102 mm / 4.5 in
Dimensions

Length 2025 mm / 79.7 in

Width  720 mm  / 26.9 in

Height 1120 mm / 44.0 in

Wheelbase 1407 mm / 55.4 in
Seat Height 828 mm / 32.3 in
Ground Clearance 130 mm / 5.1 in

Dry Weight

179 kg / 394.6 lbs

Wet Weight

205 kg / 450 lbs

Fuel Capacity

18 Litres / 4.8 gal

Consumption Average

16.9 km/lit

Standing ¼ Mile

10.4 sec

Top Speed

284.3 km/h / 176.6 mph
.

Features & Benefits

  • All-new liquid-cooled 998cc inline four-cylinder engine.

  • All-new aluminum frame patterned after RC211V MotoGP

  • Honda Electronic Steering Damper(tm) HESD for optimum steering effort and stability.

  • Cassette-type close-ratio six-speed transmission.

  • Centrally located fuel tank increases mass centralization and allows more compact frame design.

  • Radial-mounted front brakes.

  • New-style center-up exhaust system.

  • Unit Pro-Link(r) rear suspension and swingarm design inspired by RC211V.

  • New Line Beam Headlight features three-piece reflector design.

  • Dual Stage Fuel Injection System (DSFI) features two injectors per cylinder.

Engine/Drivetrain

  • All-new liquid-cooled DOHC 16-valve 998cc four-stroke inline four-cylinder engine features bore and stroke dimensions of 75mm x 56.5mm.

  • Sixteen-valve cylinder head features 29mm intake and 24mm exhaust valves with an 11.9:1 compression ratio for efficient combustion and high horsepower.

  • Lightweight nutless connecting rods.

  • Direct shim-under-bucket valve actuation system ensures high-rpm durability and allows 16,000-mile valve maintenance intervals.

  • New iridium-tip spark plugs improve fuel combustion and performance.

  • Dual Stage Fuel Injection (DSFI) system features two injectors per cylinder--one upper and one lower--controlled by an ECU that senses rpm and throttle opening. Lower injector enhances rideability while upper injector improves top-end horsepower. At lower rpm only the lower injector is working. At higher rpm, both injectors are activated. The system uses 44mm throttle bodies.

  • All-new Denso injectors with new lightweight valving for faster reaction time and 12 holes per injector improve atomization of fuel mixture for optimum combustion efficiency and power.

  • Auto-enriching system is integrated into PGM-FI module, eliminating the need for a manual choke.

  • Forged aluminum pistons with moly surface treatment for reduced friction.

  • Aluminum composite cylinder sleeves are high-pressure-formed from sintered aluminum powder impregnated with ceramic and graphite. The lightweight composite sleeves provide better wear resistance and superior heat dissipation compared to conventional sleeves.

  • Electronic ECU provides two digital 3-D fuel injection maps for each cylinder and two digital 3-D ignition maps for cylinder pairs, creating ideal fuel mixture and spark advance settings for superb rideability.

  • Ram-air system provides a high volume of cool air to the 8.35-liter airbox for linear power delivery and incredible engine performance.

  • Stainless steel four-into-two-into-one center-up exhaust with twin outlets and titanium core increases lean angle and reduces wind drag.

  • Liquid-cooled aluminum oil cooler is lightweight and efficient.

  • Maintenance-free automatic cam-chain tensioner.

  • Starter gears located on the right side to produce narrow engine and increased lean angle.

  • Race-spec radiator with 40 percent greater volume compared to CBR(r)954RR

  • Eight-plate clutch is compact and tough, featuring durable friction plate material.

  • Cassette-type, close-ratio six-speed transmission is easily accessible for rapid gear ratio changes and maintenance at the race track.

  • Durable #530 O-ring-sealed drive chain.

SUSPENSION

  • New lightweight twin-spar aluminum frame borrows RC211V technology.

  • New aluminum-hybrid rear swingarm is longest in class for superior traction under hard acceleration.

  • New aluminum subframe is lightweight and easily removable for ease of maintenance.

  • Honda Electronic Steering Damper (HESD) is a rotary type steering damper that electronically modulates steering damping based on road speed. An ECU unit senses road speed and sends a signal to a solenoid. The solenoid controls an oil pressure relief valve within the damper unit. At slower speeds the relief valve is open, allowing for a free flow of oil through the damper unit, resulting in reduced damping force and lighter steering effort. At higher speeds the flow of oil is restricted, resulting in increased damping force and additional stability. HESD is the first steering damping system that makes it possible to increase high-speed performance while maintaining low-speed handling.

  • 43mm inverted aluminum-slider Honda Multi-Action System(tm) (HMAS(tm)) cartridge front fork features spring preload, rebound and compression damping adjustability, and offers precise action and unparalleled rigidity.

  • New Unit Pro-Link rear suspension system is patterned after RC211V MotoGP racer's. In this system, the upper shock mount is contained within the swingarm rather than the frame. With no top frame-mount for the shock, this unique system prevents negative suspension energy from being transmitted into the frame, allowing optimum frame rigidity and improved rideability out of corners. The HMAS shock offers rebound and compression damping, and spring preload adjustability.

  • New front brake system features radial-mounted four-piston calipers and 310mm floating discs, and a 220mm rear disc with a single-piston caliper for exceptional stopping power.

  • Super-light aluminum-alloy hollow-spoke wheels feature race-spec 3.5 x 17-inch front and 6.0 x 17-inch rear dimensions.

  • Centrally mounted 4.8-gallon fuel tank is positioned low in the frame, increasing mass centralization and allowing a more compact design. This design positions the rider farther forward for optimum handling.

Additional Features

  • High-capacity, 350-watt AC generator.

  • High-tech instrument display features tachometer, LCD readouts for speedometer, coolant temperature, odometer, two tripmeters and a clock. A low-fuel LED light and shift indicator light is located in the tachometer.

  • Line Beam Headlight features three-piece reflector design utilizing two H7 bulbs for optimum light distribution and unique compact design.

  • All-new LED taillights for improved appearance.

  • New plastic tank shell cover protects tank and airbox.

  • New one-piece fan assembly increases cooling efficiency.

  • Convenient ignition switch/fork lock for added security.

  • Folding aerodynamic mirrors.

  • Handlebar switches and controls use internationally approved ISO graphic symbols.

  • Convenient push-to-cancel turn signal switch.

  • Maintenance-free battery.

  • Transferable one-year, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
