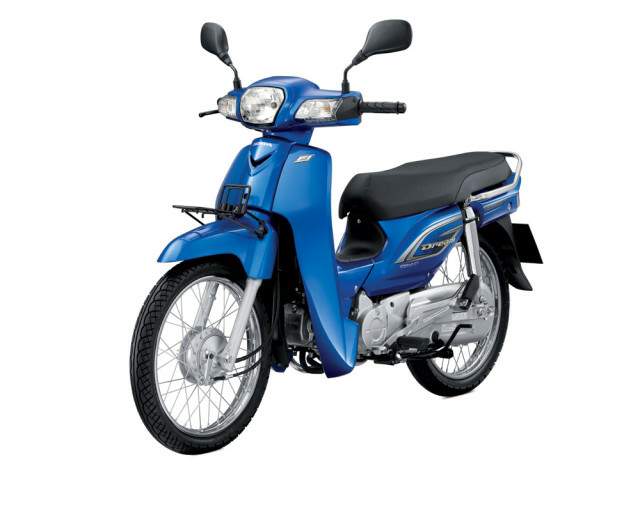

Honda C110i Dream

  .

Make Model

Honda C110i Dream

Year

2011 -

Engine

Four stroke, single cylinder, OHC

Capacity

109.1 cc / 6.7 cu in

Bore x Stroke

50 x 55.6 mm

Cooling System

Air cooled

Compression Ratio

9.0:1

Exhaust

One-into one

Induction

PGM-FI

Ignition

CDI

Starting

Electric and kick

Max Power

6.0 kW / 8.0 hp @ 7500 rpm

Max Torque

8.4 Nm / 0.86 kgf-m / 6.2 lb-ft @ 5500 rpm

Clutch

Wet, semi-automatic

Transmission

4-Speed

Final Drive

Belt

Frame

Pressed steel underbone

Rake

26.5°

Trail

75 mm / 3.0 in

Front Suspension

Telescopic fork

Rear Suspension

Swing arm

Front Brakes

Expanding drum, 110 mm Ø

Rear Brakes

Expanding drum, 110 mm Ø

Wheels

Steel, laced wire spokes

Front Wheel

2.25 x 17 in

Rear Wheel

2.75 x 17 in

Front Tyre

70/90-17 M/C 38P

Rear Tyre

80/90-17 M/C 50P

Dimensions

Length: 1915 mm / 75.4 in

Width:     696 mm / 27.4 in

Height   1052 mm / 41.4 in

Wheelbase

1212 mm / 47.7 in

Seat Height

745 mm / 29.3 in

Dry Weight

99 kg / 218 lbs

Fuel Capacity

4.3 Litres / 1.1 US gal

Fuel Consumption (claimed)

1.75 L/100 km / 57 km/l / 134 US mpg

  .

The design of this New Dream 110i tells us that Honda engineers still able to revive their popular cub, the Dream a.k.a EX5 in Malaysia, to the new futuristic design along with new technology such the advanced programmed fuel injection system, the PGM-FI which is proprietary for Honda.

It features multi hole nozzle injector for better fuel mix to provides precise and cleaner combustion. Other than that, it can provide great mileage for a very little of fuel. In this case, New Dream 110i are able to get 57km/liter

The design really takes the cue from the previous version of Honda EX5 Dream. I can feel the aura strongly about it even it came with so many improvements. The key system are now equipped with shutter to prevent theft which is the usual concern of owners. It gets new meter panel with new colours and new design. Much more hexagonal look than the previous one that look more squarish. Headlamp are also upgraded with new design along with the tail light that are now much modern and cleaner. One special thing about bikes in Thailand is that it came with front basket that is placed just above the front mudguard.





The Honda New Dream 110i comes in 4 colour to choose from that is red, green, blue and black. All colour are good with this bike, which one you choose will be a great choice (if it came to Malaysia).

Conclusion? This is the great improvement over the classic interpretation of modern ‘People Mover’.
