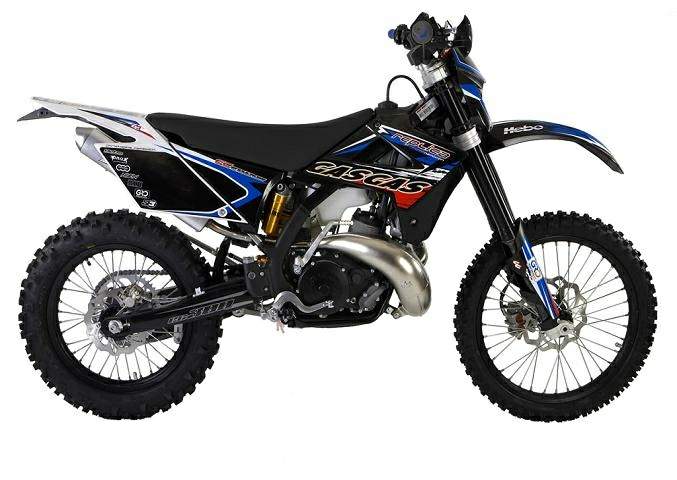

Gas Gas EC 300 Nambotin R replica

.

Make Model

Gas Gas EC 300 Nambotin Replica

Year

2009

Engine

Two stroke, single cylinder

Capacity

294 cc / 17.9 cu-in
Bore x Stroke 72 x 72 mm
Cooling System Liquid cooled
Lubrication 2% mixture

Induction

38mm Keihin PWK carburetor

Ignition

Kokusan digital CDI
Starting Kick

Max Power

50 hp / 37.2 kW  @ 7340 rpm

Max Torque

49 Nm / 26.1 lb-ft @ 6890 rpm
Clutch Hydraulic multidisc.

Transmission

6 Speed
Final Drive Chain
Frame Deltabox type built using cromoly, rectangular tubes, aluminum swingarm

Front Suspension

45mm Upside-down Marzocchi fork
Front Wheel Travel 295 mm / 11.6 in

Rear Suspension

Progressive system with Öhlins shock absorber
Rear Wheel Travel 310 mm / 12.2 in

Front Brakes

Single 260mm disc 1 piston caliper

Rear Brakes

Single 220mm disc 1 piston caliper

Front Tyre

90/90 -21

Rear Tyre

140/80 -18
Wheelbase 1476 mm / 58.1 in
Seat Height 940 mm / 37.0 in
Ground Clearance 340 mm / 13.4 in

Dry Weight

103 kg / 227 lbs

Fuel Capacity

9.5 Litres / 2.5 US gal

After the impressive success of 2008 in the E3 category, Gas Gas has decided to dedicate a replica version of the EC 300 to rider, Christophe Nambotin.

The main characteristics of the bike include Nambotin Replica graphics, front Sachs fork, rear Öhlins 888 shock absorber, FMF muffler and Galfer Wave Racing brakes (front and rear). The chassis has also been redesigned with stronger but lighter alloy features.
