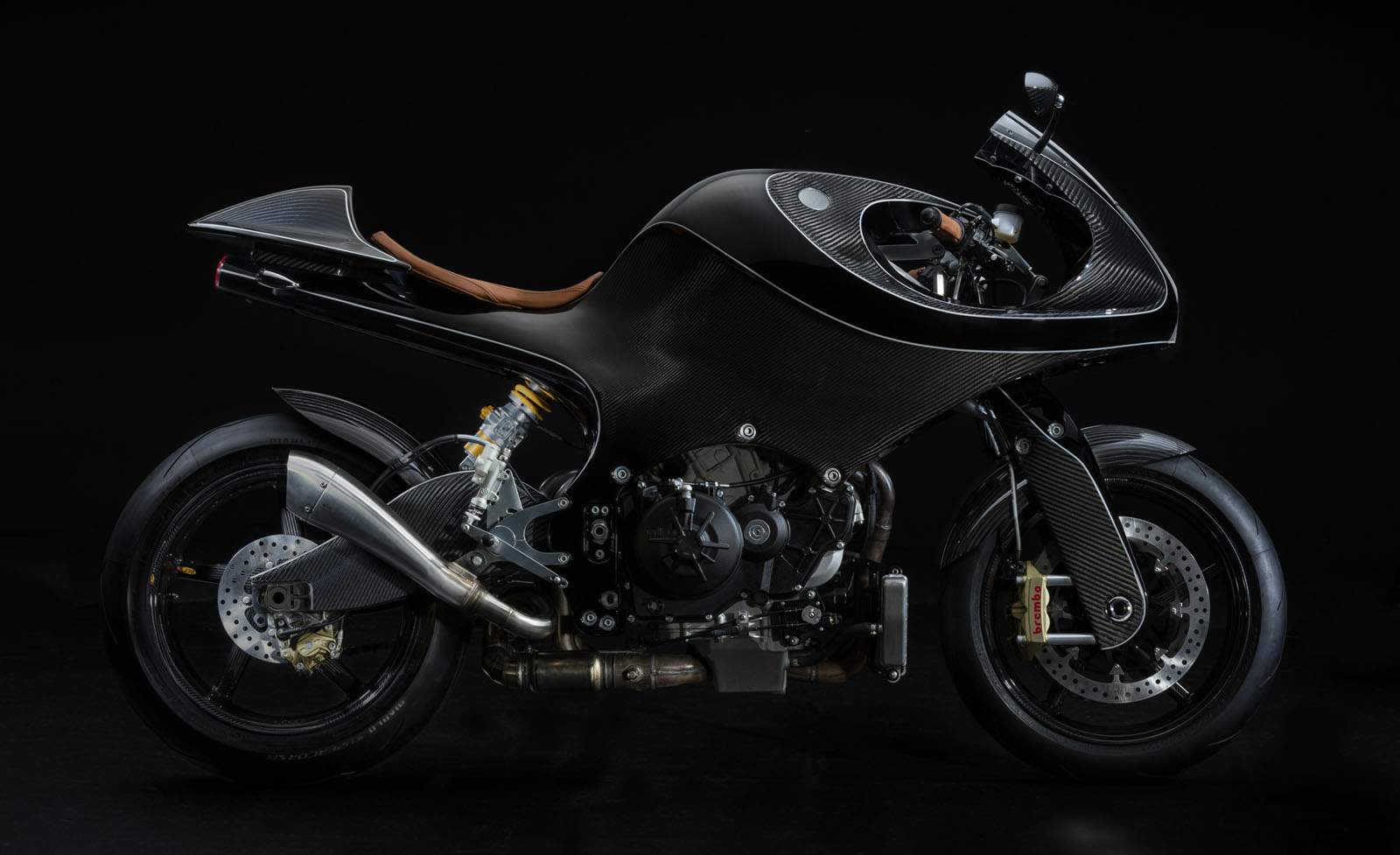

VanderHeide Motorcycle

Based in The Netherlands, Brothers Rolf and Sjors van der Heide have created an Art Deco-style motorcycle that's crafted out of carbonfibre.

"Rolf dreamed of creating his own motorcycle as long as he can remember. He has been involved with Spyker (Dutch supercar company) and Carver (a company that made a truly awesome three-wheeler road-rocket), and also specialises in carbonfibre composites engineering," says Sjors

Michiel van den Brink and Rolf van der Heide got  together and started to share this dream. In a few years time they designed a 'Gentleman's Racer' with a full carbon fiber one-piece monocoque frame around the 1000cc engine of the Aprilia RSV4 and an innovative new (patent pending) multi-link front suspension and steering system.
​

Specifications

CHASSIS – VanderHeide in-house engineered and handcrafted:

100% carbon fiber monocoque
100% carbon fiber swingarm
100% carbon fiber front forks
24 liters of fuel capacity in the monocoque chassis (no separate fuel tank)

SUSPENSION – VanderHeide in-house engineered – patent pending:

Front: Double Wishbone Linked with Öhlins TTX 36 inline damper
Rear: Öhlins TTX 36 inline damper
Front and rear dampers are positioned in line and in opposite direction in order to eliminate opposing forces.
This reduces stress on the monocoque chassis.
Front end: easy accessible rake angle adjuster (Allen key)

WEIGHT

Dry weight: 165kg (race configuration)
Dry weight: 175kg (street legal configuration)

ENGINE

Aprilia RSV4 65-degree V4, 999.6 cc, 201hp (150 kW) @ 13,000 rpm
Optional (race configuration): Aprilia RSV4 superbike engine, 230+hp (171 kW)
Top speed: 300+km/h (186+mph)

WHEELS

Front: 17” 5-spoke carbon fiber BlackStone Tek (BST) Black Star
Rear: 17” 5-spoke carbon fiber BlackStone Tek (BST) Black Star

TYRES

Front: 120/70-ZR17 Pirelli Diablo Supercorsa SC
Rear: 190/55-ZR17 Pirelli Diablo Supercorsa SC
Optional: Rear 200/55-ZR17

Source Heide website and ateliervandenbrink
