Beta RS 430

.

Make Model

Beta RS 430

Year

2015

Engine

Four stroke, single cylinder, 4 valve

Capacity

431 cc / 26.3 cu in
Bore x Stroke  95 x 60.8 mm
Cooling System Liquid cooled
Compression Ratio 11.95:1

Induction

Keihin FCR-MX, Ø 39 mm
Lubrication Twin oil pumps with cartridge oil filter. Separate oil for engine and clutch
Engine Oil Capacity 0.8 L / 0.2 US gal

Ignition

DC-CDI with variable ignition timing, Kokusan.
Electrical Trail Tech Voyager GPS unit.
Starting Electric & Kick
Spark Plug NGK LKAR8A-9
Clutch Wet multi-disc
Gearbox Oil Capacity 0.8 L / 0.2 US gal

Transmission

6 Speed
Final Drive O-ring chain, DID
Primary Ratio 31:73
Final Ratio 15:48
Frame Lighter Molybdenum steel with double cradle split above exhaust port. Quick Air filter access from the side

Front Suspension

Sachs USD fork, Ø 48 mm, adjustable compression and rebound, TFX technology
Front Wheel Travel 290 mm / 11.4 in

Rear Suspension

Aluminum body Sachs shock w/adjustable rebound and hi/low speed compression
Rear Wheel Travel 290 mm / 11.4 in

Front Brakes

Single Ø 260 mm disc, 2 piston caliper

Rear Brakes

Single Ø 240 mm disc, 1 piston caliper

Front Tyre

90/90 -21

Rear Tyre

140/80 -18
Wheelbase 1475 mm / 58.1 in
Ground Clearance 320 mm / 12.6 in
Footrest Height 413 mm / 16.25 in
Seat Height 930 mm / 36.6 in

Dry Weight

113 kg / 249 lbs

Fuel Capacity

7.9 L / 2.1 US gal

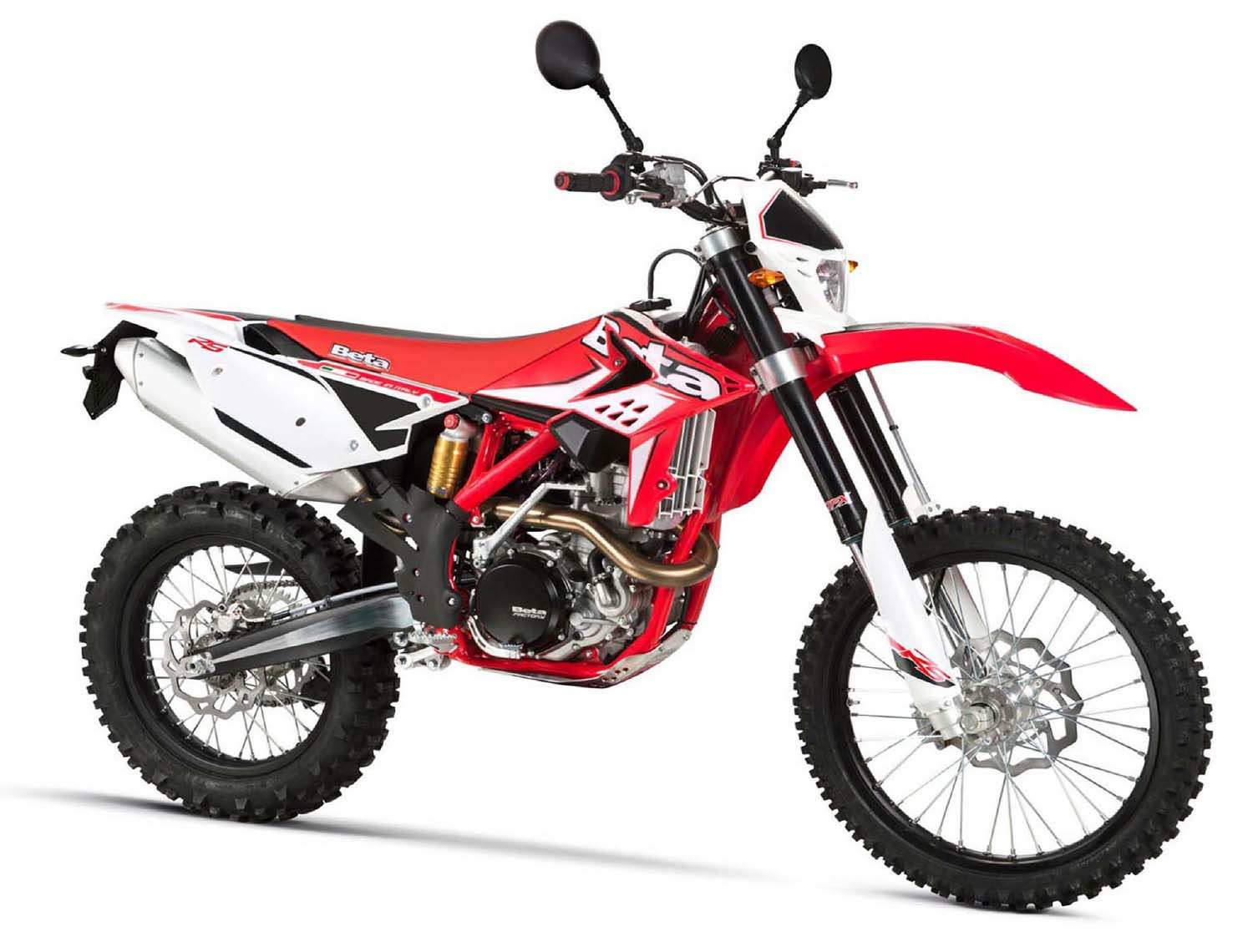

The Beta 430 RS is an unstoppable, street-legal off roader especially developed for the adventurous riders.

It comes with the same engine and suspension updates as the RR models, a newly designed seat, fresh graphics and a handlebar pad borrowed from the Race Edition.

Moreover, the motorcycle also features a Voyager GPS unit with maps, engine temp, outside temp, trip meter and much more.

Power comes from a Beta-built, 431 cc, single cylinder, 4-valve, 4-stroke, liquid cooled engine with Electric Start with back up kick starter and cooling fan kit. The engine’s power is kept under control by a six speed transmission with wet multi-disc clutch.

Some key features:

RR Inspired Graphics
Push-Button Seat Release
Beta-Built 4-Stroke with Electric Start
All-New Engines (2.2 lbs. lighter)
Tuck-Away Mirrors
Back-Up Kick Starter
Rear Suspension Linkage
Off-Road inspired D.O.T.Tires
Available in a 390, 430 and 500


Other features:

•50-State Street Legal
•Full-Featured Dual Sport
•Same Engine and Suspension Updates as the RR Models
•Voyager GPS unit with maps, engine temp, outside temp, trip meter, and much more
•Lightest Dual Sports on the Market
•Handlebar pad from Race Edition
•New design seat foam that is softer
•New graphics and color scheme based from the RR models
•More than 300 accessories available to “Make It Your Own”
