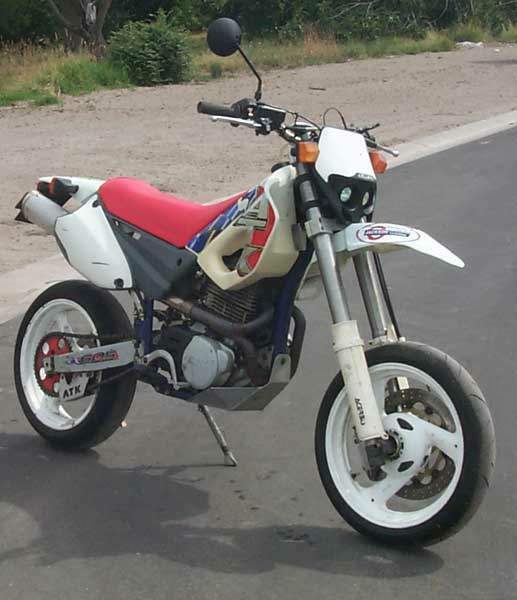

ATK 600 Dirt Track Motard

.

Make Model

ATK 600 Dirt Track Motard

Year

2003

Engine

Four stroke, single cylinder Rotax, DOHC, 4 valves

Capacity

598 cc / 36.5 cu in
Bore x Stroke 97 x 81 mm
Compression Ratio 9.5:1
Cooling System Air cooled
Exhaust Stainless steel, upswept under seat

Induction

40 mm Dell'Orto round-slide carburetor

Ignition

Electric, 190 W

Starting

Electric

Transmission

5 Speed

Final Drive

Chain

Frame

Large diameter tubing, perimeter-style frame, all aluminium rear sub-frame

Front Suspension

WP 40 mm inverter telescopic fork, fully adjustable for compression and rebound

Rear Suspension

Twin sided swingarm, mono shock

Front Brakes

Single 320 mm disc, 4-piston caliper

Rear Brakes

Single 220 mm disc, 2-piston caliper

Front Tyre

120/70-17

Rear Tyre

160/60-17

Wheelbase

1435 mm / 56.5 in

Seat Height

800 mm / 31.5 in

Dry-Weight

129 kg / 284 lbs

Fuel Capacity

16.5 Litres / 4.4 US gal



.
