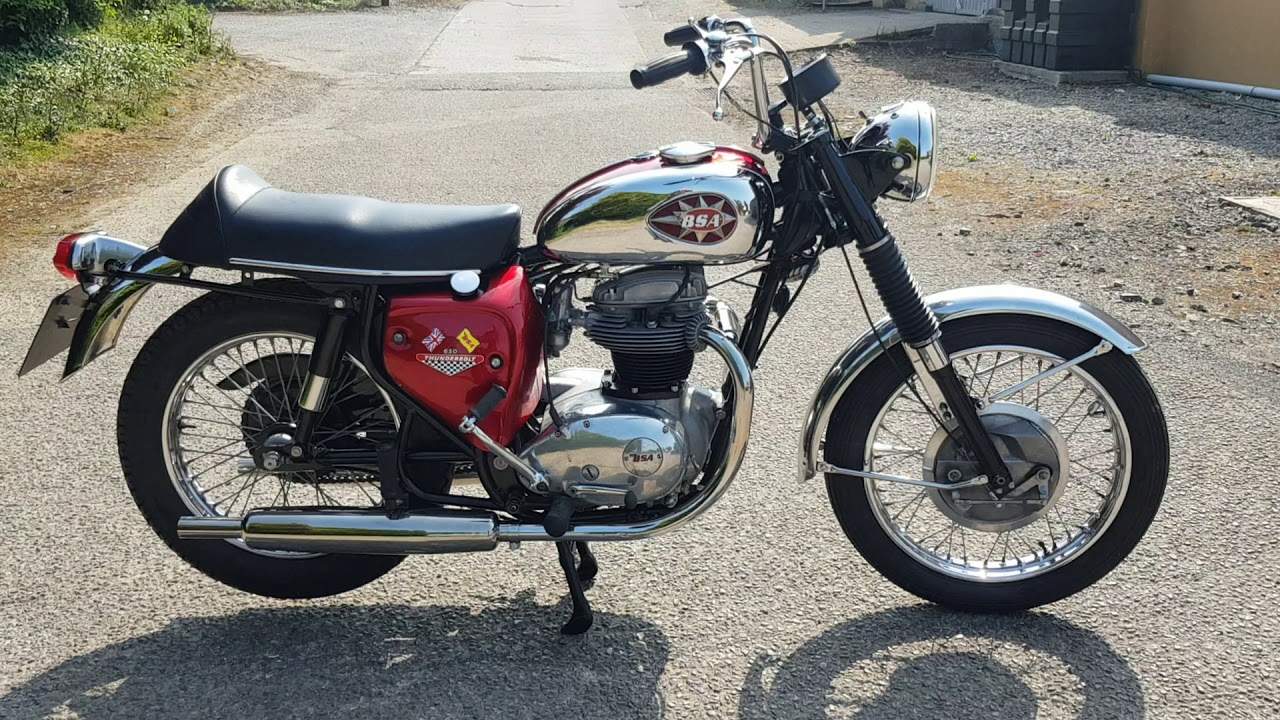

BSA A65 Lighting 650

Make Model	BSA A65 Lighting 650
Year	1971 -
Engine	Four stroke, parallel twin cylinder, OHV
Capacity	654 cc / 39.9 cu-in
Bore x Stroke	75 x 74 mm
Induction	2 x 30mm Amal concentric
Cooling System	Air cooled
Compression Ratio	9.0:1
Lubrication	Double gear pump , dry sump
Engine Oil	SAE 20W/50
Exhaust	2-into-1
Ignition	Battery coil
Spark Plug	Champion N4
Starting	Kick start
Max Power	38.7 kW / 52 hp @ 7000 rpm
Max Torque	52.8 Nm / 39 lb-ft @ 5750
Clutch	Multi-disc wet
Transmission	5 Speed
Final Drive	Chain
Frame	Steel tubing, cradle
Front Suspension	Telescopic forks with coil spring - hydraulically damped
Rear Suspension	Coil spring/hydraulically damped, swinging arm
Front Brakes	203 mm / 8 in, drum
Rear Brakes	178 mm / 7 in, drum
Wheels	Steel, wire spokes
Front Rim	WM2-18
Rear Rim	WM2-18
Front Tyre	3.25 x 19 in
Rear Tyre	4.00 x 18 in
Wheelbase	1435 mm / 56.5 in
Ground Clearance	171.4 mm / 6.75 in
Seat Height	825.5 mm / 32.5 in
Wet Weight	190.5 kg / 420 lbs
Fuel Capacity	11.4 Litres / 3 US gal
