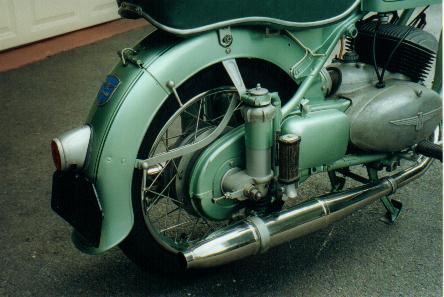

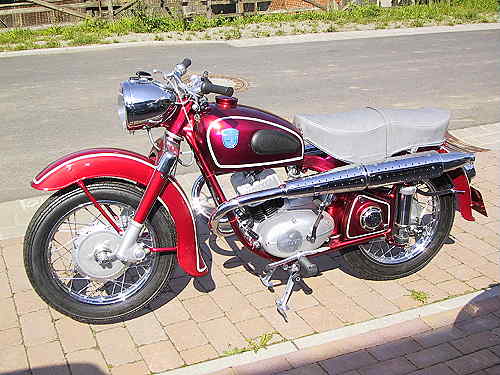

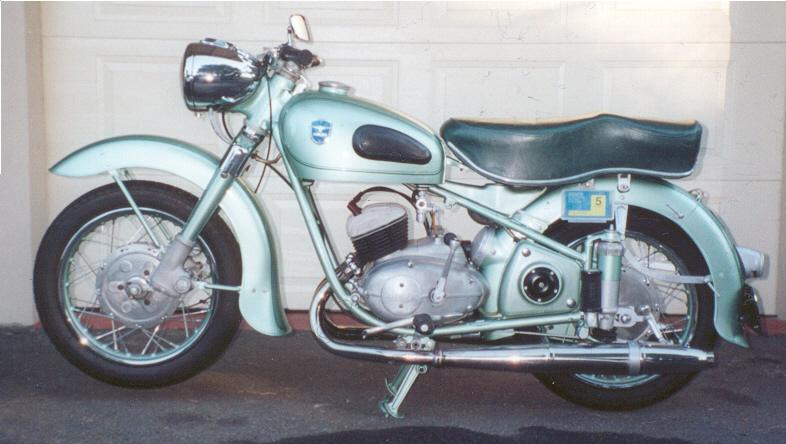

Adler MB 250

.

Make Model.

Adler MB 250

Year

1955

Engine

2 cylinder, 2 stroke, flat-crowned pistons

Capacity

247 cc / 15.1 cub in.

Bore x Stroke

54 x 54 mm

Cooling

Air cooled

Lubrication

Petrol oil mix 25:1

Clutch

Multi disc, wet

Starting

Kick start

Battery

6V, 6Ah

Ignition

6 V 45/60 W ignition set, battery and coil

Carburetor

Single Bing carburetor

Exhaust System

Twin, steel, chrome

Max Power

11.8 kW / 16 hp @ 5590 rpm

Compression Ratio

1: 5.75

Clutch

Multi disc in oil bath

Transmission

4 Speed gearbox housed in engine block, foot gearchange

Final Drive

Chain, fully enclosed

Frame

Double tubular frame with sidecar adapter.

Front suspension

Twin swinging leading link forks with shock absorber and steering damper

Rear suspension

Plunger shock absorbers, adjustable for load and road conditions

Tyres (front and back)

3.25 x 16 in.

Brakes (front and back)

Drums, 180 mm diameter

Dimensions

Length  1968 mm / 77.5 in.

Width      650 mm / 25.6 in.

Height     935 mm / 36.8 in.

Wheelbase

1257 mm / 49.5 in.

Dry Weight

135 kg / 298 lbs

Wet Weight

145 kg / 320 lbs

Fuel Capacity

12 L / 3.2 US gal

Reserve

3.8 L / 1 US gal

Average Consumption

3.6 l/100 km / 27.8 km/l / 65.3 US mpg

Top Speed

116 km/h / 72 mph
.
