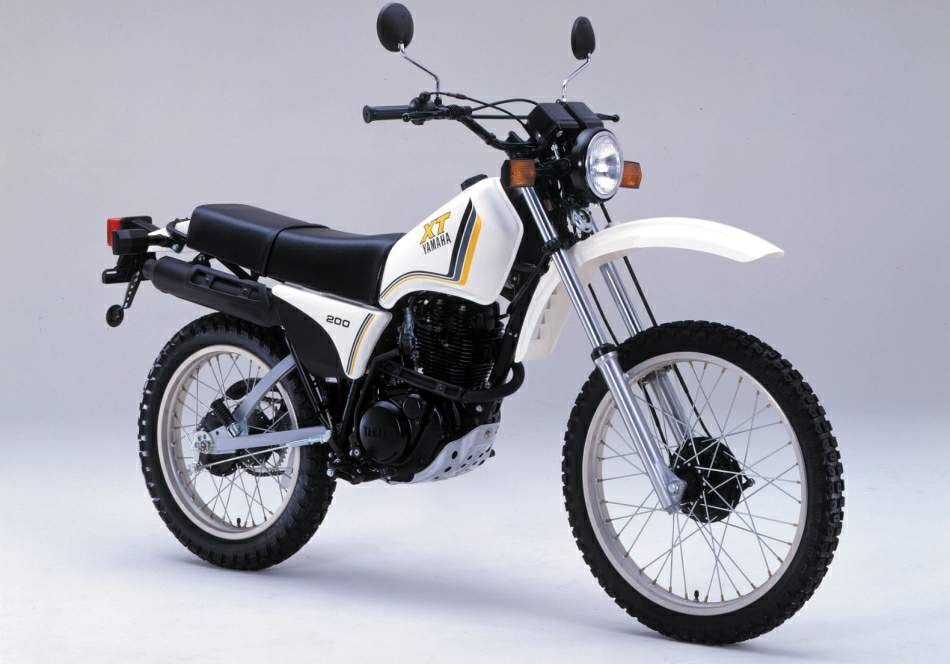

Yamaha XT 200







Make Model

Yamaha XT 200

Year

1980 - 83

Engine

Four stroke, single cylinder. SOHC, 2 valve

Capacity

196 cc / 12 cu-in
Bore x Stroke 67 х 55.7 mm
Cooling System Air cooled
Compression Ratio 9.5:1

Induction

Carburetor

Ignition

CDI
Starting Kick

Max Power

18 hp / 13 kW @ 8500 rpm

Max Torque

16 Nm / 12 lb-ft @ 8000 rpm

Transmission

5 Speed
Final Drive Chain

Front Suspension

Telescopic forks

Rear Suspension

Swing arm

Front Brakes

Drum

Rear Brakes

Drum

Front Tyre

2.75-21-4PR

Rear Tyre

4.10-18-4PR

Dry Weight

98 kg / 216 lbs

Fuel Capacity

8 Litres / 2.1 US gal
