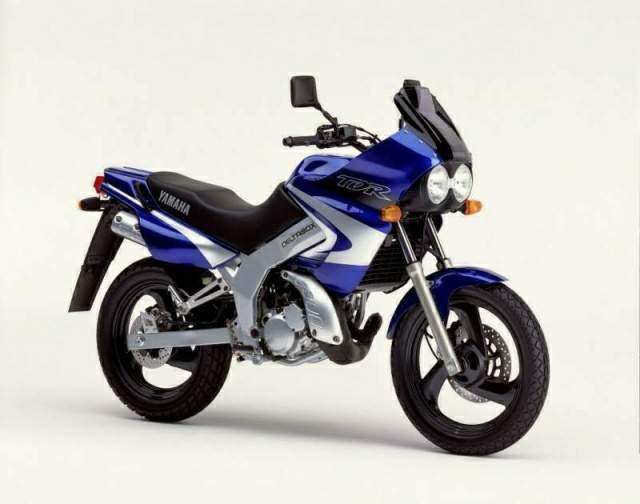

Yamaha TDR 125R







Make Model

Yamaha TDR 125R

Year

1993 - 95

Engine

Two stroke, single cylinder

Capacity

124 cc / 7.6 cu-in
Bore x Stroke 56 x 50.7 mm
Cooling System Liquid cooled
Compression Ratio 6.8:1

Induction

28mm Dell'Orto carburetor

Ignition

Electronic
Starting Electric

Max Power

15 hp / 10.9 kW @ 9500 rpm

Max Torque

2.1 kgf-m / 15.1 lb-ft @ 9500 rpm

Transmission

6 Speed
Final Drive Chain

Front Suspension

41mm Telescopic forks
Front Wheel Travel 170 mm / 6.6 in

Rear Suspension

Monoshock adjustable preload
Rear Wheel Travel 185 mm / 7.2 in

Front Brakes

Single 320mm disc 2 piston caliper

Rear Brakes

Single 210mm disc 1 piston caliper

Front Tyre

100/80-17

Rear Tyre

130/70-17
Wheelbase 1405 mm / 55.3 in
Seat Height 850 mm / 33.4 in
Ground Clearance 270 mm / 10.6 in

Dry Weight

136 kg / 300 lbs

Fuel Capacity

11 Litres / 2.9 US gal

Consumption Average

55 mpg

Standing ¼ Mile

15.3 sec / 131.2 km/h

Top Speed

141.3 km/h / 87.9 mph
