Yamaha YZF-R1-M

.

Make Model

Yamaha YZF 1000 R1M

Year

2015

Engine

Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.

Capacity

998 cc / 60.9 cu-in
Bore x Stroke
79.0  x 50.9 mm
Compression Ratio
13.0:1
Cooling System Liquid cooled
Lubrication Wet sump
Engine Management YCC-T, YCC-I, PWR, TCS, LCS, LIF, SCS, QSS, CCU & SCU

Induction

Fuel Injection with YCC-T and YCC-I

Ignition

TCI: Transistor Controlled Ignition
Starting Electric

Max Power

147.1 kW / 200.0 PS @ 13500 rpm

Max Torque

112.4 Nm / 83.2 lb-ft @ 11500 rpm
Clutch Wet, Multiple Disc

Transmission

6-speed w/multiplate slipper clutch
Final Drive "O" ring chain

Front Suspension

43mm KYB® inverted fork; fully adjustable
Front Wheel Travel 120 mm  /  4.7 in

Rear Suspension

r Öhlins electronic suspension w/ single shock w/piggyback reservoir
Rear Wheel Travel 120 mm  /  4.7 in

Front Brakes

2x 320mm discs 4 piston calipers, UBS ABS

Rear Brakes

Single 220mm disc 1 piston caliper, UBS ABS

Front Tyre

120/70 ZR17M/C

Rear Tyre

200/55 ZR17M/C
Dimensions Length 2054.8 mm / 80.9 in
Width 690 mm / 27.2 in
Height 1150 mm / 45.3 in
Wheelbase 1419 mm / 55.3 in
Ground Clearance 135mm /  5.3 in
Seat Height 830 mm / 33.9 in

Wet Weight

201 kg / 443 lbs

Fuel Capacity

17 Liters / 4.5 gal



.

2015 YZF-R1M: THE CLOSEST YOU CAN GET TO A PRODUCTION YZR-M1

From the beginning, Yamaha has always faithfully adhered to the mantra, “We Race. You Win.” And the YZF-R1M is arguably the truest and most direct representation of that belief. As much as the 2015 R1 bristles with performance, style, and race-bred substance, the R1M actually kicks things up yet another notch, giving you a production Superbike that’s as close as you can get to a street-legal M1 MotoGP bike, effectively blurring the line between the two.



The R1M showcases an additional range of highly sophisticated components–including Öhlins Electronic Racing Suspension (ERS), carbon fiber bodywork (upper fairing, side fairings, and front fender), and a Communication Control Unit (CCU) with GPS that enables the rider to capture ride data (including GPS tracking) and then download it via WiFi to the Yamaha Y-trac smartphone and tablet app. Once the data is downloaded, the rider can analyze it overlaid with the track map, make setting changes, and upload those changes back to the R1M.



The R1M’s specially developed tires are the result of a joint collaboration between Yamaha and Bridgestone. The 200/55-ZR17 rear tire and 120/70-ZR17 front tire use a special compound formulated to optimize the performance characteristics of the R1 and allow the rider to experience outstanding levels of traction with extreme lean angles.

Additional R1M features include a clear-coated aluminum fuel tank, a highly polished aluminum swingarm, gold-colored front radial-mount calipers, specially finished gold inner tubes on the 43mm Öhlins front forks, and a special R1M badge on the airbox cover.



After riding this Superbike taken to the Mth degree, four-time AMA Pro Superbike Champion Josh Hayes said, “If you’ve ever ridden an R1–or any literbike for that matter–chances are, you’ve got a secret wish to swing your leg over a full-on, race-ready Superbike. Well, with the R1M, now you can.





Features



Cutting-edge MotoGP®-Derived Crossplane Crankshaft Engine
The YZF-R1M® features a lightweight and compact crossplane crankshaft, inline-four-cylinder, 998cc high output engine. Featuring a first ever for a production motorcycle, titanium fracture split connecting rods delivering extremely high horsepower and a strong pulse of linear torque for outstanding performance.
•Class-leading Electronics Package
The YZF-R1M features the most advanced MotoGP®-inspired electronics package ever offered on a supersport machine: a full suite of inter-related technologies, enabling the rider to enjoy the fullest range of performance with great comfort, control, and ease of operation.
•The Ultimate MotoGP®-derived Supersport
The YZF-R1M features an Öhlins® Electronic Racing Suspension (ERS), carbon fiber bodywork, and a Communication Control Unit (CCU) with GPS that enables the rider to capture ride data (including GPS tracking) and then download it via WiFi to the Yamaha Y-TRAC smartphone and tablet app. Once the data is downloaded, the rider can analyze it overlaid with the track map. Setting changes can then be made via the YRC Setting app and uploaded back to the R1M.
•MotoGP®-level Controllability
Featuring the first six-axis Inertial Measurement Unit (IMU) ever offered on a street-going motorcycle, the R1M represents the dawn of a new digital era where all riders can experience total 3D controllability.
•Informed Systems
IMU consists of a gyro sensor that measures pitch, roll, and yaw, as well as an accelerometer, or G-sensor, that measures acceleration in the fore-aft, up-down, and right-left directions… all at a rate of 125 calculations per second. By calculating each signal, the IMU finds the precise vehicle position and movement, and communicates it to the ECU, enabling it to control the bike’s systems.
•Digital Rider Aids
The R1M is fully equipped with banking-sensitive Traction Control, as well as Slide Control, Wheel Lift Control, Quickshifter, Launch Control, ABS, a Unified Braking System, and much more. The all-new R1M gives street riders, track day participants, and full-on racers an unmatched and unprecedented level of rider-adaptive performance.
•Deltabox® Frame
Advanced aluminum Deltabox® frame uses the engine as a stressed member of the chassis and is designed to provide the optimum balance of longitudinal, lateral and torsional rigidity.
•Titanium Exhaust System
A midship-layout exhaust system with titanium headers and muffler canister is positioned low and in the middle of the chassis for improved mass centralization.
•MotoGP® Styling
The styling on the new R1M is inspired by the YZR-M1, purposely sculpted for maximum aerodynamic efficiency.







Difference between R1M & R1

• Premium Ohlins Electronic Racing Suspension (ERS)
• Communication Control Unit (CCU) - Data logger & vehicle info via Wi-Fi
• Wider 200 series rear tire (200/55ZR17)
• Carbon fiber front fender and fairing
• Polished & clear coated aluminum fuel tank (unpainted)
• Polished & clear coated aluminum swingarm (unpainted)



Engine:

Cutting-edge Crossplane Engine
The 998cc in-line 4-cylinder, crossplane crankshaft engine features titanium fracture-split connecting rods, which are an industry first for a production motorcycle. The specific titanium alloy used to manufacture the new connecting rods is around 60% lighter than steel, and this major reduction in weight gives the R1M engine a responsive and potent character at high rpm. This impressive engine delivers extremely high horsepower and a strong pulse of linear torque.
•Compact Stacked Transmission
A 6-speed transmission has also been adopted to match the new engine. The transmission "stacks" the input/output shafts to centralize mass and to keep the overall engine size shorter front to back, which optimizes engine placement in the frame for outstanding weight balance.
•Rocker-Arm Valvetrain
Advanced rocker-arm valve actuation uses the arm’s lever ratio to allow for larger valve lift while using lower cam lobes and reduced spring pressure, further boosting power.
•Lightweight Engine Components
Lightweight magnesium covers are used to further reduce engine weight.
•Titanium Exhaust System
The R1M is equipped with an exhaust system manufactured mainly from titanium. Plus, a compact midship muffler further contributes to mass centralization.
•Advanced Clutch
Assist and slipper clutch is used to give the rider more confident downshifts when entering corners aggressively, while still handling the torque of the R1M’s high-output inline-four motor.




MotoGP®-level Controllability
Inertial Measurement Unit (IMU) uses six axes of measurement: It consists of a gyro sensor that measures pitch, roll, and yaw, as well as an accelerometer, or G-sensor, that measures acceleration in the fore-aft, up-down, and right-left directions… all at a rate of 125 calculations per second. The IMU communicates with the ECU and Suspension Control Unit, which activates the technologies in Yamaha Ride Control (YRC). YRC includes Power Mode, Traction Control System, Slide Control System, Lift Control System, Launch Control System, Quick Shift System and the Öhlins® Electronic Racing Suspension. All these systems are adjustable and can be saved within four presets in the YRC system.
•Factory Level Telemetry
Another feature exclusive to the R1M that takes electronic control to an all new level is Yamaha’s unique Communication Control Unit. The CCU allows riders to communicate with the vehicle via Wi-Fi through Yamaha’s exclusive Y-TRAC smartphone and tablet app.
•GPS-equipped Y-TRAC System
The onboard system is comprised of the CCU and GPS antenna. Running data can be recorded via a data logger, with course mapping and automatic lap timing managed by GPS. This data can then be wirelessly downloaded to the Android® or Apple® iOS® app where it can be analyzed, and setting changes can be made within the app to later be uploaded to the R1M. This Yamaha exclusive Y-TRAC system gives an all new connection to the machine that has never been seen outside of the factory race pits, further blurring that line between production superbike and MotoGP® bike.
•PWR Mode
Power Delivery Mode (PWR), similar to the earlier “D-Mode” system, lets the rider choose from four settings of throttle-valve opening rate in relation to the degree of throttle-grip opening to best match their riding conditions.
•Lean Angle Sensitive TCS
Variable Traction Control System (TCS) reduces rear wheel spin when exiting corners, calculating differences in wheels speeds and in relation to lean angle. As lean angle increases, so does the amount of intervention… with ten separate settings (off and 1-9) enabling the rider to dial in the exact level of control needed.
•MotoGP®-Developed SCS
Slide Control System (SCS), the first of its kind on a production motorcycle, comes directly from the YZR-M1. It works in tandem with the IMU, where, if a slide is detected while accelerating during hard leaning conditions, the ECU will step in and control engine power to reduce the slide. This too can be adjusted by the rider. Four settings (1-3 and off).
•Lift Control System
Lift Control System (LIF) IMU detects the front to rear pitch rate and the ECU controls engine power to reduce the front wheel lift during acceleration. Four settings (1-3 and off).
•Race Start Control
Launch Control System (LCS) limits engine rpms to 10,000 even with wide open throttle. It maintains optimum engine output in conjunction with input from the TCS and LIF systems to maximize acceleration from a standing start. Three setting levels regulate the effect (1-2 and off).
•Adjustable Quickshifter
Quick Shift System (QSS) cuts engine output so riders can up-shift without using the clutch and closing the throttle for quicker lap times, also with three variable settings (1-2 and off).
•Ride-by-Wire Throttle
The R1M uses YCC-T® (Yamaha Chip Controlled Throttle), fly-by-wire technology providing optimum power delivery. YCC-I® is Yamaha Chip Controlled Intake which is a variable intake system that broadens the spread of power in both low and high rpm.
•Full Color Instruments
The R1M features a brilliant full-color, thin-film transistor LCD meter, including front brake pressure and fore/aft G-force readouts, giving the rider even more feedback from the machine. It features both street mode and a track mode that focuses on performance information, such as YRC settings, a zoomed-in view of the tachometer in the upper rpm range, a lap timer with best lap and last lap feature, gear position indicator and speed.

Exclusive Öhlins® Electronic Racing Suspension
The R1M features a highly advanced Öhlins® Electronic Racing Suspension. The Suspension Control Unit receives data from the Inertial Measurement Unit, which detects vehicle speed, lean angle, acceleration and brake pressure, then adjusts the front and rear compression as well as rebound damping for optimum suspension performance. The system comes with two modes: Automatic (A-1 and A-2) modes continuously adjust rebound and compression damping as you ride, providing ideal damping force for the track or the street that can be fine-tuned to the rider’s needs. Manual mode allows riders to fine tune to the settings they choose, then holds these settings while riding.
•Deltabox® Frame
Aluminum Deltabox® frame and magnesium subframe contribute to a light weight and compact chassis design. The aluminum frame is both strong and flexible, with rigid engine mounts, making the engine a stressed member of the frame for optimal rigidity balance and great cornering performance on the race track.
•Compact Chassis Dimensions
The wheelbase is 10mm shorter than the 2014 YZF-R1 adding to cornering performance. However, the ratio of swing arm length to wheelbase is 40.5% for excellent handling.

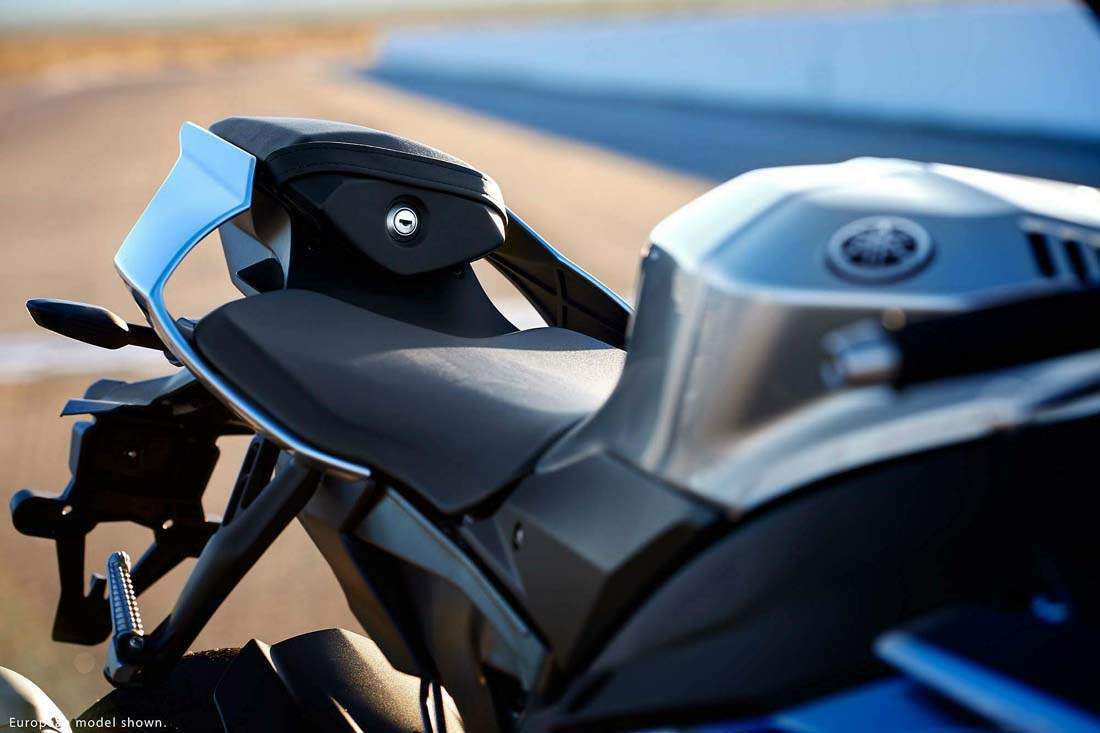

•Aluminum Fuel Tank
Also featured is an aluminum 4.5 gallon fuel tank, weighing in at a full 3.5 pounds less than a comparable steel tank.
•Powerful, Controllable Brakes
The track developed and tested racing ABS and Unified Braking System provide maximum braking performance. UBS inhibits unwanted rear end motion during braking by activating the rear brake when the front brake is applied, with force distribution based on the bike’s attitude and lean angle. ADVICS 4-piston radial mounted front calipers ride on big 320mm rotors for excellent stopping power.
•Race-ready Magnesium Wheels
10-spoke cast magnesium wheels that reduce rotational mass by 1.9 pounds over the 2014 model reduce unsprung weight for quick direction changes and improved handling.
