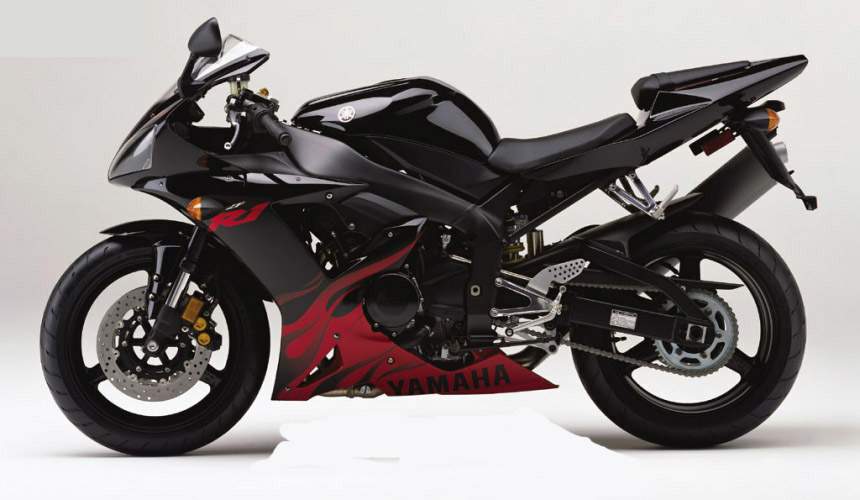

Yamaha YZF 1000 R1

.

Make Model

Yamaha YZF1000 R1

Year

2003

Engine

Four stroke, transverse four cylinder, DOHC, 5 valves per cylinder.

Capacity

998 cc / 60.9 cu-in
Bore x Stroke 74 x 58 mm
Compression Ratio 11.8:1
Cooling System Liquid cooled
Lubrication Wet sump
Engine Oil Mineral, 20W/40
Exhaust Alloy muffler

Induction

Fuel injection, dual-valve throttle bodies with motor-driven secondary valves, 45 mm throttle body

Ignition

Digital TCI
Spark Plug NGK, CR9E
Starting Electric

Max Power

152 hp / 110.8 kW @ 10500 rpm

Max Torque

104.9 Nm / 10.71 kg-m @ 8500 rpm
Clutch Wet, multiple discs, cable operated

Transmission

6 Speed
Final Drive Chain
Gear Ratio 1st 39/15 (2.600) 2nd 35/19 (1.842) 3rd 30/20 (1.500) 4th 28/21 (1.333) 5th 30/25 (1.200)  6th 29/26 (1.115)
Frame Aluminium, twin spar

Front Suspension

43mm inverted telescopic forks, preload, compression and rebound damping adjustable.

Rear Wheel Travel 120 mm / 4..7 in

Rear Suspension

Truss-type Aluminium swinging arm Monocross,  preload, compression and rebound damping adjustable.

Rear Wheel Travel 130 mm / 5.1 in

Front Brakes

2 x 298mm discs 4 piston calipers

Rear Brakes

Single 220mm disc 4 piston caliper
Rim Front 3.50-17
Rim Rear 6.00-17

Front Tyre

120/70 ZR17

Rear Tyre

190/50 ZR17
Rake 24°
Trail 91 mm / 3.8 in
Dimensions Length 2040 mm  /  80.3 in
Width 705 mm  /  27.7 in
Height 1105 mm  /  43.5 in
Wheelbase 1395 mm / 54.9 in
Ground Clearance  140 mm / 5.5 in
Seat Height 813 mm / 32.3 in

Dry Weight

175 kg / 389.5 lbs
Wet Weight 192 kg / 423 lbs

Fuel Capacity

18 Litres / 4.7 gal

Consumption Average

17.8 km/lit

Standing ¼ Mile

10.6 sec

Top Speed

277.5 km/h / 172.4 mph
Road Test Superbike Group Test 2002
.

2002–2003

A new fuel injection system was introduced for the 2002 year, which worked like a carburetor by employing a CV carburetor slide controlled by vacuum created by the engine. With a similar power output to the 2000-2001 bike, the engine remained largely the same. One notable improvement was the use of new cylinder sleeves of a high silicon content alloy containing magnesium that minimized heat induced distortion, reducing oil consumption. Also in 2002, Yamaha released the newly developed Deltabox frame,[5] which, with its hydro formed construction, reduced the total number of frame welds. These changes improved the frame's rigidity by 30%. The cooling system was redesigned for better performance and compactness. The exhaust system was changed from a 4-into-1 to a new titanium 4-into-2-into-1 design. The rear end of the motorcycle was updated and streamlined with a LED taillight.

This allowed for very clean rear body lines when choosing one of several common after market modifications, such as removal of the turn signal stalks and stock license plate bracket; and replacing them with assorted available replacements that "hug" the body or frame. Also, front end lighting was improved in 2002, between the higher definition headlights and also side "parking" lights within the twin-headlight panel, giving a more angular appearance.

This also gave additional after market possibilities, such as to remove the front turn signals and use these front lights as directional or hazard markers while stopped. For 2003, the only change was fitted hazard warning lights and dipped headlights, which stay on all the time the engine is running.

In 2002, Cycle World reported fuel mileage of 38 mpg‑US (6.2 L/100 km; 46 mpg‑imp), a 0 to 60 mph (0 to 97 km/h) time of 2.9 seconds, a 0 to 1⁄4 mi (0.00 to 0.40 km) time of 10.32 seconds at 137.60 mph (221.45 km/h), and a top speed of 167 mph (269 km/h).





Yamaha's YZF-R1 revolutionized the open-class sports market when it first appeared in 1998. The first riding reports spoke of an incredible blend of tiny size, light weight and power, all backing up the incredible on-paper specification of the R1.

Almost every part of the R1 was new. Cunning design and advanced materials allowed the 20-valve inline-four engine to be extremely short, narrow and light. The crankshaft and gearbox shafts are arranged in a triangular arrangement, with the gearbox input shaft sitting above the crank, permitting a shorter engine/gearbox unit. Magnesium covers, forged pistons and a single-piece upper-crankcase/cylinder unit all further help weight loss.



A variant of the Yamaha Deltabox aluminium frame, called Deltabox II, is extremely short and stiff, and uses the engine as a stressed component to add strength without weight. That short engine design permits a longer swingarm, which pushes more weight over the front end, and improves rear wheel traction under power, while retaining an ultra-short 1395mm (55in) wheelbase.



The front forks also used new design concepts - extra travel was incorporated, which allows the front wheel to stay in contact with the ground for longer under hard acceleration. The front brakes had already been seen on the Thunderace, but worked even better on the lightweight R1.  The Rl remained at the top of the sportsbike pile until 2001, when the superior power of Suzuki's GSX-R1000 deposed it. For 2002, the R1 received a comprehensive update, including fuel-injection, less weight and better brakes and handling. The all-i new fuel-injection system uses a sliding piston valve design, similar to that on CV

carbs, to match airflow velocity to engine requirements. The latest black-finished Deltabox III frame is lighter than before, but is 30 per cent stif fer.

The 2002 R1 was still behind the GSX-R on outright power and all-up weight, but its superb handling and excellent fuel-injection helped redress the balance.

Review

The all-new R1 is back, with a vengeance!

Road test by Adrian Percival

The new Yamaha R1 has been eagerly awaited by the Yamaha faithful (including me as an owner of a 2000 model), and we recently got a chance to sample one courtesy of Yamaha in Weybridge. The new bike has seen a total revamp yet retains the traditional R1 features and good looks, which stunned the superbike market when it was released in 1998. The stance and unique looks of the R1 makes this bike stand out from the crowd in a style that could possibly be the Japanese equivalent of the Ducati 916/998.

So is the new R1 a match for the GSXR 1000? It certainly has enough power at 152bhp but if it were just in this category then the R1 has lost out before the game has started. The new R1 is just as extreme as the old model yet can be ridden as softly as you like, or it can become one of the craziest rides you have ever had! Switch on the ignition and everything lights up. You get a pre-flight check of the gauges and digital dash confirming that the clutch, gear lever, throttle and brakes are all where they should be, no big surprises there then. Pulling away, I could immediately feel the R1's usual immense torque at the bottom end of its big 4cyl 1000. The great thing about R1's is the tons of low-end torque with huge middle and top end pull.

The new bike has had some major work done in the weight department with the wheels and brakes seeing major changes. This is the first time that Yamaha have put fuel injection and forced induction on the R1 and it brings it smack up to date in the technology stakes. Get on the new bike and it feels tiny due to its redesigned tank and new fairing design.

 The R1 still has the familiar Deltabox III frame but is redesigned, with a new swingarm and the dimensions, geometry and satin black finish from the R7 racer. It's more rigid, lighter and holds the engine some 20mm higher as a fully stressed member. I'm sure that Yamaha realised that they couldn't match the GSXR 1000 on the power front using the current engine so they seem to have made this new R1 into a track day blitzer instead. At speed, the bike is calm and well mannered and really feels like 600 in terms of size. The turn in on corners felt remarkably pinpoint and stable, I'm sure that the new engine position also helped with its 'deckability' (is that a word?) I must stress just how impressed I was with the way the new bike rode in comparison to the old model. In a corner, the new R1 is extremely stable and the only time I felt a wobble or two was over the odd bump under pretty hard acceleration. The front end calmed down within a couple of twitches but I never felt that it would become a problem, unlike the old model!

R1's are easy to ride fast but you can get in over your head, this requires a lot of composure from both bike and rider, the R1 won't let you down, it's the rider that I'd be worried about. But it’s not the smooth new fuel injection system, the wide power band of engine or the now tamed and good handling characteristics that makes the new R1 so good.The bike still features a designer titanium pipe, which looks so familiar but in reality is reshaped, lighter and now has titanium header pipes for company. The EXUP valve is still there, but redesigned to be smaller and lighter, better, stronger and faster etc. The radiator has been enhanced to provide increased efficiency with cooling fans that Yamaha claim produce 20% more airflow (that should help with the 'hot leg' syndrome of old).

The brakes were always good on R1's but the new ones are, dare I say it, are even better! The twin 298mm front discs now feature gold-anodised 4-piston calipers and new aluminium pistons and sintered brake pads. Two-finger braking was all that was needed for a comfortable and progressive stopping during the time that I rode it. The rear brake has also been redesigned and is now smaller as a 220mm disc and has a redesigned 2-piston caliper. Even here the new rear brake seems better than the older, larger disc with more feel and stopping power.So, it starts runs, handles and stops well. Anything else? The tail section has been restyled and is significantly sharper. It is now fitted with a rear LED taillight which is a bit dim when viewed from behind, but when the brake lights do come on it's a real attention grabber to say the least. The new bike has higher pegs and lower bars than the old model but it doesn't seem to affect the distance capability of it at all, which surprised me, maybe I'm just the right size for the R1 and am used to the slight pins and needles you tend to get with it on a long run! The first thing that I would recommend and do, as a lot of other rider will also do, is to fit a double bubble screen to take away that 'direct wind blast' from the tiny screen that comes with the bike.

The new R1 should prove an easy bike to look after, with the all new satin black frame and swing-arm it will mean an end to the never ending cleaning of the polished alloy of the old version, and it still comes with an undertray and a colour matched rear hugger to keep the grime at bay on the rear shock assembly. Take note here you other 3 Japanese manufacturers, take a leaf out of Yamaha's book and do this as a standard feature on your sportsbikes.

Source Motorbikes Today
