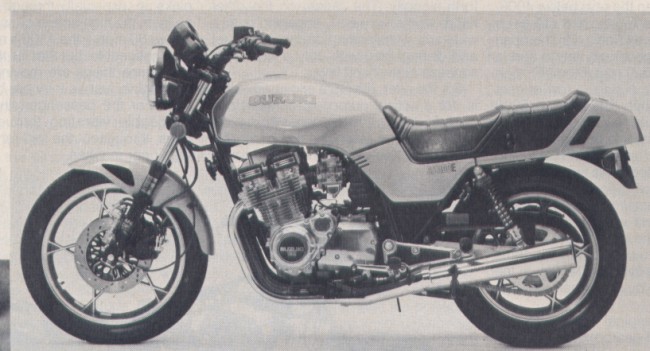

Suzuki GS 1100EZ







Make Model

Suzuki GS 1100EZ

Year

1982-83

Engine

Air cooled, four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.

Capacity

1074
Bore x Stroke 72 x 66 mm
Compression Ratio 9.5:1

Induction

4x 34mm Mikuni  BSS4SS

Ignition  /  Starting

Transistorized pointless  /  electric

Max Power

100 hp 73 KW @ 8700 rpm

Max Torque

60 lb-ft @ 8000 rpm

Transmission  /  Drive

5 Speed  /  chain

Front Suspension

37mm Air telescopic forks, 4-way rebound and spring reload adjustable, 148mm wheel travel.

Rear Suspension

Dual shocks, 5-way spring preload and 4-way rebound daming, 110mm wheel travel.

Front Brakes

2x 275mm discs 2 piston calipers

Rear Brakes

Single 275mm disc

Front Tyre

3.50 V19

Rear Tyre

4.50 V17

Dry-Weight / Wet-Weight

240 kg  / 256 kg

Fuel Capacity

22.5 Litres

Consumption  average

41.3 mp/g

Standing ¼ Mile

11.4 sec  /  116.8 mp/h

Top Speed

141 mp/h  /  227 km/h



Suzuki GS-one-one-zip-zips, stop reading right here. Malcontents complain that magazines do much too much testing of the 16-valve Suzuki Superbikes, burning up time that might be better spent classic-testing Piovaticci Fifties. Look at Cycle magazine; this makes three full tests in 27 months. Why do that? Because the GS1100 is the standard yardstick in Superbikes. It was the instant King of Superbikes when introduced, and Suzuki hasn't left its biggie propped up on its laurels. Every year there have been improvements and additions. Enough to bring any motorcycle enthusiast back to it. To take measure of the King once again.

Heart and soul of the GS1100 is its 16-valve, 1075cc engine. The horsepower this engine has—and the quality of that power—goes a long way toward making this motorcycle a king. The matter is broader than the sheer horsepower on tap; it's the nature of that power easy, by-the-way, almost casual and nonchalant. The engine, it would seem, is Suzuki's weapon of maximum deterrence. Until someone else wants to build an 1100 engine with 16 valves set in Cosworth mode, the GS-weapon remains un-threatened. No other production street engine has as much potential for further power development as the GS1100. If some other manufacturer wants to get in a horsepower race with the GS, it must be prepared to lean heavily on its present engines, while Suzuki would need only to nudge the GS1100 a little to jump the power. Right now, it doesn't seem worth the while to anyone, including Suzuki, to push Superbikes into legitimate, do-it-every-time 10-second quarter-milers. Since introducing the GS1100 two years ago, Suzuki has done virtually nothing to hype the engine.

Go-fasters might be wondering already whether the new Z-bike is quicker and faster and more powerful than the X-scooter Cycle tested in December 1980, and the answer is. . . no. This year's bike clocked an 11.33-second quarter-mile, hitting the speed traps at 119.36 mph. That makes it slower, 0.15 seconds and one-half mile per hour, than the 1981 GS1100EX. Furthermore, the 1100EZ lacked the speed and quickness of the Katana 1000, which recorded an 11.29 at 122.11 mphat the drag strip.

A word of explanation. First, the performance of the 1982 bike falls within a standard range of deviation. The 1981 bike was a strong runner that benefited from a perfect day at the drag strip. The day wasn't as perfect for the 1982 bike, which, on the dyno, proved to be about one to two percent, and at places about three percent, down on the 1981 bike's horsepower. Second, the '81 bike was stronger above 6500 rpm; that counts at the strip. Third, the 1982 1000cc Katana had an edge over the '82 1100 because it was lighter and had less frontal area than the 1100, though the Katana had less muscle beyond 7000 rpm.

It's worth pointing out that a three or four percent deviation between individual bikes of the same year and model is not uncommon. When you're working with that variation on a 90-horsepower base, the differences in raw numbers can be significant. On the other hand, a four percent swing on 35-horsepower motorcycles may produce almost imperceptible differences at the drag strip. Where do these differences arise in engines of all sizes? Well, lots of places. Cam timing, ignition timing, valve jobs, etc. For example, good-breathing engines with 16 valves can be quite sensitive to valve-seat work. In fact, Suzuki made some subtle changes in valve seat cut-angles to the Suzuki GS1100 in its first model year of production (1980); this begot better flow around the valves, and from this change came the power to put the GS1100 in the low-elevens every time. There's no "speed part" you can see in sophisticated valve-seat cutting: on a production line the costs are little; the benefits, large. Small invisible changes can make important differences in out-. put, especially when working on big base numbers in the first place.

Changing something small and getting an improvement is still Suzuki's strategy with the GS1100. This year, the engineers redesigned the airbox, compressing the filter into a D-shaped cylinder in the interest of lowering seat height 20mm. A new, single velocity-stack intake to the airbox system replaced the older two-hole design. The result was less flow resistance through the system and, consequently, greater volume of airflow, to which is added more fuel by stepping up main-jet sizes (107.5 to 110), and, finally, more force acting on piston tops. Splendid though that may be, this newly won superiority didn't show up in hard testing numbers from the dyno and the drag strip.

Riders with one-way right wrists may discover another along-the-way 1100 improvement. Upgraded oil-tempered clutch springs, almost built out of valve spring material, are more resistant to that brutal treatment deserving a Dukes of Hazzard audition.

Elsewhere in the engine caverns of Mr. King, there's been some mechanical reshuffling. The starter-clutch needle-bearing lubrication passage in the crankshaft is history, and the holder for the oil pressure sending unit now includes a sender for the oil temperature gauge. And, for the record, Suzuki has moved the choke lever out to a fingertip position. Applaud.

Cold-starting has improved this year; on 40- to 50-degree mornings the 1100 requires full-choke for a few seconds and half-choke for a minute, then it's ready to run. The constant-velocity Mikuni carbs function very well throughout the rev range. They respond instantly to snap throttle openings, and the stock jetting is nearly spot-on.

The only cost of the updated jetting is slightly decreased gas mileage. If you're fond of the GS (meaning you like to twist the throttle), expect mileage figures comparable to ours. Most of our tankfuls registered 30-37 mpg. We once coaxed 43 miles per gallon out of a tankful, just to say we and the bike could do it.

Mid-range power makes the 1100 a standout. From 2000 to 5000 rpm the engine pulls strongly and cleanly. Around town you can keep the revs below 4000, never shift above fourth, and still keep ahead of virtually all traffic. On the open road the mid-range allows you to burble along in fifth at 3820 rpm (60 mph), then roll on the throttle to pass a row of cars without a downshift. Run it up to 5000 rpm and you're gliding at about 75 mph.

If you're into chasing through the canyons—and you probably can't own a GS and not be attracted to the twisties—then you'll want to know about power above 5000 rpm. Rest assured, the 1100 fulfills your expectations when you head toward redline. In the lower gears the front gets light and your stomach flip-flops when you grab a fistful of throttle. In the upper gears you quickly break the 100-mph barrier.

Though the original GS-T and last year's GS-X had gearboxes which performed flawlessly, the GS-Z's has a trifle rough and imprecise shifting. Another gearbox/driveline related complaint concerns the GS's excessive drive-train snatch. Around town in all gears, and at low speeds in the lower gears wherever you ride it, the 1100 lurches when you open and shut the throttle quickly. We traced the annoyance to oveny large engagement slots in the gears, which allow the opposing dogs to move back and forth sloppily. The clutch, on the other hand, works very well, engaging over a wide arc, withstanding drag-strip abuse, and disengaging with only a moderate squeeze at the hand lever.

For the rider, the GS's engine vibration is, for practical purposes, non-existent. Up to 5500 rpm you can sense the typical high-frequency mechanical motion of a transverse four-cylinder engine through tne handtebar ana ianK—enuuyn iu iei you know your bike's running. At about 5500 rpm, that's about 80 mph, the tingle picks up, especially through the bar and pegs. In the high-speed cruising range-above 80 mph—the 1100's resonance is very noticeable, but that fits the situation. You sense things are moving quickly in the engine, just as they are by the roadside. For the passenger, there's some noticeable vibration through the rear pegs, throughout the mid-range and into the upper reaches.

Naturally enough, the minor changes in the chassis produce some distinct but subtle alterations in handling. Most important among the modifications is a switch to a center-axle fork (which was necessary to accommodate the new anti-dive system). The new axle position increases trail (about one-half inch over last year's GS) and decreases the wheel-base a like amount.

If you like to troll down the boulevard or make off for the next state on the weekend via the straightest roads you can find, you'll probably never notice the difference in handling. However, when you get the GS-Z into the canyons, you'll feel some variations. Previous GS1100s have had neutral steering; the '82 model's steering feels neutral at sedate and moderate speeds. (By neutral we mean that once you've countersteered the bike into its cornering attitude, no further input is necessary to maintain that arc.) At higher speeds, though, the front end tucks in and pushes oh-so-very slightly. Experts will pick up on the phenomenon easily; it will be less clear to others who, when really pushing, will simply describe an imprecise and sudden reaction to input, probably because they overcompensated for the action. All in all, we like the slightly quicker handling and quicker turn-in compared to that of previous GS1100s. It makes the '82 GS feel nimbler than last year's bike at all speeds, and the high-speed handling characteristics are nevertheless blue-ribbon stuff.

Much of the fine overall handling ability stems from the rock-steady chassis. The frame is heavily gusseted around the steering head, and the aluminum box-section swing arm resists flex extremely well. The rest of the credit goes to the GS's reasonably light weight. The '82 1100 weighs 562 pounds fully gassed; that's four pounds lighter than last year's bike, even though the GS-Z holds an additional 0.8 gallon of gas (roughly equal to five pounds). The Kawasaki GPz1100 (with 5.7 gallons of gas) weighs 568 pounds, which puts these two bikes in a league apart from such heavyweights as the Honda CBX, which weighed (before it was clothed in sport-touring garb) 606 pounds. Suzuki trimmed ounces from the muffler brackets, seat, tail piece, fork, front fender, headlight, taillight and mirrors to cut the total weight.

Sport riders always question ground clearance. With the '82 GS, you can be sure you'll scrape only lightly, and then only if you're into hot-dogging. Few riders will touch down any chassis pieces; experts can touch the pegs consistently, claiming the rubber works well as feelers. After the peg-rubbers, hot-dogs can get into centerstand and portions of the pipes. In fact, the tires start sliding before you have to worry about solid chassis parts dragging. The V-rated Bridgestones are good compromise hoops, providing very decent traction and reasonable wear. Suzuki should fit the GS1100 with bigger tires on wider rims; this motorcycle could use more than 1.85 at the front and 2.15 at the rear. The benefits would be better traction, if not better mileage.

A couple of modifications affect the '82 machine's seating position. Suzuki moved the footpegs about two inches rearward compared with the GS-T and X. The other change results from the switch to Katana-inspired styling. To blend with the new lines of the tank and tail piece, the seat has been lowered almost an inch, reducing unladen seat height from 32.7 inches to 31.5. Anyone with short legs will like the new seat at stoplights.

The new seating position suited a remarkably diverse cross-section of our testers and satisfied them for various types of riding. For sport use, our five-eight to five-ten riders claim the position is nearly ideal, with one tester calling for a handlebar with less pullback.and one calling for pegs back just a little farther still. Our taller riders would prefer a bar with less pullback or, as a second alternative, more-rearward pegs. For highway riding the position is superb; only one tester wanted the bar more forward.

The seat accounts for the GS's excellent ergonomics; it's a very long saddle that allows most everyone to find a position that feels right. Also, there's very little step in it, so even when you slide back nearly to the passenger area, it feels comfortable. Though the newly designed seat is firmer than last year's saddle, it's fine for hours-on-end cruising.

There may be a bit of one-upmanship going on in the recent development of anti-dive fork systems. The GS incorporates a Kayaba unit, essentially identical to the one found on the Katana. It differs from a Showa system (as used by the Yamaha Seca 750) in that the Suzuki's setup is non-adjustable. The GS's anti-dive system is activated by brake fluid, which moves a plunger to block the path of the fork oil, thus effectively stiffening the compression damping dramatically when the brakes are applied. There is a blow-off valve, which allows the suspension to work when you hit a bump while braking. Tests by Suzuki indicate a fork equipped with their anti-dive system compresses about an inch less than one without; however, the amount of compression varies drastically depending on, among other things, the amount of brake pressure applied, the speed of the motorcycle and whether or not a bump is encountered.

In general use, Suzuki's anti-dive system works, but its effect is noticeable only if you look for it. We think most riders will like the anti-dive because it lets the suspension work freely over holes and bumps. Our experts prefer Honda's TRAC system, which activates through thecaliper(not by brake fluid) and has a much more pronounced anti-dive effect, very much reducing fork compression.

There is a definite side-effect to the Suzuki's brake-fluid-activated system: front brake action has a somewhat mushy feel through the lever. Regardless of the vagueness in feel at the lever, the brakes are powerful and responsive. You can haul down the 1100 from any speed quickly and surely, time after time and without fade. In normal use the brakes activate progressively and with only a moderate amount of lever pressure.

Suzuki revamped the fork to accommodate the new center-axle design. The GS-T and X models had four-way adjustable damping, which you varied by turning knobs located on the fork bottoms. The key here is that the leading-axle design allowed the rod to have a straight shot up from the bottom of the slider.

That's not possible with a centrally located axle blocking the rod's path, so Suzuki redesigned the setup to produce the same effect; the GS-Z also has four-way adjustable rebound damping with the same rate of change. Now, though, the fork oil routes through side channels, which you see on the outer sides of the fork sliders as bulges. Inside the sliders, these channels direct the oil through a new system of different-sized orifices, which you engage by turning knobs on the sides of the sliders; that's still a simple, two-second operation. Oil traveling through this bypass completes the transfer of fluid through the damping circuit.

The suspension is otherwise unchanged. The fork has full adjustability; it includes four-way spring preload positioning, infinitely variable air pressure, four-way damping, and of course you may alter damping by varying the amount and weight of oil. The shocks have four-way damping adjustments and five preload positions.

That all adds up to a bike which offers excellent performance, whatever your pleasure. For highway cruising, where we wanted a soft, supple ride and quick suspension reaction to small and fre-

quent bumps, we chose the middle shock preload position and either the number one or two damping setting. Up front eight psi air and the number two damping setting worked well for 145-pound to 175-pound riders. The stock 15-weight oil and the stock fork preload setting both work fine for all-around use.

For hustling down our favorite back-roads, we bumped the shocks' preload to full stiff, selected the number four damping setting, injected the fork with 15 psi air and clicked the knurled adjusting knobs to number three. The whole operation takes less than five minutes and really affects the suspension's action. With its suspension on firm, the GS maintains its ground clearance, resists wobbling over high-speed rough ground and in general handles in a precise, taut and controlled manner.

Along with the styling change came a switch to a round, eight-inch quartz-halogen headlight. It throws a broader beam than the old GS's square headlight did, and one about the same depth. It's very good for night riding; it cuts a precise pattern and allows you to cruise at normal speeds safely.

The question now is: Where does Suzuki go from here? We'd like to see the odd percentage horsepower restored, though that might involve only getting a stronger individual bike, and one that would shitt with the slick precision of previous GS1100s; we'd like a more positive feel at the front brake lever and less slop in the drive train; wider rims and more

rubber would benefit the GS1100 too. And that's about the end of our advice.

As things stand now, three out of three of the quickest and fastest motorcycles Cycle has ever tested have had the big-inch 16-valve Suzuki engine ('81 GS1100, '82 Katana, '82 GS1100); this

GS is the most comfortable, best-handling big street bike money can buy; it's ergonomically successful, fitting a variety of rider shapes and sizes as well as any motorcycle in memory; and its engine is tolerant, tractable and docile. What more can you say? King. ®

Source Cycle 1982
