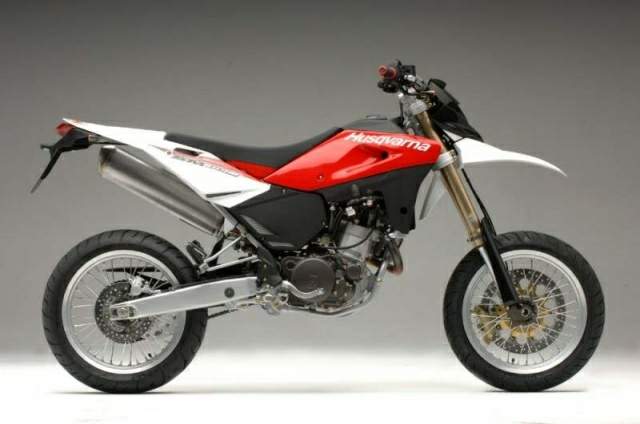

Husqvarna SM 610







Make Model

Husqvarna SM 610

Year

2007

Engine

Liquid cooled, four stroke, single cylinder, SOHC, 4 valve per cylinder.

Capacity

576
Bore x Stroke 98.0 x 76.4 mm
Compression Ratio 11.0;1

Induction

41mm Keihin FCR MX

Ignition  /  Starting

CDI  Adjustable advance /  electric
Clutch Wet,multiplate type; mechanic control

Max Power

50 hp @ 7100 rpm

Max Torque

5.3 kg-m @ 6100 rpm

Transmission  /  Drive

6 Speed  /  chain
Gear Ratio 1st 2.615 (34/13), 2nd 1.812 (29/16), 3rd 1.350 (27/20), 4th 1.091 (24/22), 5th 0.916 (22/24), 6th 0.769 (20/26)
Frame

Steel single tube cradle round tubes rear frame in light alloy

Front Suspension

45mm Marzocchi "Upside-Down" telescopic hydraulic fork with advanced axle. compression and rebound stroke adjustment , 250mm wheel travel.

Rear Suspension

Sachs progressive "Soft Damp" type with single hydraulic shock absorber, spring preload adjustment, compression and rebound adjustment , 290mm wheel travel.

Front Brakes

Single 320mm disc

Rear Brakes

Single 220mm disc

Front Tyre

120/70 -17

Rear Tyre

150/60 -17
Seat Height 910 mm  / 35.8 in

Dry-Weight

140 kg  /  314.2

Fuel Capacity

12.5 Litres

Consumption  average

20.4 km/lit

Standing ¼ Mile

13.3 sec

Top Speed

165.8 km/h
Overview Motocorse
