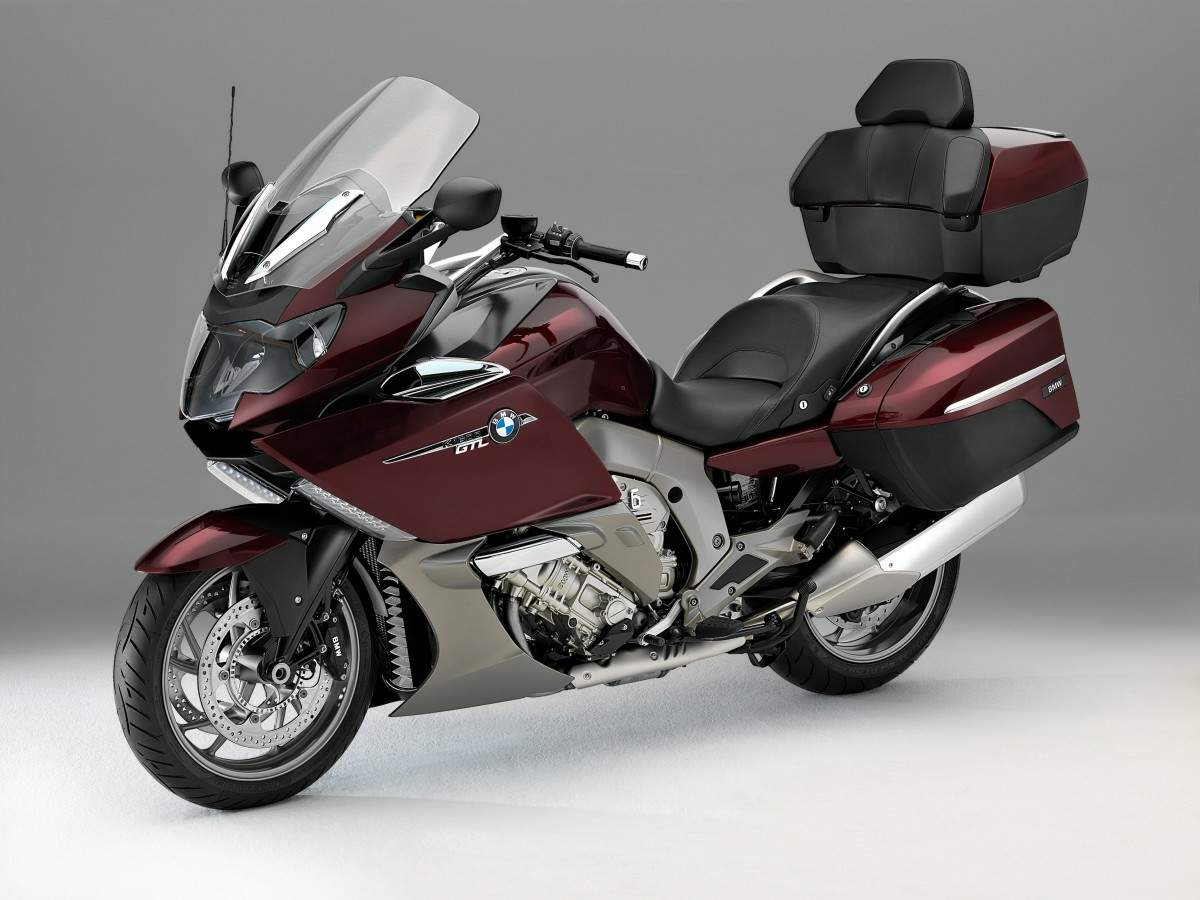

BMW K1600GTL

.

Make Model

BMW K 1600 GTL

Year

2013

Engine

Four stroke, transverse six cylinder, 4 valves per cylinder

Capacity

1649 cc / 100.6 cu in.
Bore x Stroke 72 x 67.5 mm
Compression Ratio  12.2:1
Fuel Premium unleaded (95 RON)
Cooling System Liquid cooled

Induction

52mm Throttle valve diameter, BMS-X

Ignition

Digital CDI
Alternator 580 W Alternator
Battery 12 V / 19 Ah maintenance free
Starting Electric

Max Power

118 kW / 160.5 hp @ 7750 rpm

Max Torque

175 Nm / 17.8 kgf-m / 129 lb-ft @ 5250 rpm

Clutch Multiplate wet clutch, hydraulically activated

Transmission

6 Speed
Final Drive Shaft
Gear Ratio 1st 2.23 / 2nd 1.641 / 3rd 1.319 / 4th 1.101 / 5th  0.926 / 6th 0.788
Frame

Chill-cast rear frame, aluminium, extruded sections

Front Suspension

Dual longitudinal control arm
Front Wheel Travel 115 mm / 4.8 in

Rear Suspension

Paralever (single-sided swing arm), central spring strut, rebound/continuously variable
Rear Wheel Travel 135 mm / 5.3 in

Front Brakes

2 x ∅320mm discs, 4 piston calipers

Rear Brakes

Single ∅320mm disc, 2 piston caliper
ABS BMW Motorrad ABS (partial integral)
Front Rim 3.0 x 17"
Rear Rim 6.00 x 17"
Wheels Cast aluminium wheels

Front Tyre

120/70 ZR17

Rear Tyre

190/55 ZR17
Castor 108.4 mm / 4.3 in
Steering Head Angle 62.2°
Wheelbase 1680 mm / 66.1 in
Dimensions Length: 2489m m / 98.0 in
Width: 1000 mm / 39.4 in
Height: 1465 mm / 57.7 in
Seat Height 810 - 830 mm / 31.9 - 32.7 in (standard)
780 - 800 mm / 30.7 - 31.5 in(optional rider seat)
750 mm / 29.5 in (special accessory seat, single-section)
Dry Weight 321 kg / 708 lbs

Wet Weight

348 kg / 768 lbs

Fuel Capacity

26.5 Litres / 7.0 US gal
Reserve 4 Litres / 1.1 US gal

Consumption Average

5.95 L/100 km / 16.8 km/l / 39.5 US mpg

Standing ¼ Mile

11.7 sec

Top Speed

239.2 km/h / 148.6 mph

.

The K1600GT and K1600GTL luxury touring bikes. The 2013 K1600GT is now available with new metallic paintjobs – dark graphite and blue – and LED headlamps will be available as an option from October this year. And the bike’s 5.7-inch TFT colour screen on the instrument panel now has an optional digital speed display. The 2013 BMW K1600GTL also gets new metallic paint finishes – dark graphite and red.

Both the K1600GT and K1600GTL remain mechanically unchanged for 2013. Both bikes are fitted with the same 1600cc inline-six engine that produces 160 horsepower and 175Nm of torque. The GT weighs 319kg, while the GTL weighs 348kg, and both bikes are fitted with an adjustable traction control system that has rain, road and dynamic riding modes.

The bikes’ light alloy bridge-type frame, Duolever (front) and Paralever (rear) suspension, electronically adjustable suspension (ESA II), anti-lock brakes (ABS), adaptive headlights that compensate for pitch and banking, superb ergonomics and vast range of optional accessories make the K1600GT and K1600GTL two of the best touring bikes in the world.

BMW is aiming to make the broadest sweep possible across the big tourer classes with its new six-cylinder engine.

The K1600GT is designed to cover the same ground as Kawasaki’s 1400GTR, the Yamaha FJR1300A and Honda STX1300 Pan European – even to the point that BMW has deleted its own direct rival to this competition, the K1300GT. The K1600GTL meanwhile replaces some of the GT’s sportier genes with luxury ones, to the point where even though both machines share the same chassis and power train from engine to rear wheel, the GTL has a distinctive character and finds itself up against a different set of bikes.

Not that it’s a big set, including as it does the Honda Gold Wing and in some peoples’ eyes, the Harley Electra Glide and Victory Vision. The BMW in many ways though is a very different machine, more akin to the company’s 7-Series cars in its efficient dedication to comfortable high speed travel, where the glitzy Glide is all 1960’s kitsch and the Vision relies on flamboyant style and excess as much as ability.

The GTL’s nearest rival though is its own stablemate, the K1600GT, as many potential buyers will be dithering between the two. So what are the differences, and how do they matter? The bodywork is the same on both bikes with only the GTL’s larger screen differing, and this is an option anyway for GT buyers. The GTL gets softer suspension settings, lower and further forward footrest, a lower and wider seat and a topbox as well as the panniers.

The K1600GTL is also electronically restricted to a top speed of 136mph (220kph) compared with the GT’s unrestricted maximum of 155mph (250kph), and this is the reason it has a higher maximum payload, despite the softer suspension – fully loaded at close to 150mph it could become unstable. Total permitted weight for the GTL is 1,235lb (560kg), 44lb (20kg) more than the GT.

The GTL feels different as soon as you sit on it, with a very upright riding position due to the pulled back bars and lower seat. For shorter riders this will help in moving it around with the engine off, although taller ones could be more confident in manhandling the GT, but either way the differences aren’t great, despite the added high-up mass of the capacious topbox.

The sound of the engine is familiar enough after the GT – BMW says it’s slightly more muted thanks to small silencer variations (in addition to their different finishes) and when you’re revving it hard there is a softer edge to the seductive rasp. But you’d still be hard pushed to tell which one you’re on by the exhaust note alone.

As with the GT the clutch action is light with a slightly vague bite point, but when you find it the bike wafts away effortlessly and smoothly. There’s none of the K1300 series graunch or judder when the drive is taken up, even when you’re launching the bike hard.

The next observation came as a surprise after riding the K1600GT: the K1600GTL feels a little more punchy at lower revs. It’s not a big difference, which is just as well as the gearing on both bikes is the same, as are the engines, and the GTL carries a little more weight. In which case there’s a comparative factor at play: the GT with its tauter chassis encourages you to rev it harder and push the performance more, so when you do drop down to low revs again the gap between in the power and out of it feels greater.



I wasn’t alone in this, Motor Cycle News editor Marc Potter had exactly the same feeling, and both of us quizzed the German design team afterwards about any unmentioned differences, but there were none. It simply appears to be a case of how you ride the bike compared with the GT.

Even so, the GTL is no tyre shredding torque monster either. It pulls reasonably well at low rpm, and as with the GT you can trickle it down to engine idle speeds in the high gears and there’s no hint of discomfort from the transmission, just an obedient wafting along in the traffic which makes slow speeds as much fun as high ones. But there’s still some disappointment that you don’t get more from the motor in the lower levels, and as with the GT you do need to trouble the slick-shifting gearbox more often than you’d hope in order to get past slower traffic.

I've produced a feature comparing the lower rev torque at the rear wheel, where it really counts, and it shows the K1600GTL has a lower torque/kg ratio than the discontinued K1300GT for a substantial section of the lower rev range. It also builds more slowly.
See the Torque Comparison feature here

The suspension definitely is different though, being significantly softer on the K1600GTL, but it isn’t any more comfortable for that as it feels underdamped and crashes over bigger bumps and potholes, to the point where the rider can be jarred through the seat. I spent a lot of time switching between the ESA mode settings, not just to try them out but because I could never find something I was entirely happy with, swopping between the harshness of Sport and the jarring of Normal. Comfort was just too soft.

It was an irritation more than real nuisance after I’d got used to it, and riders coming from Harleys or Gold Wings will wonder what I’m complaining about as the GTL is better than either. But the GT is superior again and in Normal offers a convincing and comfortable ride, where the GTL often jiggles or bumps.

The GTL’s stability is less impressive too, although you do need to be pushing things to discover this. At 100mph (160kph) it can start to feel a little vague, and by 120mph (190kph) it can become unnerving. I didn’t get a chance to max it out, but one rider who did said it was getting borderline scary when a corner entered the fray. I shouldn’t worry about this too much though, at anything below 100mph the stability is fine, and higher speeds are mostly done on long straight roads anyway where there are no problems either.

Maintaining a rapid pace is delightfully easy as the huge screen fends off the windblast with accomplished ease, so you sit upright commanding your cruise ship with its array of information displayed in LCD monochrome and TFT display (feature here), serene as the world rushes backWards around you. Personally I prefer the GT’s more forward leaning position, but I can imagine some riders will prefer the GTL’s sofa-like stance when there are really serious miles to cover.

American riders tend to prefer to look through a bike’s screen where Europeans and others like to peer over the top edge (we get rained on more...), and the K1600GTL caters for both with the extensive range of screen movement. Do note though that at higher speeds, when you raise the screen to its maximum to look through it, the force of the air pressure pushing you forwards is uncomfortably large.

The passenger’s wind protection is equally impressive. I’m not a typical pillion at 6’3” (1.91m) and my head was out in the slipstream to an extent, but even that was better than many bikes. When I ducked my head to more physically normal levels it dipped into a region of calm and quiet I’ve not really experienced on the back of a bike before. This does change as the screen is adjusted of course, but the potential is there certainly for a very pleasingly quiet and turbulence-free ride on the back.

The seat itself is very wide and extremely comfortable, although this is achieved by extending it over the top of the grab handles. Fine when the topbox with its back rest is fitted and the rider is accelerating, but the K1600GTL has a fearsome braking capacity and when you’re slowing down it’s difficult to hold onto the handles. You can hook your hands under them but it’s not possible to grasp them properly as the seat padding gets in the way, and there aren’t many other places that are easy to hold onto. The GT with its narrower seat and clear handles is better.

The topbox anyway detaches very easily, and it’s satisfying to use as the lid glides up on a gas strut when you undo the catch – a neat touch that’s entirely in keeping with the rest of the bike’s sophistication, as is the optional central locking, which when you have a total of five compartment locks (the box, both panniers and the small cubby holes in the lower fairing) is genuinely useful rather than mere gimmick.

As with the GT the impressive airflow management extends to removing the engine’s heat – it escapes the bike while avoiding both rider and passenger, so you don’t get painfully hot sitting in traffic for long periods, and like the GT the GTL is very well balanced once you’re moving at little more than walking pace and sits solid and reassuring at low speeds, until you have to execute a tight U-turn, when the weight starts to let you know it’s there. Not as much weight as a Gold Wing though, which is 792lb (359kg) dry and with far fewer gadgets – not even an electric screen, let alone onboard adjustable suspension. That would easily be 860lb (390kg) in a comparable condition to the BMW’s wet weight, and you’d really feel it.

I’d love to comment more on the Gold Wing differences, in particular the low rev pull and how it compares, but it’s been a long time since I rode one – it’s not changed either in a decade. I do suspect though the Honda has more initial thrust, as its torque peak is a lot lower than the BMW’s, 4,000rpm compared with 5,250rpm, and it’s only 6lb.ft (8.1Nm, 0.83kgm) less. The 1832cc, six-cylinder Wing has a much lower maximum power at 117bhp (119PS, 87.3kW) which also points to greater low rev torque, and reading my old reviews I did comment on the ‘irresistible twist’ from idle upwards, which I wouldn’t accuse the K1600GTL of. The Wing I do remember has a sharper clutch and sudden throttle action though which mean lower speeds can demand more concentration.

But it’s the differences between GTL and GT which many will be wondering about, and here my rides were only a day apart. The GT undoubtedly is the sharper handling, but it also has a better ride quality, and some passengers will prefer it for the better access to the grab handles. Those with larger bottoms will go for the GTL’s though and make do with the rider’s grab handles instead. High speed stability is superior on the GT but the wind protection not as comprehensive as the GTL’s, and the riding positions are quite different, the GTL being lower set and more upright. Note that BMW quotes 3.5 per cent worse economy figures but a 10 per cent larger fuel tank, so the range should be slightly more. After that it’s down to spec and price – I can only offer the UK versions here, but the specs are significantly higher, as you’d expect of BMW’s top level touring bike.
