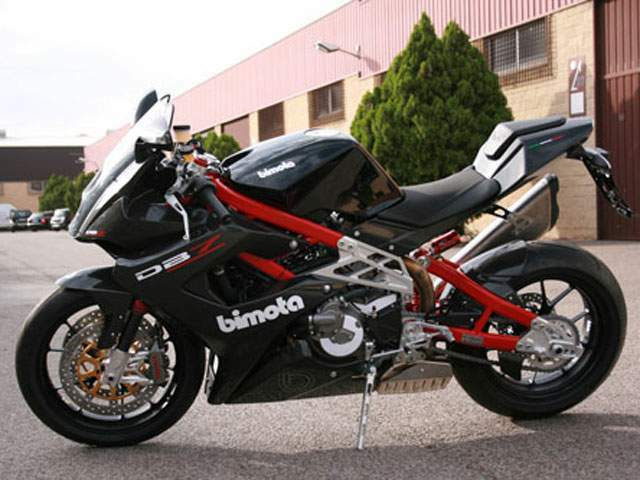

Bimota DB7 Black Edition





Make Model

 Bimota DB7 Black Edition

Year

 2008

Engine

 Liquid cooled, four stroke, 90°“L”twin cylinder, SOHC, desmodromic 4 valve per cylinder

Capacity

 1099
Bore x Stroke

104 x 64.7mm
Compression Ratio

12.5:1

Induction

 Electrically controlled gasoline injection and φ60mm throttle body

Ignition  /  Starting

 Magneti Marelli  /  electric

Max Power

118 kW  160 hp @ 9750 rpm

Max Torque

 123 Nm @ 8000 rpm
Clutch Wet multiple plates, hydraulic system

Transmission  /  Drive

 6 Speed  /  chain
Gear Ratio VI: 15/37 V: 17/30  IV: 20/28  III: 22/26  II: 23/24  I: 24/23

Front Suspension

43mm Marzocchi UD fork DLC fully adjustable, 120mm wheel travel.

Rear Suspension

Extreme Tech Monoshock TTX fully adjustable low/high speed, 120mm wheel travel.

Front Brakes

 2x 320mm discs 4 piston caliper

Rear Brakes

 Single 230mm disc 2 piston caliper

Front Tyre

120/70 ZR17

Rear Tyre

190/55 ZR17
Seat Height 800 mm

Dry-Weight

172 kg

Fuel Capacity

 16 Litres
