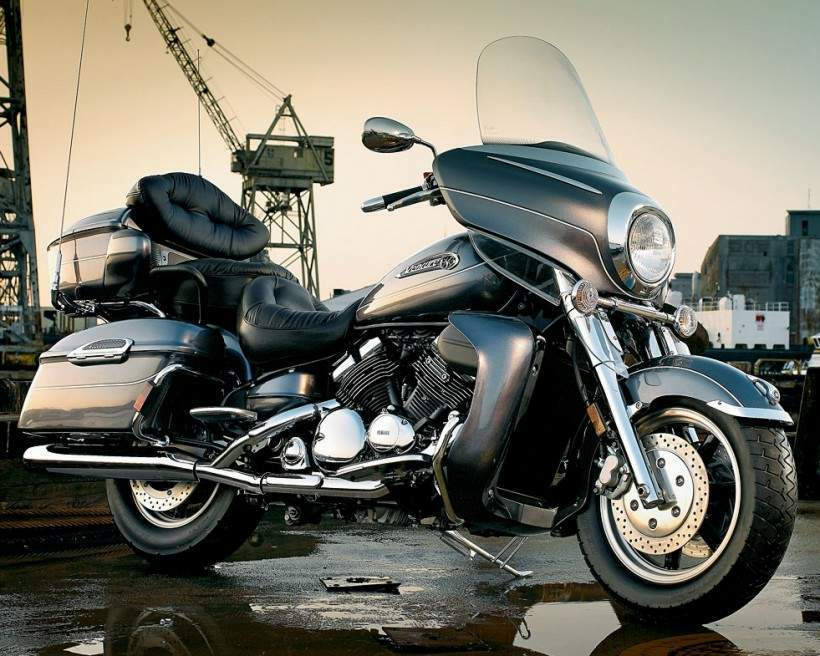

Yamaha XVZ 1300 Royal Star Venture

.

Make Model

Yamaha XVZ 1300 Royal Star Venture

Year

2007 - 08

Engine

Four stroke, 70°V-four cylinder, DOHC, 4 valve per cylinder

Capacity

1294 cc / 78.9 cu-in
Bore x Stroke 79 х 66 mm
Cooling System Liquid cooled
Compression Ratio 10.0:1

Induction

4x 32mm Mikuni Constant-Velocity

Ignition

Digital TCI
Starting Electric

Max Power

98 hp / 71.5 kW @ 4750 rpm

Max Torque

123 Nm / 90.7 lb-ft @ 4750 rpm
Clutch wet, multiple discs, cable operated

Transmission

5 Speed
Final Drive Shaft
Frame Steel, Double cradle frame

Front Suspension

Air assisted telescopic fork
Front Wheel Travel 142 mm / 5.5 in

Rear Suspension

Single shock, link-type w/air assist
Rear Wheel Travel 104 mm / 4.0 in

Front Brakes

2x 298mm discs 4 piston calipers

Rear Brakes

Single 320mm disc 1 piston caliper

Front Tyre

150/80-16

Rear Tyre

150/90-15
Wheelbase 1705 mm / 67.1 in
Seat Height 710 mm / 28.0 in
Ground Clearance 145 mm / 5.7 in

Dry Weight

366 kg / 807 lbs

Wet Weight

394 kg / 869 lbs

Fuel Capacity

22.5 Litres / 5.9 US gal
.



Classic style. Incredible comfort.

Call it the ultimate long-range power trip. The Yamaha Royal Star Venture combines classic styling, flawless engineering and amazing comfort. Take it wherever you want to go, and enjoy the ride with the peace of mind that a 5 year warranty provides.

Take it coast to coast and enjoy the comfort, power and style that only a top-shelf luxury touring bike can offer. The Royal Star Venture combines classic styling, unmatched comfort, class-leading power and flawless engineering in one bike. Swing a leg over and get away from it all. Across town or across Canada. So sweet to ride, every trip is like a holiday.

Highlights:

Fuel Consumption * 18kpl/51mpg(Imp)

5-year warranty

All day touring comfort

Features and Benefits (Canada)

Engine:

294cc, liquid-cooled, DOHC, 4-valve, V4 engine is tuned to produce class-leading power - 98hp and maximum torque of 89 ft-lb @ 4,750 rpm - for incomparable touring performance.

4 valves per cylinder head design ensures maximum breathing efficiency for great engine performance.

Four Mikuni BDSR 32mm carburetors with TPS deliver seamless throttle response.
Each carburetor features a single 15-watt heater to ensure consistent fuel/air delivery under varying temperatures.

Huge air box capacity provides exceptional airflow to help boost both torque and power.

Compact-design, dual intake system enhances performance without sacrificing fuel tank capacity.
Large-capacity radiator ensures superior engine cooling for maximum efficiency.
 Single-axis, internal counterbalancer reduces engine vibration for maximum rider comfort.
Wide-ratio, 5-speed transmission with 5th gear overdrive reduces engine rpm at highway speeds for smooth, relaxed touring.

Maintenance-free, light-action hydraulic clutch

Smooth, clean, quiet, low-maintenance shaft drive
4-into-2 exhaust system puts out a throaty exhaust note and creates a long, low profile that's easily customizable.

Maintenance-free, transistorized coil ignition provides a precise timing curve at all rpms for instant engine response and fast, sure starts.

Automatic cam chain tensioners reduce maintenance and mechanical engine noise.

Air Induction System (A.I.S.) reduces harmful CO and HC emissions.

Spin-on type oil filter means fast, easy oil changes.

Easy-to-use heel-toe shifter highlights the Venture's classic design.

Numerous chromed engine parts highlight pride of ownership and attention to detail.

SUSPENSION

High-integrity, double-cradle frame with solid engine mounting and 29° caster angle delivers responsive steering and excellent handling.

Class-leading, long wheelbase 1,705mm (67.1") for great rider control and excellent stability.

Long wheelbase also creates exceptionally roomy ergonomics for maximum rider and passenger touring comfort.

Air-adjustable, 43mm front fork with 140mm (5.6") of wheel travel smoothes out the bumps and can be adjusted for varying load capacities.

Air-adjustable, link rear suspension features a vertically mounted single shock for classic hardtail looks and outstanding long-distance ride quality. Rear wheel travel is 105mm (4.1").

Air adjustability lets rider adjust rear suspension preload to match load and road conditions.

Dual 298mm front and single 320mm rear disc brakes use 4-piston calipers to provide strong, linear stopping power.

Wide, fork-mounted fairing with wind deflectors and frame-mounted lower cowlings offer outstanding wind and weather protection.

Full-sized, floating-type rider and passenger floorboards reduce vibration and are positioned for optimal long-distance comfort.

Easy-to-reach, large-diameter, 1-inch, rubber-mounted handlebars reduce vibration.

22.5-litre fuel tank with low-fuel warning light ensure outstanding long-distance touring range.

Large, powerful 12V 60/55-watt halogen headlight maximizes nighttime visibility while cutting a stylish profile.

Remote adjustable headlight aiming with conveniently located control helps compensate

for changes in load.

Vintage-style instrument console features: digital speedometer, odometer, dual tripmeters, fuel reserve tripmeter, clock and fuel gauge.

Convenient electronic cruise control system. Switch is located on right handlebar for ease of use.

Clarion AM/FM cassette stereo features automatic volume control (AVC), 18-FM presets, 6-AM presets, covered cassette deck and remote controllers for rider and passenger. There is a front auxillary plug-in for an MP3 player.

Four weather-resistant speakers (2-front/2-rear) with 14-watts per channel

Handlebar-mounted, 40-channel CB radio

Two-way rider/passenger intercom system

Audio system is C.D. changer compatible and handset ready (available as accessories).

Huge, 57-litre rear trunk with easy, one-touch opener can hold two full-faced helmets.

Colour-matched, hard saddlebags feature handy, one-touch openers and 35-liters of storage per bag.

Details

Low-maintenance, sealed, 18 amp battery ensures easy, reliable starting.

Self-canceling turn signals with clear lens

Incomparable fit and finish includes flawless paint with extensive chrome and brushed stainless steel accents, and deep valanced steel fenders.

Ignition switch, with integrated steering lock, and accessory position is mounted at the front of fuel tank for extra convenience.

12 volt cigarette lighter-style fairing mounted DC outlet

12 volt DC connector located under the rider seat for additional accessories

Chrome engine guards, fender trim and 3-D Venture front fender mascot highlight unparalleled styling and attention to detail.

Theft-resistant ignition switch

Polished aluminum handlebar switches

Padded passenger grab rails

Extra wide clutch and brake levers

3-D Venture fuel tank emblems

Exclusive Royal Star 5-year unlimited mileage warranty
