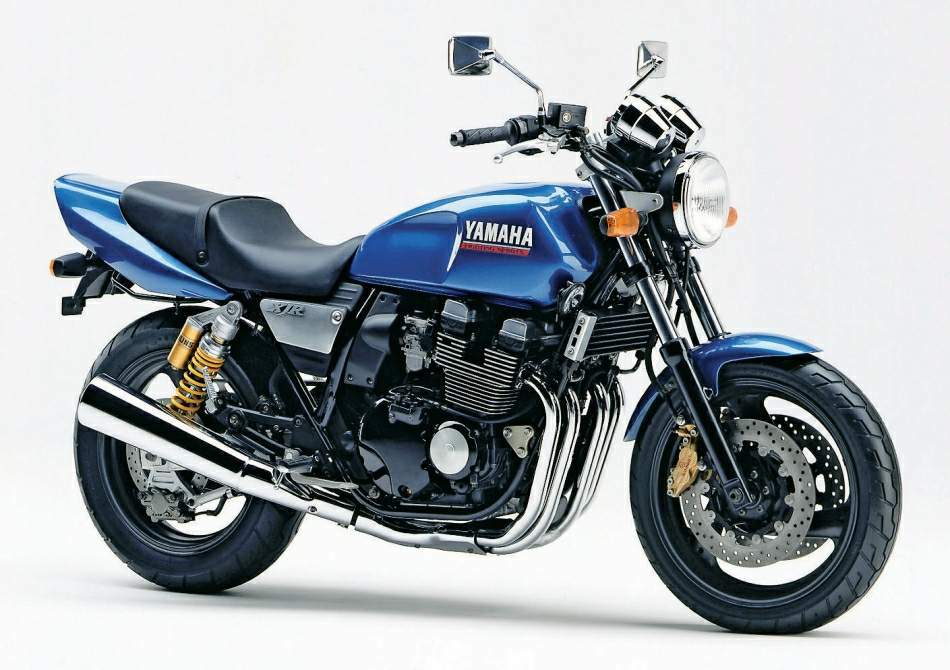

Yamaha XJR 400R

.

Make Model

Yamaha XJR 400R

Year

1995 - 97

Engine

Air cooled, four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.

Capacity

399 cc / 24.3 cu-in
Bore x Stroke 55 х 42 mm
Compression Ratio 10.7:1

Induction

BSR30×4 carburetors

Ignition

CDI
Starting Electric

Max Power

53 hp / 38.7 kW @ 11000 rpm

Max Torque

35 Nm /  25.8 lb-ft @ 9000 rpm

Transmission

6 Speed
Final Drive Chain

Front Suspension

Telescopic forks

Rear Suspension

Dual shocks preload adjustable.

Front Brakes

2X discs

Rear Brakes

Single disc

Front Tyre

110/70ZR-17M/C (54W)

Rear Tyre

50/70ZR-17M/C (69W)
Rake 26°00
Trail 99 mm / 3.9 in
Dimensions Length 2085 mm / 82.1 in
Width 735 mm / 28.9 in
Height 1085 mm / 42.9 in
Wheelbase 1435mm / 56.5 in
Seat Height 780 mm / 30.7 in

Dry Weight

176 kg / 388.lbs

Fuel Capacity

20 Litres / 5.2 US gal
