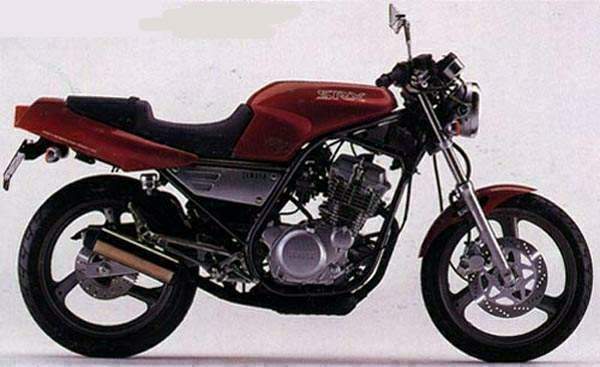

Yamaha SRX 250







Make Model

Yamaha SRX 250

Year

1987 - 90

Engine

Four stroke, single cylinder, DOHC, 4 valves

Capacity

249 cc / 15.2 cu-in
Bore x Stroke 73 х 59.6 mm
Cooling System Air cooled
Compression Ratio 10:1

Induction

Y22PV Teikei

Ignition

TCI
 Starting Electric

Max Power

17 hp / 12.4 kW @ 9000 rpm

Max Torque

2.4 kgf-m / 17.3 lb-ft @ 8500 rpm

Transmission

6 Speed
Final Drive Chain

Front Suspension

Centre axle 33mm forks
Front Wheel Travel 140 mm / 5.9 in

Rear Suspension

Single shock, adjustable spring preload
Rear Wheel Travel 100 mm / 3.9 in

Front Brakes

Single disc 2 piston caliper

Rear Brakes

Drum

Front Tyre

90/90-16

Rear Tyre

100/90-18
Seat Height 780 mm / 30.7 in

Dry Weight

123 kg / 371 lbs
Wet Weight 137 kg / 302 lbs

Fuel Capacity

9 Litres / 2.3 US gal

The Yamaha SRX 250 model is a Touring bike manufactured by Yamaha . In this version sold from year 1987 , the dry weight is  and it is equiped with a Single cylinder, four-stroke motor. The engine produces a maximum peak output power of 17.00 HP (12.4 kW) @ 9000 RPM and a maximum torque of  . With this drive-train, the Yamaha SRX 250 is capable of reaching a maximum top speed of 136.0 km/h (84.5 mph) . Regarding the chassis characteristics, responsible for road holding, handling behaviour and ride confort, the Yamaha SRX 250 have a  frame with front suspension being  and in the rear suspension it is equiped with  . Stock tire sizes are 90/90-16 on the front, and 100/90-18 on the rear. As for stopping power, the Yamaha SRX 250 braking system includes Single disc size  at the front and Expanding brake (drum brake) size  at the rear.
