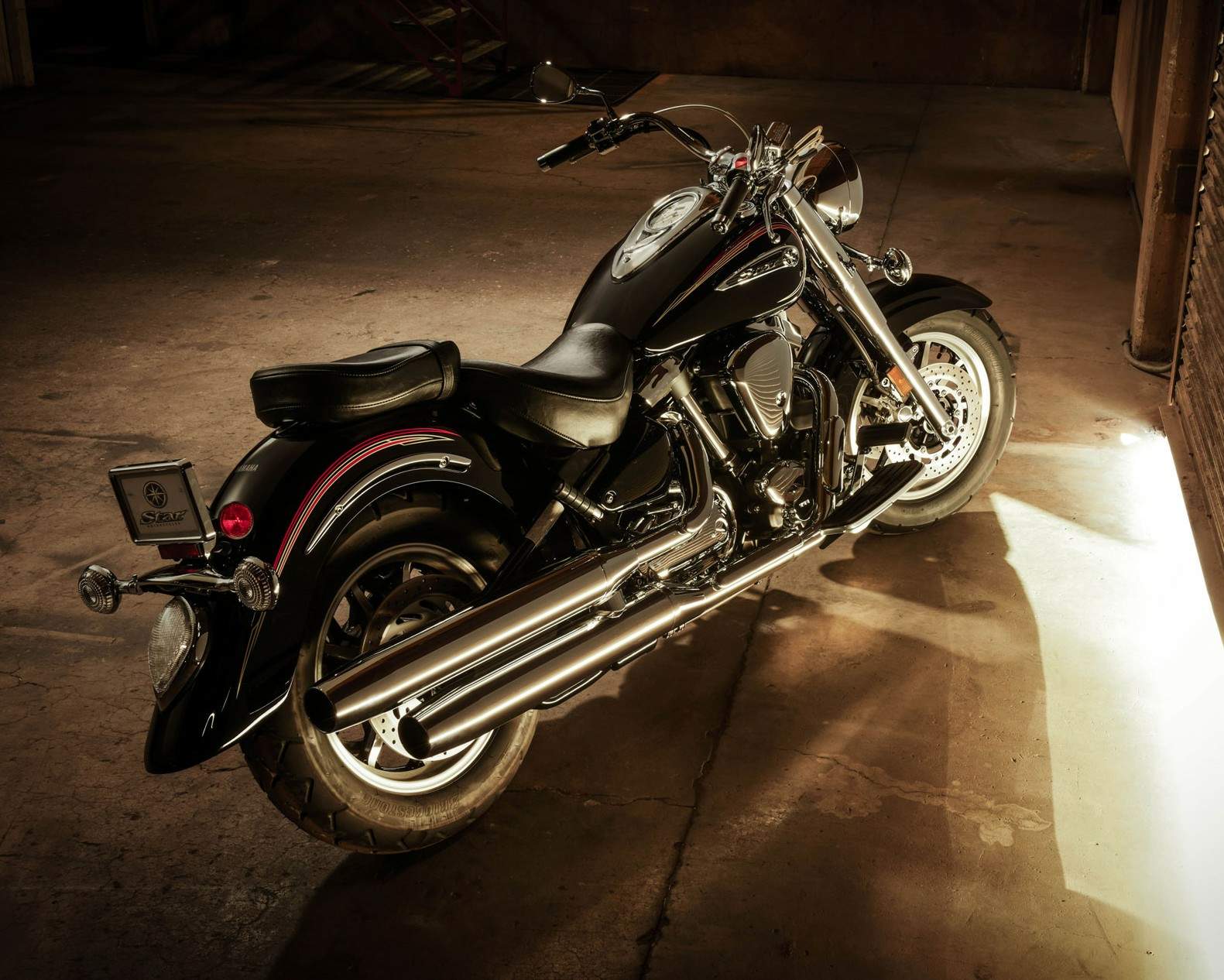

Yamaha XV 1700 Road Star S

.

Make Model

Yamaha XV 1700 Road Star S

Year

2012 - 13

Engine

Four stroke, 48° V-Twin, OHV, 4 valves per cylinder

Capacity

1670 cc / 101.9 cu/in
Bore x Stroke 97 x 113mm
Cooling System Air cooled
Compression Ratio 8.4:1

Induction

40mm throttle body FI

Ignition

Digital TCI
Starting Electric

Max Torque

14.7 kgf-m / 106.3 ft-lbs. @ 2500 rpm

Transmission

5 Speed
Final Drive Belt
Frame Aluminium, Double cradle frame

Front Suspension

43mm fork

Rear Suspension

Adjustable link Monocross

Front Brakes

2x 298mm discs 4 piston calipers

Rear Brakes

Single 320mm disc 4 piston caliper

Front Tyre

130/90-16

Rear Tyre

150/80-16
Dimensions Length 2500 mm / 98.4 in
Width 980 mm / 38.6 in
Height 1140 mm / 44.9 in
Wheelbase 1,688 mm / 66.5 in
Seat Height 710 mm / 28 in

Wet Weight

337 kg / 741.4 lbs

Fuel Capacity

17 Liters / 3.7 US gal

102-cubic-inch V-twin in a classic hardtail-looking steel frame with ample chrome accents

The 2012 Yamaha Road Star S features a fuel injected V-twin engine with muscle to burn and plenty of chrome. It's as easy on the eyes as it is easy to ride. Another winner in the legendary Star series.

Though it's available in a metallic black lacquer - this Star is sure to light up the road with its radiant good looks and brilliant chrome.

Gleaming chrome, a retro seat and loads of torquey muscle will have you itching to ride. Swing a leg over, fire up the massive fuel injected V-twin engine, and then settle in for a nice long ride.

Built to preform and customize like nothing else.

The Yamaha Road Star S is one of the most customized air-cooled V-twins in the business... and with good reason too. It simply looks good, due mostly to the classic appeal of that hardtail looking steel frame and all the classic looking hardware that goes with it. The 2012 Road Star S gets even more chrome accents to the front end including chrome switchgear, front brake master cylinder, front fork and levers.

Yamaha Road Star S Highlights and Key Features:

Fuel Consumption ± 15kpl/43mpg(Imp)

Fuel injected 1,670cc V-twin

Black and chrome detailing

Features:

•The Road Star S gets chrome accents to the front end and Stainless Steel braided throttle and clutch cables, front fork and levers.

•Electronic fuel injection provides easy cold starting and flawless fuel delivery at nearly all altitudes and in nearly any conditions.

•102-cubic-inch (1670cc) V-twin powered beauty in a long and low hardtail-look frame, with plenty of customization potential built in. Modern engineering and materials, including ceramic-composite cylinder liners for superior heat dissipation.

•Air cooling, hydraulic valve lifters, and belt final drive reduce maintenance requirements to a minimum.

•Estimated 36 mpg* means this cruiser is in for a long haul between fill-ups.

•The Star® Accessories Catalog is packed full of high-quality parts that invite Star owners to fully express their individuality.

Yamaha Road Star S Features and Benefits

ENGINE

1,670cc, air-cooled, long-stroke, OHV, 8-valve, 48° V-twin powerplant pumps out lots of low-rpm torque for unparalleled acceleration and cruising performance.

4 valves per cylinder provide optimum breathing efficiency while 2 spark plugs per cylinder ensure complete combustion for maximum power output.

Hydraulic valve lifters driven by twin crankcase-mounted camshafts deliver exceptional performance and reduce maintenance needs.

Traditional pushrod valve actuation keeps overall engine height down for a lower centre of gravity.

Large-diameter, forged pistons offer great durability and lighter weight for fast response.

Ceramic composite-plated cylinders provide uniform heat dissipation, reduce weight, reduce friction and increase cylinder service life.

Cooling fin thickness is optimized for maximum heat dissipation, thereby eliminating the need for liquid cooling, maintaining that traditional clean, air-cooled engine appearance.

Electronic fuel injection with TPS. This system features a single 40mm throttle body with dual injectors (one for each cylinder). The throttle position sensor is linked to the ECU and supplies info about throttle opening so the ECU can adjust ignition timing for optimum engine performance at all rpms.

High-capacity air intake system with paper type air filter provides maximum breathing for optimum performance.

Smooth-shifting, 5-speed transmission with 5th gear overdrive delivers outstanding cruising performance and reduced rpms at highway speeds.

Clean, quiet belt drive system is extremely low- maintenance and simplifies customization. Special narrow design drive belt and sprockets (front and rear) provide lightweight performance and exceptional durability.

Dry sump lubrication system with handy spin-on oil filter, creates a lower centre of gravity by helping reduce overall engine height.

Large-flywheel crankshaft delivers superior, low-rpm torque and that incredible V-twin "pulse" feel.

2-piece heel-and-toe shifter adds versatility and enhances the overall cruising experience. 2-piece design allows the rider to individually adjust front and rear portions to suit foot size or remove the rear section if not desired.

Electric starting system features solenoid-activated auto-decompressor for easy, no-hassle starting.

2-into-2 exhaust system features beefy, staggered, dual shotgun pipes that produce a soulful V-twin exhaust tune. Muffler replacement is fast and simple, if desired.

Air Induction System (A.I.S.) reduces harmful exhaust emissions (CO + HC).

Lots of high quality chrome engine covers.

CHASSIS / SUSPENSION

Solid-mounted engine housed in a specially designed gusset-less, double-cradle steel frame features a stylish 32° rake.

Long 1,685mm (66.3") wheelbase creates a long and low retro profile, great rider comfort and solid, stable handling.

Spacious ergonomics provide ample legroom, which maximizes rider comfort.

43mm front forks with large-diameter covers and 140mm (5.5") of wheel travel smooth out the ride.

Spring preload-adjustable, single-shock rear link suspension lowers centre of gravity for excellent handling and a plush ride. Rear wheel travel is 110mm (4.3").

Rear shock is horizontally mounted under the engine and tucked out of sight for that classic, hardtail look.

Dual 298mm front disc brakes feature one-piece, 4-piston calipers with chrome "buttons" accenting the outer piston covers.

320mm rear disc brake with 4-piston caliper provides excellent stopping power and feel.

Separate rider and passenger seats provide lots of support and comfort. Passenger seat can be easily removed.

Full-size, floating-type rider floorboards are roomy and comfortably positioned while also helping reduce vibration.

Separate sub frame positioned under deeply valanced rear fender allows easy customization with numerous accessible mounting points.

Deeply valanced steel fenders combine timeless styling with rugged durability and easy customization.

Nine-spoke, cast aluminum front and rear wheels not only reduce weight and maintenance (no spokes to tighten), but they also add a sportier styling image to the Road Star S. Since these are mag wheels, they are fitted with bias ply, tubeless-type tires.

18 litre fuel tank provides an exceptional cruising range. The FI electric fuel pump is located inside the tank. Fuel tank seam is hidden for that clean, custom look.

Wide, swept-back, 1"-diameter, rubber-mounted handlebars are easy to reach and help to reduce vibration on the rider's hands.

Beautiful braided steel-look throttle and clutch cables enhance that the Road Star's stylish custom look and image.

Tank-mounted speedometer features an extremely stylish design with raised 3D marks to highlight the speed graduations. Instrumentation includes odometer, dual tripmeters, clock and a fuel gauge plus a range of indicator lights.

Diamond-shaped, LED rear taillight with white lens looks like it is straight off a fully customized machine. The LED design not only provides a bright light, but also uses less power.

Stylish turn signals with custom looking clear lenses are self-canceling

Rear turn signal mounting bracket is beautifully chromed and features a built-in license plate light. It is small details like this that separate the Star series of cruisers from the rest of the crowd.

ADDITIONAL DETAILS / FEATURES

Industry-leading Star family fit and finish features rich, lustrous paint and extensive chrome accents creating a machine as stunning as it is powerful.

Extra wide chromed front brake and clutch levers provide a quality feel.

3-dimensional, fuel tank-mounted Road Star logo

Seat and steering locks are integrated into the main ignition switch for extra convenience.

Handy, dual under seat helmet holders

Powerful, 12V 60/55-watt, halogen headlight maximizes nighttime visibility.

Low-maintenance, sealed battery ensures fuss-free, dependable starting.

In-tank electric fuel pump

Beautifully chromed, 43mm front fork assembly, upper triple clamp, handlebar holder, switch gear, master cylinder and levers

Blacked-out engine with polished cooling fin edges

High quality metallic black lacquer paint scheme

Factory-installed passing lamp relay speeds the installation of the accessory passing lamp kit available through Yamaha Genuine Parts and Accessories
