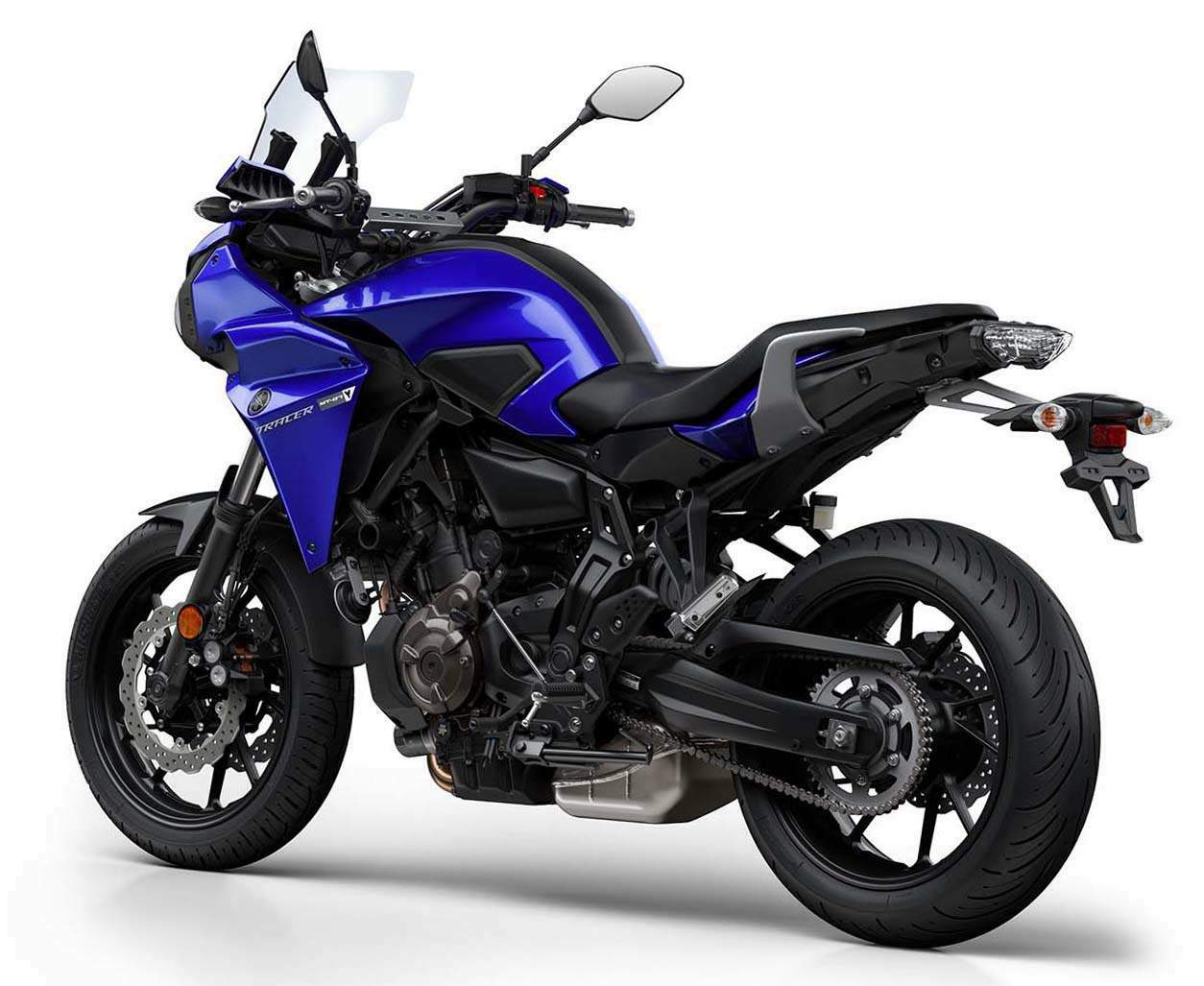

Yamaha MT-07 Tracer / Tracer 700

.

Make Model

Yamaha MT-07 Tracer 700

Year

2016 - 17

Engine

Four stroke, parallel twin, DOHC, 4 valves per cylinder

Capacity

689 cc / 42.04 cu-in

Bore x Stroke

80 x 68.6 mm

Cooling System

Liquid cooled

Compression Ratio

11.5: 1

Lubrication

Wet sump

Induction

Fuel injection

Ignition

TCI (Transistor Controlled Ignition)

Starting

Electric

Max Power

55 kW / 74.8 hp @ 9000 rpm

Limited Power Version

35 kW / 46.9 hp @ 7500 rpm

Max Torque

68 Nm / 50.1 lb-ft @ 6500 rpm

Clutch

Wet, multi plate

Transmission

6 speed, constant mesh

Final Drive

Chain

Frame

Diamond

Front Suspension

Telescopic forks

Front Wheel Travel

130 mm / 5.1 in

Rear Suspension

Swinging arm, (link suspension)

Rear Wheel Travel

142 mm / 5.59 in

Front Brakes

2x 282mm discs

Rear Brakes

Single 245mm disc

Front Tyre

120/70 R17 M/C (58W) (tubeless)

Rear Tyre

180/55 R17 M/C 73W (tubeless)

Caster Angle

24.8°

Trail

90 mm / 3.5 in

Dimensions

Length 2138 mm / 84.1 in
Width     806 mm / 31.7 in
Height  1270 mm / 50 in

Wheelbase

1450 mm / 57 in

Ground Clearance

140 mm / 5.51 in

Seat Height

835 mm / 32.8 in

Wet Weight

196 kg  /  432 lbs

Fuel Capacity

17 Litres /  4.49 US gal

.

Tomorrow’s memories are shaped by the decisions we make today. So imagine you’re writing the story of your life – and right now the next page is open.

The Tracer 700 is an accessible and affordable Sport Tourer that is built to take you on an exciting new journey every day. Maybe you’re heading out for a quick back road blast after work – or preparing to take a long-distance tour. This versatile and exciting bike is going to be with you when those future experiences are burned into your consciousness.

The new Tracer 700 gives you the opportunity to write a new page for every day. And it can help you to turn your story into anything you want – whether alone or with friends.

Details

  • Versatile and exciting Sport Tourer

  • Exciting sports performance with agile handling

  • Accessible and affordable middleweight

  • Adjustable screen and integrated knuckle guards

  • Long-range 17 litre fuel tank

  • Outstanding power to weight ratio

  • Torque-rich, 689cc, twin cylinder, crossplane engine

  • Compact tubular chassis

  • Lightweight 10-spoke cast aluminium wheels

  • Digital instrumentation with full LED display

  • Dual 282mm front discs with 4-pot calipers

  • Wide range of Genuine Yamaha accessories
