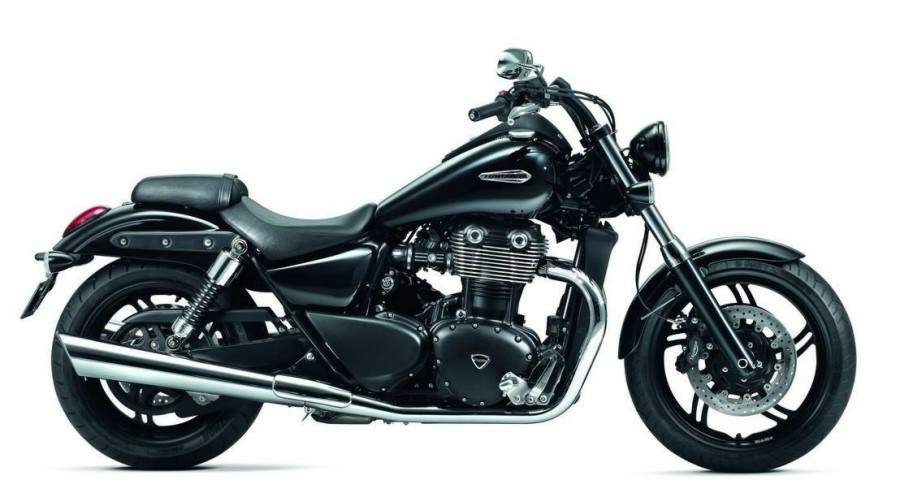

Triumph Thunderbird Storm









Make Model

Triumph Thunderbird 1600 Storm

Year

2011

Engine

Liquid cooled, four stroke, parallel twin, DOHC, 4 valves per cylinder.

Capacity

1599
Bore x Stroke 103.8 x 94.3mm
Compression Ratio 9.7:1

Induction

Multipoint sequential electronic fuel injection with SAI , progressive linkage on throttle

Ignition  /  Starting

Digital  inductive type  via electronic engine management  /  electric
Clutch Wet, multi-plate

Max Power

97 hp @ 5200 rpm

Max Torque

115ft.lbs @ 2950rpm

Transmission  /  Drive

6 Speed  /  Toothed belt
Gear Ratio 1st  2.9875:1  /  2nd  1.958:1  /  3rd  1.536:1  /  4th  1.219:1  /  5th  1.029:1  /  6th  0.909:1
Frame Tubular steel, twin spine Swingarm Twin sided, steel

Front Suspension

Showa 47mm forks. 120mm rear wheel travel

Rear Suspension

Showa chromed spring twin shocks with 5 position adjustable preload. 95mm rear wheel travel

Front Brakes

2x 310mm discs 4 piston calipers

Rear Brakes

Single 310mm disc  2 piston caliper

Front Tyre

120/70 R19

Rear Tyre

200/50 R17
Seat Height 702 mm  /  27.6 in

Dry-Weight

340 kg  / 746 lb

Fuel Capacity

22 Litres  /  5.8 gal

New for 2011, meet the Thunderbird’s punky cousin. Dechromed. Stripped down. More attitude than before. Distinctive twin headlights. Straight bars. Any colour you like, as long as it’s black. This is the Thunderbird Storm, the same great chassis as the award-winning Thunderbird, with more power as standard and a harder edged and more distinctive look.

Triumph Thunderbird Storm

New for 2011 is a power cruiser for riders who expect a harder-edge to their ride:
the Triumph Thunderbird Storm.

Powered by a big bore, 1700cc, version of Triumph's acclaimed T-16 parallel twin engine, the
Thunderbird Storm�fs massive 107mm pistons pump out a muscular 98PS, with a meaty 156Nm
of torque at just 2950rpm.

The Thunderbird Storm utilises the chassis of Triumph's award-winning Thunderbird, a cruiser
renowned for its outstanding poise and precision, but is wrapped up in a pared down, punked up look.

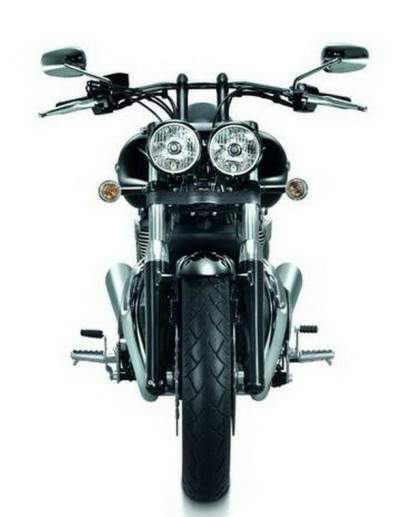

Triumph's iconic twin headlights, made famous on the Rocket III and Speed Triple models, and
drag bars perfectly fit this street rod�fs aggressive nature and are complemented by the deep metallic

Phantom Black or dark Matt Black paint options, and the matching blacked out engine cases.

The low 700mm seat height provides a sumptuous laid back riding, while handling will provide a
pleasant surprise to cruiser and non-cruiser riders alike. Triumph is renowned for its ability to make
fine handling motorcycles and the Thunderbird Storm provides no exception. With 47mm forks up
front and five-way adjustable twin shocks at the rear, the Triumph delivers a compliant and accurate
ride in all conditions, while well appointed twin 310mm floating discs up front are grabbed by powerful
four-piston brakes for progressive stopping power, with optional ABS for increased rider security.

Sporting Metezeler Marathon tyres, developed especially for the Thunderbird range, adorn five-spoke
cast alloy wheels and inspire confidence while cornering.

And while the look may be minimalist, the Thunderbird Storm�fs specification sheet certainly isn�ft.

This power cruiser oozes quality, from the premium components to the neat attention to detail and
a distinctive new Triumph script on the tank, this is a machine for the discerning rider looking for
a distinctive alternative to the mainstream offerings.

The tank mounted speedo includes a comprehensive on-board computer which includes a clock,
two trip meters and fuel gauge, in addition to a small and stylish tachometer. A range of almost
100 accessories are available for the Thunderbird Storm, giving owners the chance to personalise
their bikes to meet their own needs and tastes.

Triumph Thunderbird Storm Highlights

Engine: 1699cc Liquid-cooled, DOHC, Parallel-twin, 270º firing interval

Instruments: Analogue speedometer featuring integrated rev counter, scroll button on handlebars, LCD trip computer, fuel gauge and clock

Exhaust: Chromed twin-skin stainless steel 2 into 1 into 2. Tandem large-volume catalysts in centralised catbox, chrome-plated silencers

- New model for 2011

- Powerful 1700cc version of Triumph's award-winning T-16 engine developing 98PS and
156Nm of torque

- Aggressive blacked-out look with twin streetfighter headlights

- Low, 700mm seat height for classic look and easy riding

- Powerful four-piston brakes with optional ABS

- Two year unlimited mileage warranty as standard

Triumph Thunderbird Storm Features and Benefits

With the award-winning Thunderbird as its base, it’s no surprise that the Storm comes highly specified as standard.

The edgy, stripped down, styling is complemented perfectly by the iconic twin headlights, made famous on Triumph’s legendary Rocket III and Speed Triple models, give the Thunderbird Storm a street rod look straight from the box.

And while the look may be pared back, the spec sheet certainly isn’t. With a 1700cc parallel-twin at its heart the Thunderbird Storm is a power cruiser that packs a mighty punch. The tank mounted speedo includes a small built in tacho and on-board computer which includes clock, two trip meters and a fuel gauge. The low maintenance belt drive system delivers the torque smoothly and cleanly, while the cycle parts ooze class and quality. Anti-lock brakes are also an option for the Thunderbird Storm, offering extra security and safety to the rider and passenger.

Engine
Liquid-cooled, DOHC, parallel twin, 270 degree firing interval 1,700cc delivers tree stump pulling torque and power.

Chassis
Supple suspension for mile eating. A finely calibrated system which blends effortlessly to complement the bike's looks. Rear adjustable for preload, it's ready to go - one up or two. Dual front discs deliver smooth and progressive braking. ABS available too.

Instruments
Class leading instruments, tank mounted. Large speedo, tacho, two trip meters and fuel gauge in a chromed nacelle with unique Thunderbird logo.

Seats
Just 700mm off the ground. Well padded and comfortable with a range of seat accessories for even more comfort. Fly solo or attach the pillion seat for two-up fun.
