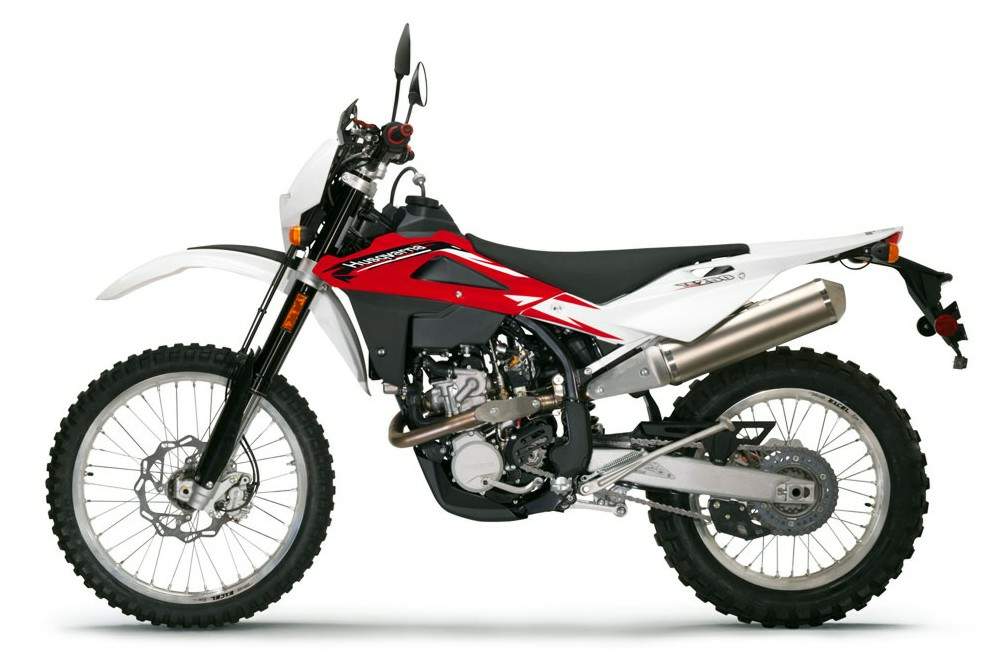

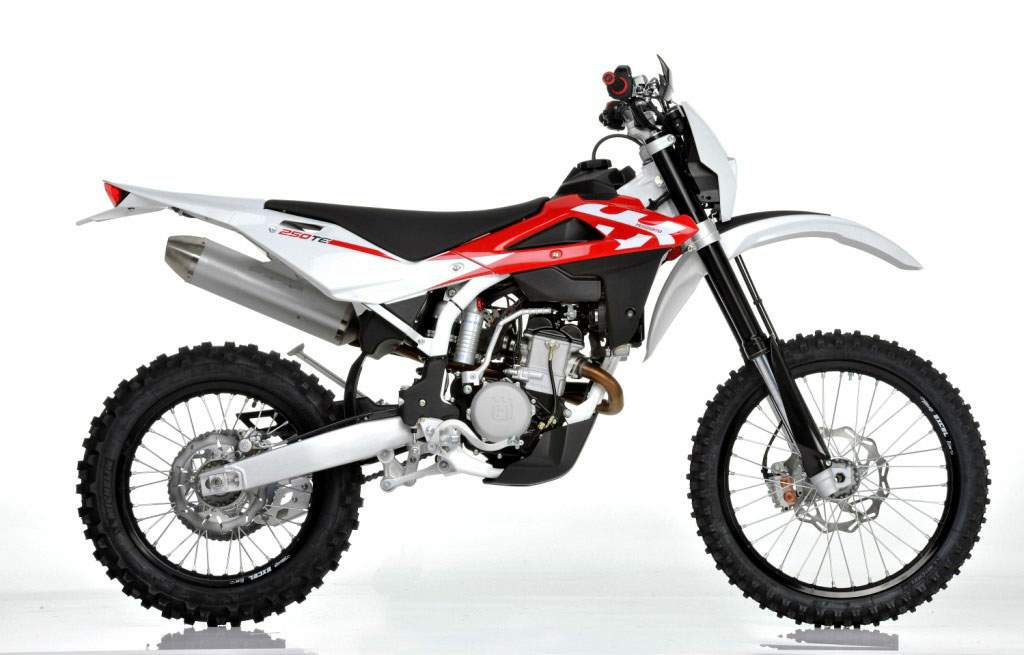

Husqvarna TE 250
|
Make Model |
Husqvarna TE 250 |
|
Year |
2012 |
|
Engine |
Liquid cooled, four stroke, single cylinder,
DOHC, 4 valves per cylinder. |
|
Capacity |
249 |
|
Bore x Stroke |
76 x 55 mm |
|
Compression Ratio |
12.9;1 |
|
Induction |
Electronic Fuel Injection |
|
Ignition /
Starting |
C.D.I. electronic, with variable advance
(digital control) / electric and kick |
|
Spark plug type |
NGK CR 8EB
|
|
Spark plug gap |
0.7 mm
|
|
Clutch |
Transmission: Wet
|
|
Max Power |
|
|
Max Torque |
|
|
Transmission /
Drive |
6 Speed / chain |
|
Gear Ratio |
1st: 28,205 2nd: 22,721 3rd: 18,803
4th: 15,329 5th: 12,974 6th: 11,491 |
|
Frame |
Steel single tube cradle (round, rectangular and
ellipsoidal tubes); rear frame in light alloy |
|
Front Suspension |
Marzocchi USD telescopic hydraulic fork with
advanced axle compression and rebound stroke adjustment Fork leg
diameter 48mm 300 mm fork travel |
|
Rear Suspension |
Sachs Progressive Soft Damp type with
single hydraulic shock absorber, spring pre-load adjustment. Compression and
rebound adjustment (compression stroke - double adjustment)
296 mm rear wheel travel |
|
Front Brakes |
Single 260mm “BREMBO”, fixed disc type
with hydraulic control and floating caliper |
|
Rear Brakes |
Single 240mm “BREMBO”, floating disc |
|
Front Tyre |
90/90-21 |
|
Rear Tyre |
120/80-18 |
|
Seat Height |
909 mm / 35.8 in |
|
Dry-Weight |
107 kg |
|
Fuel Capacity |
7.2Litresl / 1.9 gal. |
The 2012 Husqvarna TE250 and TE310 both get
revised suspension with stiffer 48mm open cartridge forks and rear shock
from Kayaba. Exclusive to the U.S. market, the 2012 Husqvarna TE250 has been
lowered through new suspension settings, dropping the seat height by two
inches to 35.8 inches. Husqvarna says will the lower height will appeal to
shorter riders and help distinguish the TE250 from the TE310.
The 2012 Husqvaran TE449 and TE511 also get revised stiffer suspension, as
well as a more streamlined wiring harness and new one-piece rear fender. New
WP radiators have also been added to improve engine cooling.
|
