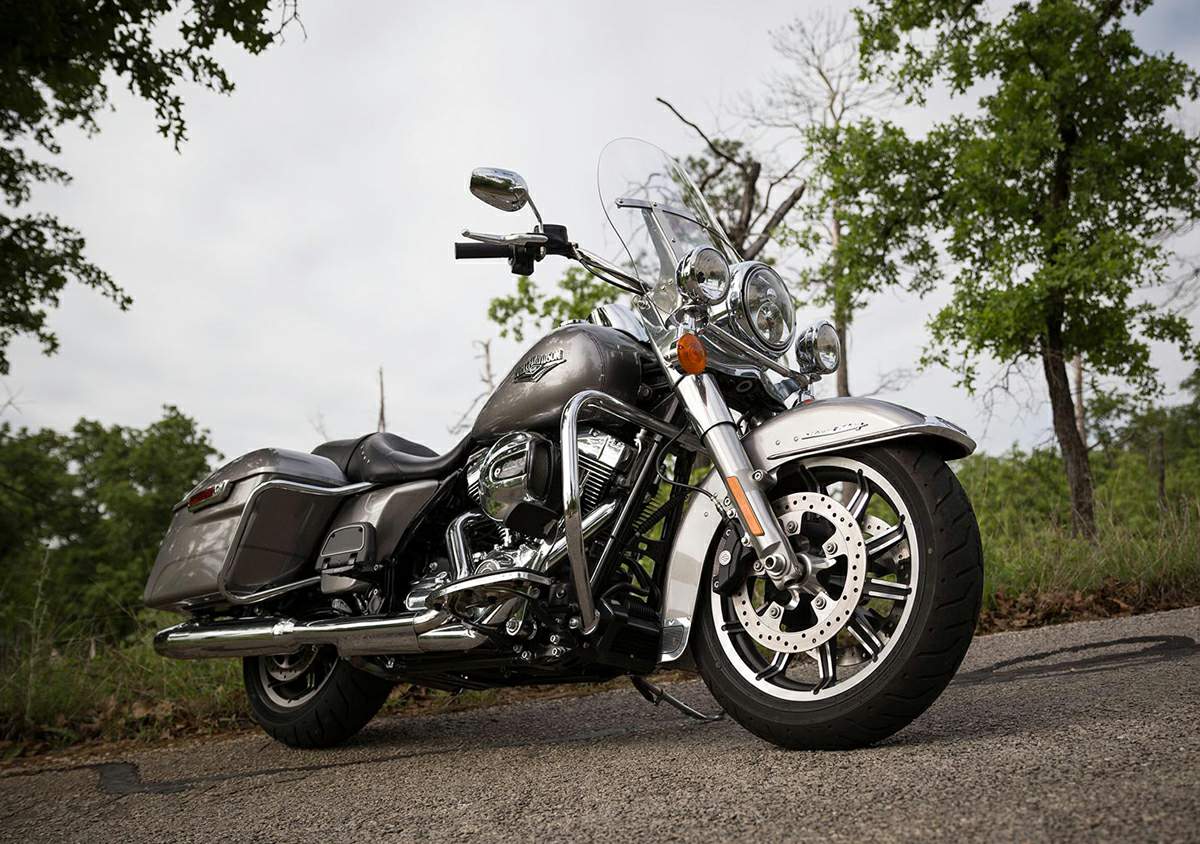

Harley Davidson FLHR Road King



.

Make Model

Harley Davidson FLHR Road King

Year

2016

Engine

Four stroke, V-Twin, 'Twin Cam 103 with integrated oil cooler'

Capacity

1690 cc / 103.1 cub in.
Bore x Stroke 98.4 x 111.1 mm
Cooling System Air cooled
Compression Ratio 9.7:1
Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Ignition

Single-fire, non-wasted, map-controlled spark ignition
Starring Electric

Max Torque

138 Nm / 14.1 kgf-m /102 ft/lb @ 3500 rpm

Transmission

6 Speed
Final Drive Belt
Primary Drive Chain, 34/46 ratio
Gear Ratio 1st 9.593 / 2nd 6.65 / 3rd 4.938 / 4th 4.0 / 5th 3.407 / 6th 2.875
Frame Mild steel, square-section backbone with twin downtubes
Lean Angle, Left 31º
Lean Angle, Right 33º

Front Suspension

41.3 mm telescopic, cartridge-style damping

Rear Suspension

Short, air-adjustable shock

Front Brakes

2 x 292 mm disc, 4 piston caliper

Rear Brakes

Single 292mm disc, 4 piston caliper
Wheels Optional Style Type Tubeless Chrome Aluminum Profile Laced
Front Wheel Impeller cast aluminum
Rear Wheel Impeller cast aluminum

Front Tyre

130/80B17 65H

Rear Tyre

180/65B16 81H

Rake 26°
Trail 170 mm / 6.7 in
Dimensions Length  2450 mm / 96.5 in
Wheelbase 1625 mm / 64 in
Seat Height Unladen  715 mm / 28.1 in.
Ground Clearance 135 mm / 5.3 in
Gross Vehicle Weight Rating 617 kg / 1360 lbs
Dry Weight 353 kg / 777 lbs

Wet Weight

371 kg / 814 lbs
Ground Clearance 135 / 5.3 in
Oil Capacity 3.8 Litres / 4.0 US qts

Fuel Capacity

22.7 Litres / 6.0 US gal

Enhanced by Project RUSHMORE, the Harley-Davidson Road King® is a touring motorcycle for the rider who prefers the look of a classic windshield to that of a fairing. New features include the more-powerful High Output Twin Cam 103™, brighter Dual Halogen headlamp and halogen fog lamps, new Impeller wheels, restyled hard saddlebags and a new easier-to-read speedometer. Reflex™ Linked Brakes with ABS are a new option for the Road King. Its air-adjustable touring rear suspension and a comfortable seating position are just what rider and passenger demand for long-distance comfort.

The innovative Harley-Davidson® Touring chassis, based on a single-spar, rigid backbone frame and a stout swingarm developed to withstand the demands of long-haul touring riders and today's more-powerful engines.

Harley-Davidson has created a new generation of American freedom machines. In the largest scale new model launch in the company's 110-year history, Project RUSHMORE encompasses eight new motorcycles that feature improved power and braking performance, enhanced rider ergonomics, and dramatic styling updates that completely redefine and fundamentally transform the touring motorcyclist's experience.

Countless ideas. Thousands of hours of research and testing. Eight extraordinary motorcycles. Project RUSHMORE introduces technology and design enhancements that will recalibrate the expectations of the touring motorcyclist: Savvy electronic controls and infotainment. Aerodynamics born in the wind tunnel. Bodywork shaped by the most-respected styling team in the industry. Comfort good for endless miles and, of course, more American V-Twin power. The road trip will never be the same.

Project RUSHMORE is the result of an entirely new way to produce motorcycles. In a process that invokes the voice of the customer throughout an accelerated development program, the ideas and dreams of thousands of motorcyclists are allowed to percolate with those of Harley-Davidson employees.

"Project RUSHMORE is a pure expression of our relationship with our customers and a shared passion for riding motorcycles," said Mark-Hans Richer, Harley-Davidson Senior Vice President and Chief Marketing Officer. "It's resulted in some outstanding innovations, but from day one we've been focused on taking the total rider and passenger experience to the next level. We get there together, we come together - to quote the Beatles - through a process that uses not just formal feedback, but the kind of input we get from listening to customers out on the road, in the real world, and then blends that with our engineering and styling expertise. For years at Harley-Davidson we've been saying that we ride with you. Project RUSHMORE elevates that devotion to a higher level."

Respect the heritage, but move it forward. That was the mission of the Project RUSHMORE team tasked with restyling the Harley-Davidson Touring and Trike models. Form and function progressed together as stylists working alongside engineers devised new shapes that are crisp and modern, aerodynamic, lighter in weight, and pleasing to touch. The styling team influenced every aspect of the new motorcycles, from the contours of the iconic Batwing fairing to the tactile feel of new hand control switches, and bring complete continuity to the design aesthetic. The motorcycles are undoubtedly new, yet undeniably Harley-Davison.

"When we got this assignment, we knew that we were messing with the Holy Grail of motorcycles," said Brian Nelson, lead stylist on Project Rushmore. "We don't do trend bikes, or fashion-statement motorcycles. We try to make something that will last forever. But we also have an obligation to move the brand forward, to make it look and function better. Project RUSHMORE was a tremendous opportunity to enhance many facets of these Harley-Davidson models."

Features

NEW Paint color options
NEW High Output Twin Cam 103™ Black powder-coated powertrain with chrome covers with oil cooler
NEW Hydraulic clutch actuation
NEW Dual Halogen headlight
NEW One-Touch Design: A functional element applied to the Tour-Pak® case, saddlebags and fuel tank door permits latching and unlatching with a press or pull of a finger.
NEW Restyled injection-molded hard saddlebags with One-Touch design latch
NEW Ergonomic hand controls with intuitive design and improved tactile feel
NEW 49 mm telescopic front forks, stiffer triple clamps and larger steering bearings
NEW Streamlined, low profile front fender
NEW Redesigned saddlebag guard creates more passenger leg room
NEW speedometer with 3 percent wider numbers; display screen features odometer, trip A, trip B, clock, range to empty, tachometer, and gear indicator
NEW Impeller Cast Aluminum wheels
NEW Floating open front brake rotors
• Chrome 2-1-2 dual exhaust with tapered mufflers
• Clean rear fender and low mount license plate module with LED illumination
• Stainless steel, ergonomic handlebar
• One-piece, two-up Road King® seat, sculpted for added comfort and easier straddling
• Clear, large quick-release detachable windshield

• Integrated oil cooler
• 6-speed Cruise Drive® transmission with integrated Isolated Drive System (IDS)
• Dunlop® “Multi-Tread” rear tire construction extends tire life by 25 percent
• ir-adjustable rear shocks
• Full-length rider footboards
• Six-gallon fuel tank
• Electronic cruise control
• Optional Harley-Davidson® Factory Security System with hands-free security fob
• NEW Optional Reflex™ Linked Brakes with ABS
• NEW Optional chrome laced wheels with wide whitewall tires

Project RUSHMORE - Engine

As every rider knows, the engine is at the heart of the experience of riding a motorcycle. The amount of torque and horsepower it delivers over the RPM range is in direct proportion to the feeling it gives you when you roll on the throttle. We know what riders want from a motorcycle engine because we’ve been building them for 110 years. Project RUSHMORE gave us the opportunity to dial it in just right. We conducted thousands of road tests with real riders giving us feedback to build the next iteration of the legendary Harley-Davidson® engine. The consensus was: We want more. More low-end torque, more passing power, more perfection in the tone of the exhaust note, more of the feeling we ride a motorcycle for. So we built the engines that deliver it. We’re proud to unveil the next level of Harley-Davidson® V-Twin engine. And prove once and for all, the customer is always right.

Pure Harley-Davidson® Styling

Feast your eyes on the Twin Cam 103™ engine and there's no mistaking its roots. This is authentic Harley-Davidson style through and through with an attention to detail you won't find from any other motorcycle company. Black powder-coated heads and cylinders are highlighted by machined cooling fin tips and chrome rocker covers. It's a jewel machined out of metal. Pure. Dripping with power. From the classic edge of the cooling fins to the clean lines of cases and covers—the Twin Cam 103™ engine makes an ironclad statement about holding on to what's right and staying true to what satisfies.

Six-Speed Cruise Drive® Transmission

You want a ride that rumbles—not begs for mercy—when you lean on it a little. The Six-Speed Cruise Drive® transmission provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine turnover and road speed. And the Isolated Drive System makes acceleration flow in a smooth, steady stream from your wrist right down to the pavement. It's a rare ride when a bike responds like this, and a low growl goes a long way when you're opening up the road ahead.

Twin Cam 103™ Engine Heritage

The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it was put to good use when we created the Twin Cam 103™; engine. We sweated bullets perfecting every cubic inch, pushing design and technology forward. And we did it all without compromising one bit of Harley-Davidson's unique styling. Evolved, yet carrying on the legacy of the Flathead, Knucklehead, Panhead, Shovelhead, Evolution®, Twin Cam 88®; and Twin Cam 96™ engines that came before. The performance and durability are a direct result of the untold miles logged on the V-Twin since 1909, and the proud heritage that comes from a century's worth of commitment to life on two wheels.

Twin Cam 103™ Engine Innovation

Fire up the Twin Cam 103™ engine and feel the low-end torque unleashed. Thanks to the lightweight piston design, delivery of the added power is more refined than ever. Then put your foot on the shifter and feel how the engine and Six-Speed Cruise Drive® transmission were designed to work together. Six speeds. A strong driveline and strong internal parts. Low routine maintenance. And a low cruising rpm couldn't feel better.

Twin Cam 103™ Engine Power

Live your ride to the power of Twin Cam 103™. The air cooled Twin Cam 103™ Harley Davidson® engine delivers more stump pulling torque, while its Electronic Sequential Port Fuel Injection jetting gives crisp, lively throttle reaction. It’s a performance punch that you’ll appreciate when passing, climbing hills, or rolling with luggage packed or a passenger in back—all under that signature Motor Company rumble. And it comes at lower cruising rpm, so you ride more smoothly, with less engine vibration and better highway fuel economy.

Project RUSHMORE - Confidence

Here are some of the innovations The Rider Project led to: the new Reflex® Anti-lock Braking System (ABS) with Linked Brakes, new dual halogen and LED headlamps and fog lamps, brighter Tour Pak® lighting, brighter turn signals, brighter brake lights, and a new steering head with stiffer front forks. Locked-up tires are now history even when there’s wet pavement. We’ve made it feel even better to lean your way through a turn. Now you can see better. And we’ve made you more conspicuous to the cage-driving public. Because one thing we all agree on is this: Bikes that work better make riders who ride better. Take a ride. See how good you can be

Reflex® Linked Brakes with Anti-lock Braking System

No doubt about it, there are times riding when you need to haul things down in a hurry. And you don’t get to pick those times. Or decide whether or not they occur when you’re on a flat, smooth, dry, perfect new stretch of pavement. That’s why our touring models feature the new Reflex® anti-lock braking system (ABS) with dynamically, electronically linked brakes. ABS turns a locked up front wheel or a rear wheel skid into a relic from riding’s history. And the front and rear brakes are electronically linked to provide exactly the right amount of brake to each tire no matter what the road condition is. No matter how good you are, this will make you a better rider.

New Steering Head and Front Forks

Whether it’s a big sweeping curve or a set of tight turns, getting through the corners just got better. We stiffened up the front end, increased the fork diameter to 49mm and added new steel ball bearings, with lubricant contained inside to keep contaminants out for durability. The responsiveness

Air-Adjustable Suspension

With air-adjustable suspension that comes standard, you can dial in your ride to accommodate heavier or lighter payloads, battle unexpected road conditions or simply set it to how you like to roll. The lighter the load, the softer you can go by decreasing the air pressure a bit, or increase the air pressure for a more firm ride. A convenient air valve is located between the saddlebag and rear fender for quick adjusting. It's all about rider and passenger comfort and setting your bike to fit your taste—the easy way.

Brembo® Brakes

Confidence. Control. High-performance dual disc Brembo® brakes offer consistent stopping power at all speeds. The 4-piston front and rear caliper with dual front rotor brake system is state of the art and top of the line. It's just another way The Motor Company puts a high level of detail into their bikes to give you peace of mind throughout your journey.

Dunlop® Multi-Tread™ Tires

The 180mm back tire is engineered to do more than fill out the rear fender and put a bigger patch of rubber on the road. Dunlop® Multi-Tread™ technology uses harder compounds at the center and softer on the sides for a tire that still knows how to knuckle-down on corners. Perfect for making this bike agile on every curvy stretch of road. And the way it feels going through an abrupt off-camber turn will put a grin on your face that'll last to the next state line.

H-D® Smart Security System (Optional)

The factory installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It's this attention to details and security that make Harley-Davidson® motorcycles unique.

New ergonomically designed hand controls

It’s hard to enjoy the ride or keep your eyes focused on what’s coming down the road when you’re fussing and bothering with the switches on your handlebar. So we’ve worked over the hand controls on our new touring bikes with as much passion as we’ve worked over our new engine. We made the shape more ergonomic and located and angled them to fall right under your thumbs. We’ve added left-hand cruise for easy activation, an easily locatable trigger switch to control and scan through functional readouts. And we’ve improved the feel to give you a confidence-inspiring click at every push of a button. And it’s all prewired for parts and accessories, which even lets you customize with less fuss and bother.

Dual Halogen Headlight and Fog Lamps

When the sun goes low, the amount of road you have your eyes trained on stays high .Sitting inside that classic Hiawatha nacelle, you got a new dual halogen headlamp and halogen fog lamps to match. Boasting a higher quality of light than previous models courtesy of a darkness-defying 986 lumens, they ensure you’ll have no trouble seeing everything out there that needs to be seen.

Project RUSHMORE - Styling

Project RUSHMORE is the journey we set out on to take our touring motorcycles to places never imagined before – to turn all the possibilities for what a motorcycle can be now into true Milwaukee steel. We did it our way, as we’ve always done. As riders. Riding with other riders. Thousand of hours, countless road tests, millions of miles. Looking for the technology and innovations that truly make the ride better. We went over the bike fender tip to fender tip. Making it work better. Making it look sleeker. Modern. Clean. Tight. Let your eye take the journey over the machine. This is classic Harley-Davidson style and an all-new look at the exact same time. At Harley-Davidson, form has always followed function. And both have always reported to emotion. Now we’re just doing it on a completely different level.

Low Mounted License Plate

We keep the back end clean and classy with a low mounted license plate that features little visible hardware. As an extra touch, we throw some LED lighting around the tag for crisp visibility and style—just enough to give your tail end a glow when you're riding through the night. This completes the classic, uncluttered look of the Road King® model.

Classic Fuel Tank

Part of the unmistakable style of the Harley-Davidson® Road King® motorcycle is plenty of room for showing off your paint. This classically styled, bold six-gallon fuel tank doesn't just give you a bigger canvas for premium or custom paint; it holds six gallons of go so you can eat up a lot more road between pit stops. A dual-color paint scheme and unique Harley-Davidson waterslide graphics give this bike a truly one-of-a-kind look.

Classic Hiawatha Headlamp

Big and commanding, this headlamp hearkens back to the Big Twins of the 60s. You get nothing less than the latest in materials and technology. Clear-lens reflector optics provide a longer distance high beam and wider low beam. It's a bright, striking daytime lamp that blasts a little further into the night. There's just no beating the classic lines of that sweeping headlight nacelle.

New Tank And Fender Badges

This isn’t just a motorcycle. It’s a work of art, born out of passion, creativity and long days, late nights and refusing to be satisfied until every detail was perfect. When we added the signature, we did it with metal. Nothing else would be right on this masterpiece.

Agitator Chrome Wheels

The Road King® motorcycle rides on custom Agitator 7-spoke, mirror-chrome wheels wrapped in classic wide white wall tires. And there's a new brake rotor designed to show more of the wheel and a cut back front fender that uncovers more of the white wall tire. Nostalgia, meet the cutting edge of street custom.

Project RUSHMORE - Comfort

The comfort of our machines has been dialed in the hard way: Over 110 years and thousands of miles in all kinds of conditions on every kind of street, road and highway ever laid down in pavement. Long hours in the saddle are the only way there is to learn what you need to know about things like airflow, heat management, seat materials and textures and the amount of effort it takes to pull a clutch lever. We don't stop until we build the most comfortable machines you can throw a leg over. We all want to go farther, and when you and your rider are more comfortable in the saddle, you can.

Full-Length Footboards & Toe/Heel Gear Shifts

Your boots were made for riding—any way you see fit. Our full-length footboards boast a time-tested, tried-and-true design and rubber isolation for a comfortable ride, while the height-adjustable passenger boards add another level of customizable comfort for your riding partner. And for shifting gears, you can use either the traditional toe-shift or the even easier, more convenient heel-shift. It might take a few rides, but once you've gotten used to the smooth shifting rhythm, you'll never give it up.

Two-Up Road King® Seat

A classic feature revamped for contemporary looks and performance—without sacrificing an ounce of nostalgic style. Sculpted with a deep bucket and narrow neck this ultimate Touring saddle relieves pressure on your thighs, while providing more back support and comfort for a wide variety of rider sizes. And the lower seat height—26.5 inches to be exact—puts your feet closer to the road to enhance your confidence. Additionally, the leather trim and premium stitching accentuate the advanced ergonomics while giving the seat that sharp detail you only find on a Harley-Davidson® motorcycle. It's science in service of comfort, and your way to beat fatigue over the long haul.

Wide Set Handlebar

Classic style and maximum comfort. That's the perfect balance of the wide set handlebars that come standard on the Road King® Classic model. They're designed to keep you comfortably propped in a commanding position while making sure your neck muscles stay calm and relaxed mile after mile, state after state. Durable stainless steel insures the structural rigidity you expect from a Harley-Davidson® motorcycle with the deep, lustrous finish you desire.

Detachable Windshield

Go from touring to cruising in a heartbeat. Detach the screen for a clean, cool cruising style, or re-attach it in seconds for a clean envelope of air over the long haul. The windshield is as tough as they come—durable, scratch resistant, low maintenance. And whether you choose to have it on off, your Road King® Classic motorcycle rules with a nostalgic style and versatility you can make your own.

Standard Cruise Control

Installing cruise control is standard operating procedure on the new touring models because riding long stretches of unbroken highway is standard operating procedure among touring riders. Electronic throttle control means no cable cluttering up your handlebar. And the switches are placed where you can easily dial in your speed with your left thumb, give the wrist a break, and keep hauling on down the road.

Project RUSHMORE - Convenience

If you want the ride to be truly epic, you have to sweat bullets to make the little things work exactly right. This is what Project RUSHMORE was all about. Now you have saddlebags that can be easily opened with one hand. Compartments that open with one touch. And we’ve increased the storage space on these new machines without ruining the sleek, road-eating look of the bike. It all adds up to hundreds of little moments where things just click conveniently into place. Because there can be no imperfections in the quest for the perfect ride.

One Touch Design Philosophy

Here’s the rule we laid down for every compartment cover and saddlebag lid on our touring line: if it doesn’t open with the single touch of a button or one hand, while wearing gloves, it doesn’t go on the motorcycle. Because in all our conversations with all the riders we talked while we were rebuilding these motorcycles from the ground up, we didn’t encounter a single individual who wanted to have to put something on the ground before he could store it in a saddlebag.

New Saddlebag Design

Don’t let the sleek new look of these saddlebags deceive you. The look is tight on the outside, but things just got a little roomier on the inside. You want stuffability and these deliver bigger than ever. The hinges are simple and clean and the lids they open with one touch of one hand. The lock is tight and integrated into the latch where you can put the key in without the danger of scratching your premium paint. Welcome to the next level of the bagger.
