Ducati Monster 796

.

Make Model

Ducati Monster 796

Year

2013

Engine

Four stroke, 90° “L” twin cylinder, SOHC, desmodromic 2 valves per cylinder

Capacity

803 cc / 49.0 cu in
Bore x Stroke 88 x 66 mm
Compression Ratio 11.0:1
Cooling System Air cooled

Induction

Siemens electronic fuel injection, 45mm throttle body

Ignition

Marelli electronic

Starting

Electric
Exhaust: Lightweight 2-1-2 system with catalytic converter with twin lambda probes

Max Power

64 kW / 87 hp @ 8250 rpm

Max Torque

78.5 Nm / 8.0 kgf-m 58 lb-ft @ 6250rpm
Clutch APTC wet multiplate with hydraulic control

Transmission

6 Speed
Final Drive Chain; front sprocket 15; rear sprocket 39
Gear Ratio 1st 32/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26
Primary drive Straight cut gears; ratio 1.85:1
Frame Tubular steel trellis

Front Suspension

Showa 43mm upside-down forks

Front Wheel Travel

120 mm / 4.7 in

Rear Suspension

Progressive linkage with fully adjustable Sachs monoshock with piggy back aluminum swing arm

Rear Wheel travel

148 mm / 5.8 in

Front Brakes

2 x 320mm Discs, 4 piston calipers

Rear Brakes

Single 245 mm disc, 2 piston caliper

Front Tyre

120/70 -ZR17

Rear Tyre

160/55 -ZR17
Rake  24°
Trail 87mm / 3.42 in
Wheelbase 1450 mm / 57.1in
Seat Height 800 mm / 31.5 in

Dry Weight

167 kg - 369 lbs  / 169 kg -373 lbs ABS version
Wet Weight 187 kg / 412 lbs

Fuel Capacity

15 L / 4.0 USgal / 3.3 Imp gal (13.5 L / 3.6 US gal / 3.0 Imp gal ABS version)

Consumption Average

5.2 L/100 km / 19.1 km/l . 45 US mpg / 54 Imp mpg

Standing ¼ Mile

12.1 sec

Top Speed

200.4 km/h / 124.5 mph
Instrumentation Digital unit displaying: Speedometer, rev counter, clock, scheduled maintenance warning, oil temperature, trip fuel, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, overrev, immobilizer. Ready for DDA system.
.

The Monster 796 is the perfect synthesis between sports performances, aesthetics and daily riding pleasure. Cared for in each single detail, it is the ideal bike for each riding style and represents the utmost evolution of the Monster family.

The Monster family introduces the 796, an exciting addition to the line-up that combines the user-friendliness of the 696 with the sports character of the 1100. Delivering 87hp (64kW), a dry weight of just 167kg (368lb) and optional ABS, the stylish new Monster 796 returns the magic of mid-range to the Monster family.

With the brand new Desmodue 796 engine at the heart of the machine, a single-sided swingarm and revised ergonomics, the Monster 796 perfectly balances lifestyle performance with everyday functionality to enhance the original Monster spirit.

Dressed in Ducati red, arctic white silk or diamond black silk with a bright red Trellis frame, the Monster 796 can be further personalised with an additional 10 colour schemes available in ‘Logomania' the innovative Monster Art program.

The Monster 796 opens a new road to the world of Ducati Monster and becomes the ‘urban icon' of hand-built Italian naked motorcycles.

Urban icon
The Monster 796 is the 'urban icon' of the range, combining the user-friendliness of the 696 with the sports character of the 1100EVO. Delivering 87hp (64kW), a dry weight of just 167kg (368lb) and optional ABS, the stylish Monster 796 injects the magic of mid-range into the Monster family.

With the smooth and capable Desmodue 796 engine at the heart of the machine, a single-sided swingarm and user-friendly ergonomics, the Monster 796 perfectly balances lifestyle performance with everyday functionality to enhance the original Monster spirit.

Monster spec
With a seat height of 800mm (31.5in) and the combination of seat shape and raised handlebars, posture is optimized and comfort enhanced. The low weight and optional ABS inspires confidence and makes life simpler in the city for the mid-range Monster.

Suspension up front is handled by user-friendly 43mm Kayaba forks, while the sporty Ducati single-sided rear swingarm is controlled by a single rear Sachs unit with adjustable spring preload and return damping for passenger load optimisation.

Twin 320mm semi-floating discs are gripped by radially mounted 4-piston Brembo callipers to provide powerful and progressive front-end braking with rider-friendly 'feeling', while the rear is equipped with a 245mm disc and 2-piston calliper, also by Brembo. The Monster 796 offers the added option of ABS to further underline the model's focus on ease of use and everyday security.

The 17" wheels are in the five 'Y-shape' spoked style and produced in lightweight aluminium to keep the unsprung weight low and handling, braking and acceleration performances high. To differentiate the 796, the wheels sport a stylish pin-stripe for 60° of the circumference of the rim which creates a full circle of red when in motion. They roll on the same 180/55 rear and 120/70 Pirelli Diablo Rosso II tyres enjoyed on the 1100EVO.

Desmodue engine
Maintaining the smooth and enjoyable character, famous of all Desmodromic L-Twins, the 796 Desmodue power unit has a 66mm stroke crankshaft, instead of the 696's 57.2mm, and a lightweight 848-type flywheel that helps to maximise power to an impressive 87hp (64kW) @ 8250rpm and torque to 58lb-ft (78Nm) @ 6250rpm. An oil cooler is fitted to protect power delivery by maintaining optimum efficiency.

The 803cc swept volume is compressed to a ratio of 11:1, compared to the 696's 10.7:1, then injected and ignited by Siemens controlled electronics. The 2-1-2 catalytic exhaust system uses twin lambda probes and regulating valve to provide finer fuel mapping and Euro 3 conformity. The system's lightweight and compact design is achieved by using 1mm thick tubing and terminates in twin lateral mufflers.

An APTC "wet" clutch gives a "slipper" type action that prevents destabilising of the rear-end under aggressive down-shifting and also gives the extra benefit of a super-light feel at the lever, an advantage in stop-start city traffic.

Controls
The Monster 796 has enhanced comfort and control with bar-risers gripping sturdy tapered section aluminium handlebars. Integral type Brembo master cylinders are used for both the clutch and brake systems and maintain a clean handlebar arrangement for the rider. They are fitted with user-friendly, 4-point adjustable levers that provide easy-to-reach control for all hand sizes and the APTC clutch offers a superlight lever action ideal for use in the city.

796 colours and style

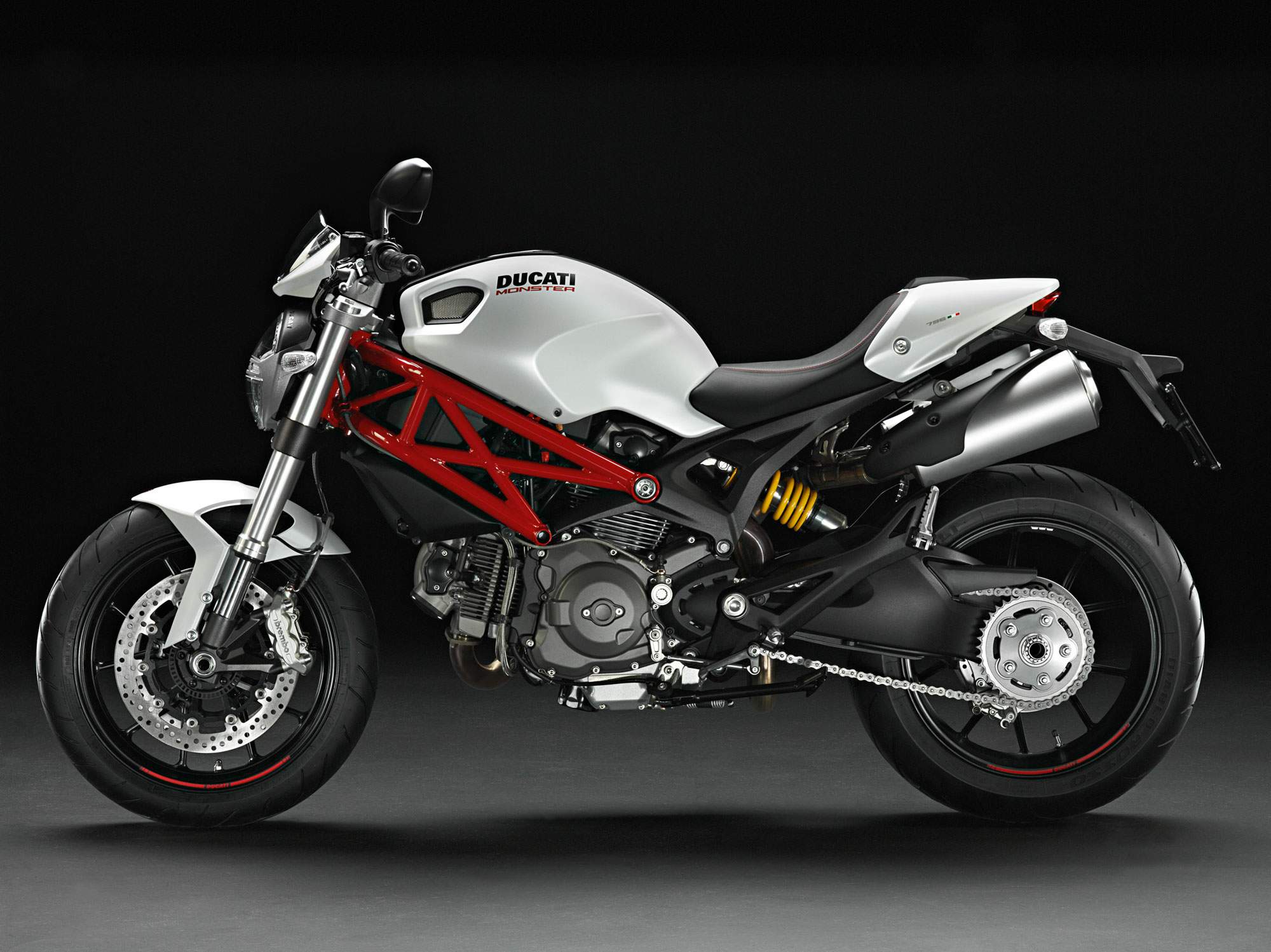

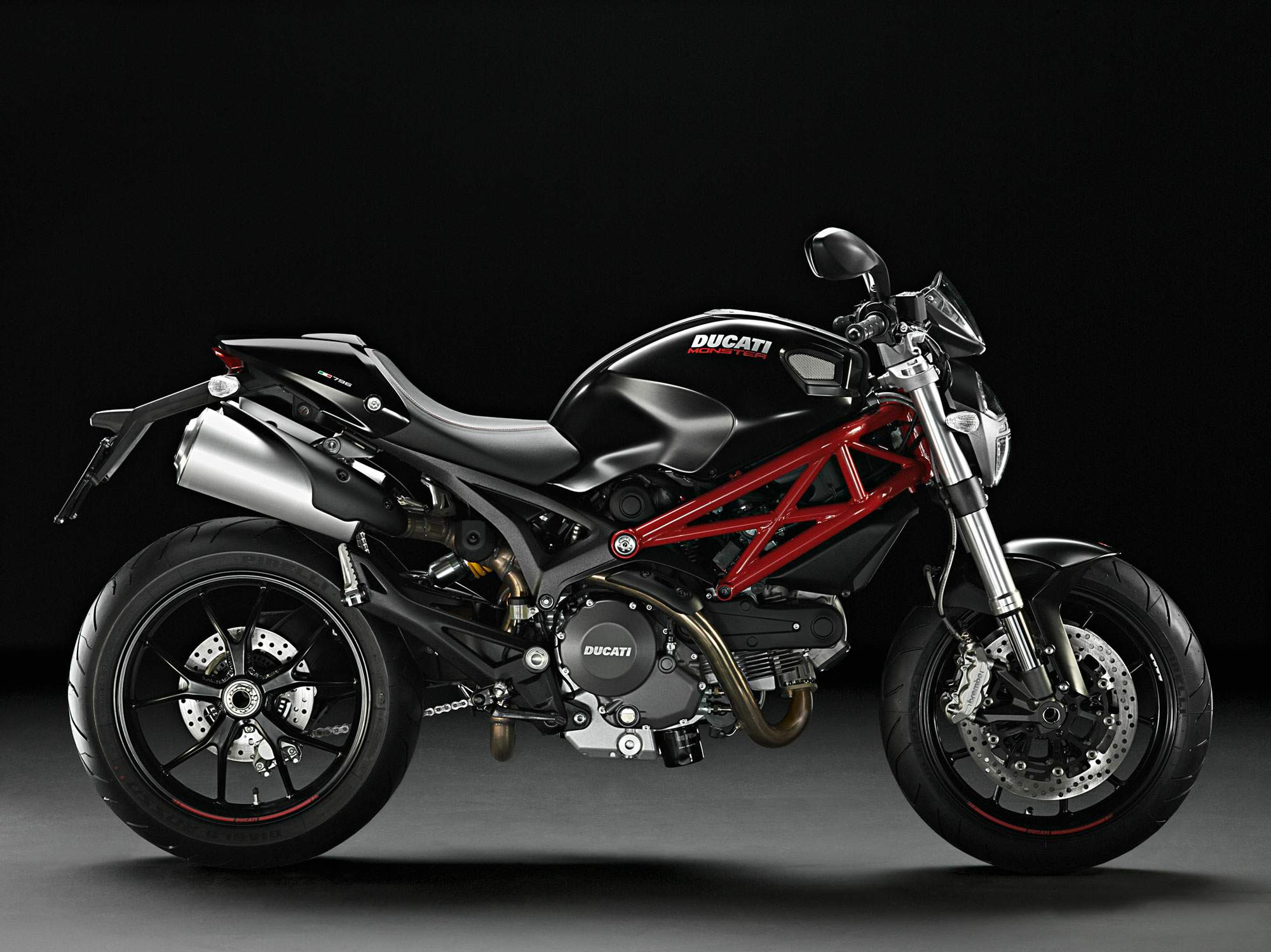

The Monster 796 comes in traditional Ducati red, arctic white silk or diamond black silk with all three colours against a red Trellis frame and black wheels, which feature a red flash around 60° of the rim side, creating a red stripe at speed. Additional features include footrest hangers finished in matte black to match the rear sub-frame and single-sided swingarm, the Ducati logo on the front mudguard and the Tricolore displayed proudly on the single-seat cover and fuel tank. The Monster 796 can be further personalised from a choice of additional colour schemes available within the innovative Monster Art program.

The Monster 796 is fitted with the micro-bikini fairing and single seat cover as standard and features a comfort-enhancing seat shape, further accentuated with stylish red stitching.

The essence of naked
The Monster has revolutionized the world of motorcycling, becoming more than just a simple motorcycle: it's a way of life, it's what makes its riders feel unique. Its customised versions owned by 250,000 enthusiasts have made it a true and proper icon that transcends time. Twenty years after its birth, Ducati celebrates this symbol of style and personality, presenting a unique model: the very first one. An unmistakable style coupled with latest-generation performance: here's the Monster 20th Anniversary, the motorcycle that continues to write history.

Ducati Monster 796 Key Features
Concept
Less is Monster
The 'less-is-more' philosophy behind all Monsters underlines Ducati's never-ending pursuit of genuinely compact, high performance motorcycles, but these new models have succeeded in being even more 'pared down' than their predecessors. Every single component has been redesigned and redeveloped so now more than ever, form follows function. With any details detracting from the Monster concept being eliminated, 'less-is-more' also means 'less-is-Monster'. Less weight plus more torque equals fun-filled riding.

Monster Story
In 1992 Ducati unveiled a new prototype that was to become an icon. Ducati's creation awed the crowds and the world's media of that year's Cologne International Motorcycle show. The 900 Monster was a motorcycle that created a truly new niche - dramatically styled, minimalist in stature yet bristling with innovative engineering solutions. The Monster's radical styling has also provided the inspiration for an entire after-market sector specialising in hot-rod parts for this legendary machine. For this reason, rarely do you see two Monsters the same. This radical and refreshing design departure also influenced other manufacturers but, as the old adage states: imitation is the highest form of flattery... The Monster is characterised by a long and successful history, by its introduction during the years of numerous cylinders and uncountable colour options, but above all by a constant technological evolution that this year brings us to the birth of the last version: the Monster 1100EVO, "The Ultimate Monster".

Engine
796 Desmodue

The 796 engine is a completely brand new, lightweight Desmodue power unit designed to provide the torquey, smooth and enjoyable character famous of all Desmodromic L-Twins.

APTC clutch
The APTC ‘wet’ clutch gives a ‘slipper’ type action that prevents destabilizing of the rear-end under aggressive down-shifting and also gives the extra benefit of a super-light feel at the lever, a great benefit in stop-start city traffic or during longer journeys. The 21-plate oil-bath clutch (11 friction and 10 steel) represents a power-enhancing weight reduction over the ‘dry’ system as well as having a quieter operation and requiring less maintenance.

Lightweight crankcases
The new crankcases hug the gearbox internals much closer to create a smaller and more compact outer profile and achieve considerable weight savings over previous cases.

Exhaust system
Providing a deep and rich exhaust tone within current noise and emissions regulations is no mean feat, but the Monster definitely provides the L-Twin sound famous of Ducati. Its bold, high-level twin mufflers also make a striking style statement.

The exhaust system on Monster 796 has one Lambda probe dedicated to each cylinder, enabling precise fuelling for a smoother power delivery as well as complying with current emission regulations.

Power & torque curves
The Monster 796 produces 84hp (64kW)@ 8250rpm of power and a torque to 58lb-ft (78Nm) @ 6250rpm.

Crankshaft
The crankshaft assembly uses a lightweight 848-type flywheel and has a 66mm stroke instead of the 696’s 57.2mm.

Chassis
Monster Trellis
An immensely strong but light tubular steel Trellis frame with aluminium rear sub-frame is the visual and structural backbone of the Monster. Delivering unparalleled rigidity with minimal mass, the chassis design is pure Ducati in its ingenuity and simplicity. A separate, all aluminium sub-frame saves weight and adds a pleasing continuity with the aluminium footrest hangers and matte finished swingarm.

Lightweight 5-spoke wheels
The extremely lightweight aluminium alloy Y-shaped, 5-spoke wheels reduce unsprung weight and improve agility. The 3.50x17 front wheel is fitted with a 120/70ZR tyre while the rear 5.50x17 wheel has a 180/55ZR. The result is lightweight, precise steering that is extremely responsive at all speeds while giving the vehicle exceptional stability.

Single-sided swingarm
The beautifully shaped single-sided swingarm gives the Monster a ‘tough' look while ensuring higher rigidity, reduced weight and enhanced road holding. The swingarm is chill-cast using aluminium in its most noble form. Gravity cast and heat treated, the component achieves the best mechanical characteristics as well as reduced final weight for improved handling.

Marzocchi forks
Outstanding grip and unbeatable riding comfort are ensured by a 43 mm Marzocchi upside down stanchion fork, which provides 120 mm of suspension travel.

Lightweight construction
Every carefully selected component of the Monster 696 has a net benefit to the overall light weight of the machine. The dry weight of 161kgs (355lb) has dramatic effects on not just manoeuvrability and ease of use, but also by contributing directly to increased performance, braking and acceleration.

Equipment
Stopwatch
The digital display is programmed with a stopwatch function that, when enabled, can be triggered by using the high-beam flash button and each recorded time stored in a memory. After your journey or track session, the times or lap times can be recalled from the memory and scrolled through by using the instrumentation buttons on the left-hand switchgear.

LED taillight
An LED rear light unit satisfies the minimalist, weight-saving design ethos found throughout the Monster 696. The specially designed strip of LED are enhanced by a special diffuser lens to deliver outstanding light clarity and incredible longevity.
For the Monster 1100EVO, even the license plate light uses LED technology.

Headlight
The triple-parabola headlight on the Monster utilises the latest optical technology and advanced construction techniques to provide an incredibly compact lighting package. In spite of its compact size, the headlight throws a broad and deep beam to provide excellent visibility and make night riding safer. Viewed from the side, its discrete silhouette mimics the radical shape of the fuel tank.

DDA ready
The instrument display also doubles as a control panel for the activation of the Ducati Data Analyser (DDA) system, which is available as an accessory from Ducati Performance. The bike has been built ‘system-ready’ for the data acquisition kit, which consists of special DDA software and a memory key that slots into a plug under the seat. The same plug also doubles as the connection for a handy new battery charger available as an accessory from Ducati Performance.

Monster Style
Refined and sophisticated, the Monster 796 is proud to show its unmistakable style as the ‘Italian ambassador' in the world of motorcycling.
The large diameter tube construction flows into the cast aluminium rear sub-frame which matches the matte black rear swingarm and footrest hangers.

The 17" wheels in the five ‘Y-shape' mount a stylish pin-stripe for 60° of the circumference of the rim which creates a full circle of red when in motion.

The bright white illuminated display, the stylish red stitching of the new seat, the italian flag and the new Ducati logo on the front mudguard complete the clean and minimalist style of this new urban icon.

M796 ABS
The Ducati Monster 796 is available with ABS (anti-lock braking system).
Unlike the majority of motorcycle ABS set-ups, this system has the advantage of ensuring a more natural braking ‘feel' for the rider.
The Monster 796 ABS is equipped with ABS, the single seat cover and the neat micro-bikini fairing.

Empowering Controls
The Monster 796 has enhanced comfort and control with 20mm higher bar-risers gripping sturdy tapered section aluminium handlebars. Integral type Brembo master cylinders are used for both the clutch and brake systems and maintain a clean handlebar arrangement for the rider. They are fitted with user-friendly 4-point adjustable levers that provide easy-to-reach control for all hand sizes and the APTC clutch offers a super-light lever action ideal for use in the city.

MONSTER FAMILY FEATURES
Monster frame

An immensely strong but light tubular steel Trellis frame with aluminium rear sub-frame is the visual and structural backbone of all Monsters. Delivering unparalleled rigidity with minimal mass, the frame design is pure Ducati in its ingenuity and simplicity and enables a useful 64 degrees of lock-to-lock steering travel.

The lightweight aluminium sub-frame maintains visual continuity with the footrest hangers and swingarm, and is designed to accept a passenger-friendly grab-rail kit available as an accessory from Ducati Performance. The kit further enhances passenger ride comfort without compromising the Monster's stylish lines.

Monster ABS
The 2013 Monster family offers all 696 and 796 models with optional anti-lock braking system (ABS), while the 1100EVO and Monster Diesel has ABS fitted as standard equipment.

Designed to reduce the risk of wheel-lock under heavy braking or when braking in low grip conditions, the system reads wheel speed data from phonic wheel sensors to detect potential wheel lock. If the wheel speed differential falls below a specific safety limit, the control unit immediately reduces the brake system pressure to the appropriate calliper to avoid wheel lock. The pressure reduction on each individual braking circuit is activated by electronically controlled valves, which then close as the wheel speed differential moves away from a locking scenario.

Monster instrumentation
Looking clean and minimalist in true Monster style, the brightly illuminated display provides all essential data by default, and even more by scrolling with the left-hand switchgear. Data includes speed, revs, time, scheduled maintenance, oil temperature, ABS status (when applicable), DTC status (1100EVO and Monster Diesel only) and battery voltage, while warning lights illuminate for oil pressure, fuel reserve, turn indicators, high beam and neutral selection. In addition, the instruments present a reserve fuel trip, immobiliser status and automatic light-off function after 60 seconds with the key on as well as a memory to store lap times recorded by using the high-beam flash button as a stopwatch.

For the Monster 1100EVO and Monster Diesel, the display also doubles as a control panel for the 4-level Ducati Traction Control system included in the Ducati Safety Package (DSP), in addition to the Ducati Data Analyser (DDA) system, which is available as an accessory from Ducati Performance. All Monsters are built "system-ready" for the data acquisition kit, which consists of a special DDA software and memory key that slots into USB style plug under the seat. The same plug also doubles as the connection for a handy "battery maintainer" available as an accessory from Ducati Performance.

Monster Desmo
The incredible valve performances of the Desmodue engine are made possible because of Ducati's unique Desmodromic system, where valve closure is activated mechanically. At high rpm it would be almost impossible for the valves to follow the steep closure profiles of the cam lobes if they were relying upon normal valve springs. With the Desmo system, the valves are closed mechanically with the same accuracy as they are opened, enabling steep cam profiles and radical cam timings. This system is used on every single Ducati power unit including the race-winning Superbike and Desmosedici GP engines.

Monster quality
Having more experience with twin-cylinder high performance engines than any other manufacturer, the aircooled L-Twin remains central to Ducati's philosophy of motorcycling. This experience, plus constant investment in quality by design, advanced materials and engineering techniques has enabled a distance between service intervals of 7,500 miles (12,000km) making Ducati ownership even more enjoyable
