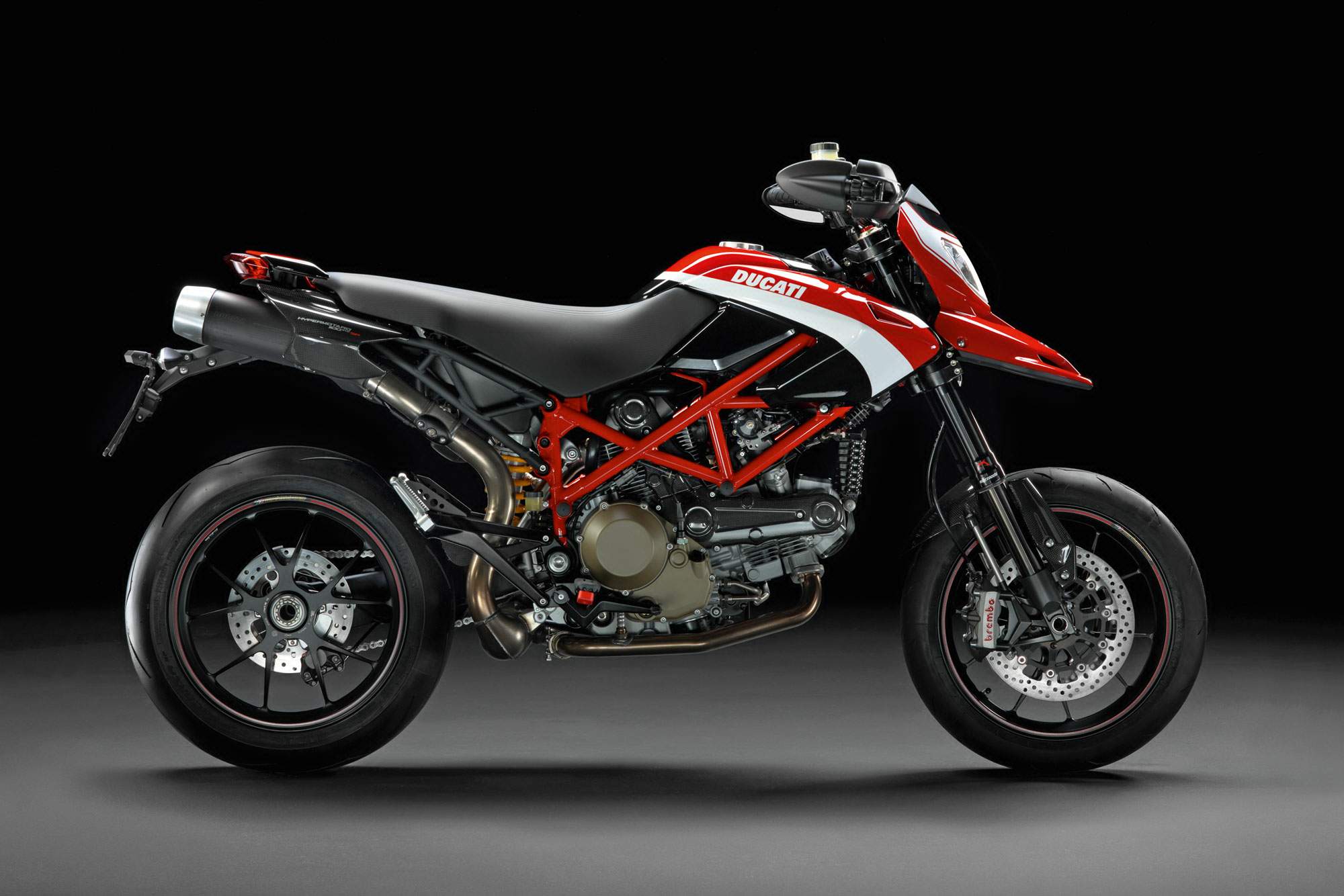

Ducati Hypermotard 1100 EVO SP Corse Edition

.

Make Model

Ducati Hypermotard 1100 EVO SP Corse Edition

Year

2012

Engine

Four stroke, 90° “L” twin cylinder, SOHC, desmodromic 2 valves per cylinder

Capacity

1078 cc / 65.8 cu in
Bore x Stroke 98 x 71.5 mm
Cooling System Air cooled
Compression Ratio 10.0:1
Lubrication Wet sump
Engine Oil Synthetic, 15W-50

Induction

Fuel Injection, 45 mm throttle body
Exhaust Lightweight 2-1-2 system with catalytic converter and lambda probe

Ignition

Marelli electronic
Starting Electric

Max Power

69.9 kW / 95 hp / @ 7500 rpm

Max Torque

102.9 Nm / 10.5 kgf-m / 76 lb-ft @ 5750 rpm
Clutch Dry multiplate with hydraulic control

Transmission

6 Speed
Final Drive Chain, front sprocket 15, rear sprocket 42
Primary Drive Straight cut gears, ratio 1.84:1
Gear Ratio 1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 24/28
Frame Tubular steel trellis

Front Suspension

50mm Marzocchi forks, fully adjustable with DLC
Front Wheel Travel 195 mm / 7.5 in

Rear Suspension

Progressive linkage with fully adjustable Öhlins monoshock. Aluminium single-sided swingarm .
Rear Wheel Travel 156 mm / 6.1 in

Front Brakes

2 x 305 mm Semi-floating discs, radially mounted Brembo Monobloc calipers 4-pistons, 2-pads

Rear Brakes

Single 245mm disc, 2-piston caliper
Front Wheel 5-Spoke in light alloy 3.50 x 17
Rear Wheel 5-Spoke light alloy 5.50 x 17

Front Tyre

120/70 ZR 17, Pirelli Diablo Rosso

Rear Tyre

180/55 ZR 17, Pirelli Diablo Rosso
Rake 24°
Trail 100 mm / 3.9 in
Wheelbase 1455 mm / 57.28 in
Seat Height 845 mm / 33.2 in

Dry Weight

172 kg / 379 lbs

Fuel Capacity

12.4 Litres / 3.3 US gal / 2.7 Imp gal

Consumption Average

4.8 L/100 km / 20.8 km/l / 48.9 US mpg / 58.8 Imp mpg

Standing ¼ Mile

12.0 sec / 178.1 km/h / 110.7 mph

Standing 1000 m

23.3 sec / 201.3 km/h / 125.1 mph

Top Speed

220 km/h / 136.7 mph
.

The 1100EVO SP takes the Hypermotard concept to a new level of extreme. Higher Ground Clearance, higher spec suspension, higher bars and less weight makes the SP track-ready for action.

The 2012 Hypermotard 1100EVO SP will now be available as a Corse Edition, taking the whole Hypermotard concept to a higher level in Ducati Corse style. High Ground Clearance, high spec suspension, new seat aesthetics and high bars make the 1100EVO SP Corse Edition track-ready for action in full red, white and black Ducati Corse official livery. The 2012 Hypermotard 1100EVO SP is available immediately.

All 2012 models will have a revised, comfort-enhanced rider’s seat with an increased front and rear length.

Hyper thrill, Corse style
The Hypermotard 1100EVO SP Corse Edition takes the whole Hypermotard concept to a higher level of extreme in style. High Ground Clearance, high spec suspension, high bars and less weight makes the 1100EVO SP Corse Edition track-ready for action and dressed for the part in full Ducati Corse official colours.

When Ducati first launched the Hypermotard project they knew that there would be extreme riders out there who wanted more – they just didn't realise there would be so many! With a racing heritage built on direct rider feed-back Ducati's reputation for listening to owners to improve their motorcycles has become legendary and the Hypermotard 1100EVO SP Corse Edition is no exception.

Extreme riders all wanted the same thing from the Hypermotard: More power, more Ground Clearance, more control in extreme situations, more detail and less weight. Ducati’s engineers ticked all the boxes.

SP suspension
Long, black-bodied, fully adjustable 50mm Marzocchi forks have 30mm (1.2in) more travel than the 1100EVO and increase the SP's Ground Clearance by 30mm (1.2in), extending the SP's extreme cornering performance and providing a more track-oriented set-up. Coated with a durable low friction, DLC (diamondlike carbon) black coating, the sliders enable the Hypermotard 'SP' to respond effortlessly to every minute variation in the tarmac, improving on its already impressive road holding. The advanced 'SP' suspension is further enhanced with an Öhlins remote reservoir rear shock, renowned in racing as the ultimate performance choice. This incredible shock is fully adjustable for compression and rebound damping as well as spring pre-load, ensuring that the 'SP' is readily adaptable to every riding style and road or track it challenges.

SP brakes
With a bike as extreme as the Hypermotard 1100EVO SP Corse Edition, superior stopping power is fundamental, so world-class braking performance is assured by using the same Brembo Monobloc callipers as on Ducati's top Superbikes. Machined from a single piece of alloy, the callipers achieve a higher rigidity and resistance to distortion during extreme braking, which not only delivers incredible braking power, but also provides an enhanced and precise 'feel' at the brake lever. The twin Monobloc callipers, each with four 34mm pistons gripping 305mm discs, guarantee spectacular braking performance.

SP lightweight wheels by Marchesini
Extreme riders know that one of the best ways to improve the handling and performance of a motorcycle is to reduce its unsprung weight by upgrading to superior lightweight wheels. Even from a distance, the 5-spoke black Marchesini wheels with red pin-striping confirm the high performance of the Hypermotard 1100EVO SP Corse Edition. Created from forged then machined alloy, both front and rear wheels are significantly lighter and create a lower moment of inertia and unsprung weight, resulting in improved acceleration and braking as well as quicker steering. Mounted to the lightweight wheels are Z-rated Pirelli Diablo Supercorsa SP tyres. Designed to deliver racing performance on the road, they give great feedback, are stable under severe braking and feature a sure-footed 'feel' when braking or accelerating is applied at considerable lean angles.

SP extras
The Hypermotard 1100EVO SP Corse Edition has serrated footpegs for increased boot grip during extreme conditions and a Teflon slider under each peg for protection in extreme lean angles. Ducati include a rubber insert with the bike for riders who prefer to cover the serration for increased comfort.

To enhance control, the tapered alloy handlebars have a 20mm longer bar-riser than the 1100EVO which effectively changes the riding positioning to enable greater leverage under extreme riding conditions. The risers are finished in black along with the new Marzocchi forks, upper and lower fork clamps, footpeg carriers and pedals, exhaust guard, rear subframe and rear sprocket carrier.

A carbon fibre rear hugger is fitted as standard equipment, enhancing the SP's already extreme image and also providing protection for the Öhlins rear suspension unit. The advanced composite is also used for the fork protectors, timing belt covers, front fender rear section and tail side covers.

Hyper data
Supplied as standard equipment on the 1100EVO SP Corse Edition, the Ducati Data Analyser (DDA), which includes PC software, a USB-ready data retrieval card and instructions, enables owners to review and analyse the performance of the bike and its rider, and make comparisons between various channels of information.

The system records numerous channels of data including throttle opening, vehicle speed, engine rpm, engine temperature, distance travelled, laps and lap times. It also automatically calculates engine rpm and vehicle speed data, enabling it to display gear selection as an additional channel of information. At the end of a ride or track session, up to 4mb of data can be downloaded ready to compare, analyse and get an inside view of the performance of both the rider and the Hypermotard.

SP Corse Edition colours
The Hypermotard 1100EVO SP Corse Edition is proudly finished in Ducati Corse’s official colours of red, white and black further underlining its competition intention.

The brand new scheme has a red Trellis frame with black wheels and the Ducati Corse logo proudly displayed on the Hypermotard's beak section.

Ducati Hypermotard 1100 EVO SP Corse Edition Key Features and Benefits
CONCEPT

Hyper Story - When the prototype Hypermotard was first shown at the 2005 Milan show it represented the creation of a new segment, one that bridged the gap between refined sportbikes and minimalist supermotards. But some at Ducati had reservations about the initial Hypermotard concept and were unsure if people were ready for such a motorcycle.

Despite those reservations, the project continued, driven by the belief in the upright and in-control riding position of a dirtbike, but not the harsh characteristics of its single cylinder engine. These confident few designed a bike that combined the agility and lightweight precision of a supermotard with the refined power characteristics of a charismatic L-Twin sportbike.

Ducati presented the prototype Hypermotard at Milan and was rewarded with a 'Best of Show' award. The innovative Hypermotard spawned a new 'cross-over' category that had reinvented pure riding pleasure with a practical and versatile motorcycle that could be used every day.

Hyper design - Minimalism and functionality have shaped and styled the Hypermotard, and its innovative design sets it apart from the crowd. The line of its distinctive beak blending into the stylish headlamp fairing makes it instantly recognizable, while the carefully shaped tank that tapers into a skinny waistline gives a supermotard feel when aboard.

From the sturdy look of the Marzocchi front forks to the Ducati signature single-sided swingarm and underseat exhausts, the Hypermotard’s design remains unique and pure Ducati.

Hyper concept - The Hypermotard concept created an innovative segment that bridged the gap between hyper-sports bikes and supermotards. In essence, it took the high speed handling and smooth engine from a hyper-sport bike and combined it with the aggressive styling, lightweight minimalism and slow corner precision of a supermotard.

The result is an easy to handle motorcycle with unbelievable agility, incredibly sure-footed handing and a flexible engine that deals with city traffic just as easily as a spirited ride through the winding mountain roads.

SP philosophy - The 1100EVO SP takes the whole Hypermotard concept to a new level of extreme. Higher Ground Clearance, higher spec suspension, higher bars and even less weight makes the SP track-ready for action and impressive enough to wear the Ducati Corse logo.

When we first launched the Hypermotard project we knew that there would be extreme riders out there who wanted more – we just didn't realise there would be so many! With a racing heritage built on direct rider feed-back, and two years of Hypermotard category in our Italian-based Ducati Desmo Challenge series, we’ve built a reputation for listening to owners and the new SP spec is the result.

Extreme riders all wanted the same thing from the Hypermotard: More power, more Ground Clearance, more control in extreme situations, more detail and less weight. Now, our engineers have ticked all the boxes with a model intended to perform on the track as well as the street.



ENGINE
Desmodue Evoluzione - The 1100 L-Twin stands at the pinnacle of more than three decades of Desmo air-cooled development and its torquey power delivery has excited riders worldwide.

The Desmodue Evoluzione combines reduced weight and increased power to make it the perfect engine for the Hypermotard 1100EVO. New crankcases, a lighter crankshaft assembly and a new magnesium alternator cover combine with the use of lightweight rare-earth magnets in the alternator assembly to achieve the staggering weight reduction of 5.3kg (11.7lb). The clutch and alternator covers are finished in carbon grey for the 1100EVO and in gold for the 1100EVO SP.

A redesigned cylinder head with improved inlet port shape for optimum flow also combines a modified combustion chamber shape for improved burn efficiency. This improved efficiency is the result of a higher compression ratio and a new single spark per cylinder ignition, now managed by high-speed Siemens electronics.

Constant investment in quality by design, advanced materials and engineering techniques has enabled a distance between service intervals of 12,000km (7,500 miles) making Ducati ownership even more enjoyable than ever.

Vacural® crankcases - The 1100's crankcases are now vacuum cast using the same Vacural® technology employed for the lightweight Superbike engines, a process that achieves significant weight saving and ensures consistent wall thickness and increased strength.

Exhaust system - Conforming to Euro3 regulations, the 2-1-2 exhaust system is monitored by twin lambda probes to ensure the most efficient fuel injection under all conditions. The exhaust terminates with Ducati-famous twin under-seat mufflers.

Oil cooler - A new oil cooler with 85% more cooling area protects the increased power output of the Hypermotard 1100EVO whether ridden on the open roads or through stop-start urban traffic.

Dry clutch - In keeping with its extreme character, Ducati continue to use the 'dry' racing-style clutch for the Hypermotard 1100, the popular preference of thousands of Ducatisti the world over.

Crankshaft - The 1100 now has a lighter crankshaft assembly by using an 848-style Superbike flywheel.

CHASSIS
Trellis frame - An improved frame layout eliminates almost all of the forged elements used on previous Hypermotards, replacing them with precision machined components. The lightened frame retains its torsional strength to become even more agile and easier to handle than before. Through decades of racing and development, Ducati has proven that innovative chassis engineering and evolutionary frame advancements win races. The tubular Trellis frame, used on every Ducati motorcycle, is a signature design element. This unique Ducati frame is light, rigid and beautiful thanks to its ingenious Trellis design and use of high quality ALS 450 tubing. Each tube is mitred and micro-fusion welded in a complex triangulated pattern and our incredibly strong L-Twin engine cases are functional 'stressed members' of the chassis.

Single-sided swingarm - The rear suspension of the Hypermotard uses Ducati's signature Hypermotard single-sided swingarm. The robust solution contributes considerable engineering style and, on this type of motorcycle, is a feature unique to Ducati.

Brembo Monobloc brakes - With a bike as extreme as the Hypermotard 1100EVO SP, superior stopping power is fundamental, so world-class braking performance is assured by using the same Brembo Monobloc callipers as on Ducati's top Superbikes. Machined from a single piece of alloy, the callipers achieve a higher rigidity and resistance to distortion during extreme braking, which not only delivers incredible braking power, but also provides an enhanced and precise 'feel' at the brake lever. The twin Monobloc callipers, each with four 34mm pistons gripping 305mm discs, guarantee spectacular braking performance.

Marchesini 5-spoke wheels - One of the best ways to improve the handling and performance of a motorcycle is to reduce its unsprung weight by upgrading to superior lightweight wheels. Even from a distance, the 5-spoke black Marchesini wheels with red pin-striping confirm the high performance of the Hypermotard 1100EVO SP. Created from forged then machined alloy, both front and rear wheels are significantly lighter and create a lower moment of inertia and unsprung weight, resulting in improved acceleration and braking as well as quicker steering.

Öhlins rear suspension - The Öhlins remote reservoir rear shock, renowned in racing as the ultimate performance choice, is fully adjustable for compression and rebound damping as well as spring pre-load, ensuring that the 'SP' is readily adaptable to every riding style and road or track it challenges.

Long travel Marzocchi forks - Brand new longer, black-bodied, fully adjustable 50mm Marzocchi forks have 30mm (1.2in) more travel and increase the SP's Ground Clearance by 35mm (1.38in), extending the SP's extreme cornering performance and providing a more track-oriented set-up. Coated with a durable low friction, DLC (diamond-like carbon) black coating, the sliders enable the Hypermotard 'SP' to respond effortlessly to every minute variation in the tarmac, improving on its already impressive road holding.

Brembo front brakes - Twin 305mm semi-floating discs gripped by radially mounted 4-piston Brembo callipers provide powerful and progressive front-end braking with that all-important rider-friendly 'feeling'.

EQUIPMENT
Carbon fibre - A carbon fibre rear hugger is fitted as standard equipment, enhancing the SP's already extreme image and also providing protection for the Öhlins rear suspension unit. The advanced composite is also used for the fork protectors, timing belt covers, front fender rear section and tail side covers.

Racing details - Serrated footpegs give increased boot grip during extreme conditions and a Teflon slider under each peg provides protection in extreme lean angles. The SP’s bar risers are finished in black along with the new Marzocchi forks, upper and lower fork clamps, footpeg carriers and pedals, exhaust guard, rear subframe and rear sprocket carrier. The Hypermotard 1100EVO SP is boldly finished in a choice of red-themed or white-themed Ducati Corse livery to underline its competition intention. Both colour schemes have red Trellis frames with black wheels and the new Ducati Corse logo proudly displayed on the Hypermotard's beak section.

Empowering controls - The upright seating position offers a commanding view of the road ahead, while the wide, tapered section handlebars make the bike effortlessly flickable. The full length seat lets you easily slide fore and aft movement for extreme riding.

Compact instruments - The white back-lit display provides an extensive amount of data including speed, revs, time, oil temperature, battery voltage, A & B trips, fuel reserve trip and scheduled maintenance, while the warning lights illuminate for neutral, turn signals, high-beam, rev-limit, oil pressure and fuel reserve. In addition, it can list recorded lap times by using the high-beam flash button as a stopwatch.

Stopwatch - The digital display is programmed with a stopwatch function that, when enabled, can be triggered by using the high-beam flash button and each recorded time stored in a memory. After your journey or track session, the times or lap times can be recalled from the memory and scrolled through by using the instrumentation buttons on the left-hand switchgear.

Lighting - The headlamp uses a highly compact lighting shape which blends with the single piece nose fairing and front fender moulding, while the rear light employs a specially designed strip of LEDs enhanced by a high diffusion lens shaped into the sleek lines of the tailpiece. The same LEDs are intensified under braking. The front directional indicators also employ the latest in LED technology for illumination, and are ingeniously integrated into the handguards which support the foldable rear view mirrors. The high intensity LED rear light assembly is moulded into a unique tailpiece positioned high behind the seat.

Innovative mirrors - The challenge of maintaining a clean, racing look around the handlebar area, motivated the design of the folding mirror concept which is based on the handguards typically found on off-road bikes. Flipped out for high visibility street mode and easily folded in for a quick change to ‘Hypermode’, the mirror handguard assemblies also integrate the LED directional indicators for an even cleaner front-end.

Empowering controls - To enhance control, the tapered alloy handlebars have a 20mm longer bar-riser that effectively changes the riding positioning to enable greater leverage under extreme riding conditions. The position offers a commanding view of the road ahead and the full length seat lets you easily slide fore and aft for extreme riding.

Minimalist switchgear - The slim-line switch bodies house easy-to-use switches and buttons and feature a unique weapons-like 'trigger catch' that slides down to cover the starter button when the kill-switch is activated.

Compact instruments - The white back-lit display provides an extensive amount of data including speed, revs, time, oil temperature, battery voltage, A & B trips, fuel reserve trip and scheduled maintenance, while the warning lights illuminate for neutral, turn signals, high-beam, rev-limit, oil pressure and fuel reserve. In addition, it can list recorded lap times by using the high-beam flash button as a stopwatch.

Highlights
The hype continues


The 2012 Hypermotard family continues to shape the sector it created, innovatively bridging the gap between refined sportbikes and minimalist supermotards with the accessible Hypermotard 796, the exciting Hypermotard 1100EVO and the extreme, track-ready and stylish new entry of the Hypermotard 1100EVO SP Corse Edition.

The Hypermotard prototype was an instant success when first shown and soon became a top seller when its production started in 2007. Since then, its unique design has excited riders around the world and praise for this thrilling and versatile bike has never stopped – and neither has its evolution. Today, the range remains as Hyper as ever from the user-friendly 796 to the new 1100EVO SP Corse Edition.

Both the 796 and 1100EVO are offered in Ducati red with matching beak section, red frame and black wheels, while the 796 extends the options further with matte black or matte white with matte black beak, black frame and black wheels. The Hypermotard 1100EVO SP Corse Edition is proudly dressed in the full Ducati Corse official colours, appropriate with its track-ready character.

HYPERMOTARD FAMILY FEATURES
Lightweight Trellis frame

The quick and precise handling that the Hypermotard provides is down to the construction and geometry of its famous Trellis frame. Its ability to handle the abundant torque from the L-Twin engine and its rigidity under powerful Brembo braking are just a few reasons why Ducati's chassis department would never want to change it.

Light and powerful engines
The engine department went back to the drawing board for the 796 and started with a clean sheet of paper.

Their complete redesign of the crankcases rewarded them with an incredible weight saving and the 796 crankshaft, with 848-style flywheel, reduced weight even further to become a very credible package.

The 1100 air-cooled Desmodue Evoluzione engine truly was an 'evolution' – both in power and weight – and is responsible for the model name extension 1100 EVO. Engineers used the same Vacural® technology employed for the lightweight Superbike engines when they vacuum die-cast the Hypermotard 1100 crankcases, a process that achieves a significant weight saving and ensures consistent wall thickness and increased strength. This process and a lightweight crankshaft assembly reduced the 1100’s engine weight by a staggering amount and combined with a boost to 95hp delivers impressive results.

Compact and efficient, the Desmodue engine's hyper-lightweight and narrow L-Twin layout, no wider than a single cylinder, ensures that all Hypermotards remain lean and agile. The air-cooled design eliminates the need for water radiators, hoses, reservoirs and pumps, keeping the motorcycle's weight down to a minimum and its lines clean and race-like.

Desmo
The incredible valve performances of the Desmodue engine are only possible because of Ducati's unique Desmodromic system, where valve closure is activated mechanically. At high rpm it would be almost impossible for the valve to follow the steep closure profile of the cam lobe if it were relying upon a normal valve spring. With the Desmo system, the valve is closed mechanically with the same accuracy as it is opened, enabling steep cam profiles and radical cam timings. This system is used on every single Ducati
power unit including their world-beating Superbike and Desmosedici MotoGP engines.

Hyper mirrors
Ducati pushed motorcycle design limits to find an innovative solution for the original Hypermotard mirrors and these are used throughout the family. The challenge of maintaining a clean, racing look around the handlebar area motivated the design of the folding mirror concept which is based on the handguards typically found on off-road bikes. Flipped out for high visibility street mode and easily folded in for a quick change to 'Hypermode', the mirror handguard assemblies also integrate the LED directional indicators for an even cleaner front-end.

Controls and instrumentation
The slim-line switch bodies house easy-to-use switches and buttons, and feature a unique weapons-like 'trigger catch' that slides down to cover the starter button when the kill-switch is activated. Their minimalist design fits perfectly in the clean and essential lines of the Hypermotard's sporting image.

Looking clean and purposeful, the display provides an extensive amount of data including speed, revs, time, oil temperature, battery voltage, A & B trips, fuel reserve trip and scheduled maintenance, while the warning lights illuminate for neutral, turn signals, high-beam, rev-limit, oil pressure and fuel reserve. In addition, it can list recorded lap times by using the high-beam flash button as a stopwatch. Both the 1100EVO and 1100EVO SP Corse Edition use a white back-lighting while the 796 uses an orange back-lighting.

The instrument display also doubles as a control panel for the activation of the Ducati Data Analyser (DDA) system, which is available as an accessory from Ducati Performance for the 'system-ready' Hypermotard 796 and 1100EVO and supplied as standard equipment on the 1100EVO SP Corse Edition. The DDA-intended USB connection port under all of the Hypermotard seats doubles as a charging point for a handy battery charger, which is available as an accessory from Ducati Performance.

Lighting and indicators
The headlamp uses a highly compact lighting shape which blends with the single piece nose fairing and front fender moulding, while the rear light employs a specially designed strip of LEDs enhanced by a high diffusion lens shaped into the sleek lines of the tailpiece. The same LEDs are intensified under braking. The front directional indicators also employ the latest in LED technology for illumination, and are ingeniously integrated into the handguards which support the foldable rear view mirrors.

Tailpiece
The high intensity LED rear light assembly is moulded into a unique tailpiece positioned high behind the seat. The supporting structure has been designed so that the under tray of the tailpiece is formed perfectly to offer a sturdy pair of pillion grab-handles. This ingenious solution not only helps to merge the rear light into the Hypermotard styling but also provides a safe grip for the passenger.

Footpegs
Rider footpegs on all of the Hypermotard models have removable rubber inserts to expose the serrated metal edge and increase boot grip on the peg during extreme riding. The 1100EVO and 1100EVO SP Corse Edition provide a further minimalist and no-compromise feature by having removable passenger footpegs.

This attention to detail enables a clean 'monoposto' look when on the track, while allowing a fast and easy change to 'biposto' for the street.
