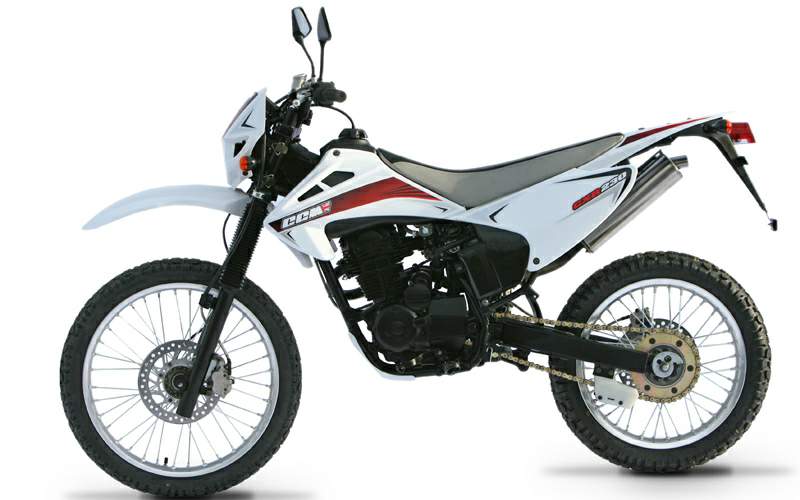

CCM C-XR 230E

.

Make Model.

CCM C-XR 230E

Year

2009 - 10

Engine

Four stroke, single cylinder, SOHC

Capacity

230 cc / 14.0 cu in
Bore x Stroke 67 x 65 mm
Compression Ratio 9.2:1
Exhaust System Steel, single, EURO III
Cooling System Air and oil

Lubrication

Wet sump

Ignition

Electronic ignition CDI

Starting

Electric

Battery

12V 7Ah

Max Power

13.1 kW / 18 hp @ 8500 rpm

Frame

Tubular welded steel, aluminium swingarm

Transmission

5 Speed

Final Drive

Chain, 520

Front Suspension

Ø40 mm Telescopic forks

Rear Suspension

Single shock - adjustable preload

Front Brakes

Single disc

Rear Brakes

Single disc

Front Tyre

80/100-21

Rear Tyre

110/100-18

Wheelbase

1350 mm / 53.1"

Ground Clearance

340 mm / 13.4"

Seat Height

800 mm / 31.5"

Dry Weight

118 kg / 260 lbs

Fuel Capacity

8.8 L / 2.3 US gal

Colours

White with red and black

The updated CXR230 is now Euro III emissions homologated and boasts a new engine with a single overhead cam, other enhancements include a striking white colour scheme which is sure to make this already popular model even more attractive.

As before the CXR230 comes in trail specification as standard with supermoto wheels being offered as an optional extra.

The C-XR 230 cc is excellent value for money, offering an enduro, supermoto and entry level MX machine in one punchy package, which comes with the luxury of an electric start as standard.
