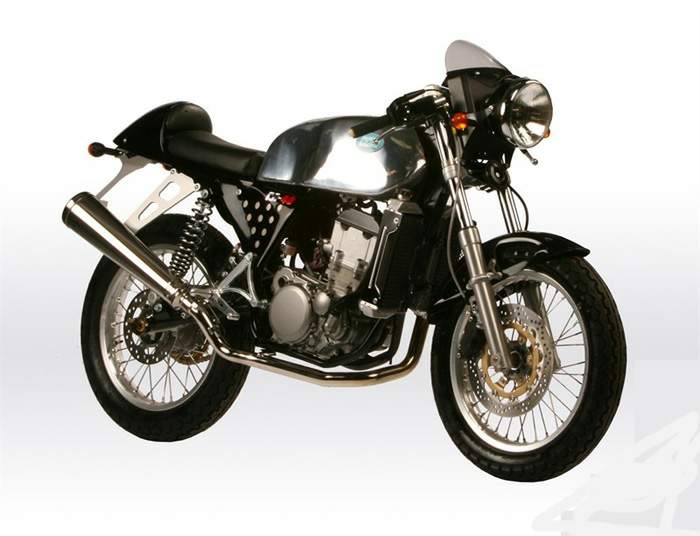

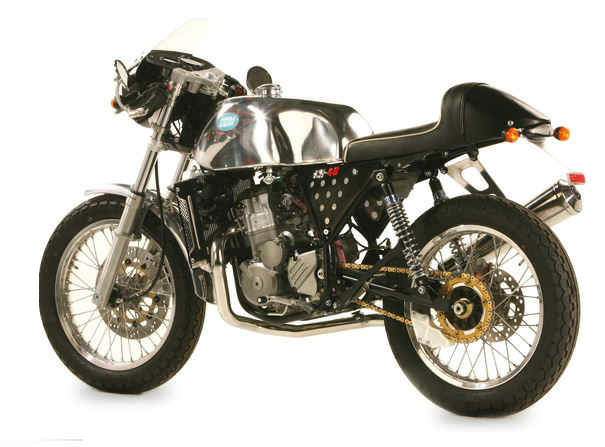

CCM C-R 40

.



Make Model.

CCM C-R 40

Year

2007

Engine

Four stroke, single cylinder, DOHC, 4 valve (Suzuki DR-Z400)

Capacity

398 cc / 24.3 cu in
Bore x Stroke

90 x 62.6 mm.

Compression Ratio

11.3:1

Cooling System

Liquid cooled

Induction

Mikuni BSR36 carburetor

Ignition

Digital CDI

Starting

Electric

Max Power

29.2 kW / 40 hp @ 8500 rpm

Transmission

5 Speed

Final Drive

Chain

Frame

Tubular steel frame and subframe

Front Suspension

Paioli Ø40 mm telescopic fork

Rear Suspension

Twin Hagon Ø360 mm fully adjustable shocks

Front Brakes

Single Ø310 mm disc

Rear Brakes

Single Ø260 mm disc

Front Tyre

TT 100 K81

Rear Tyre

TT 100 K81
Seat Height 800 mm / 31.5"

Dry Weight

130 kg / 287 lbs

Fuel Capacity

14 L / 3.7 US gal

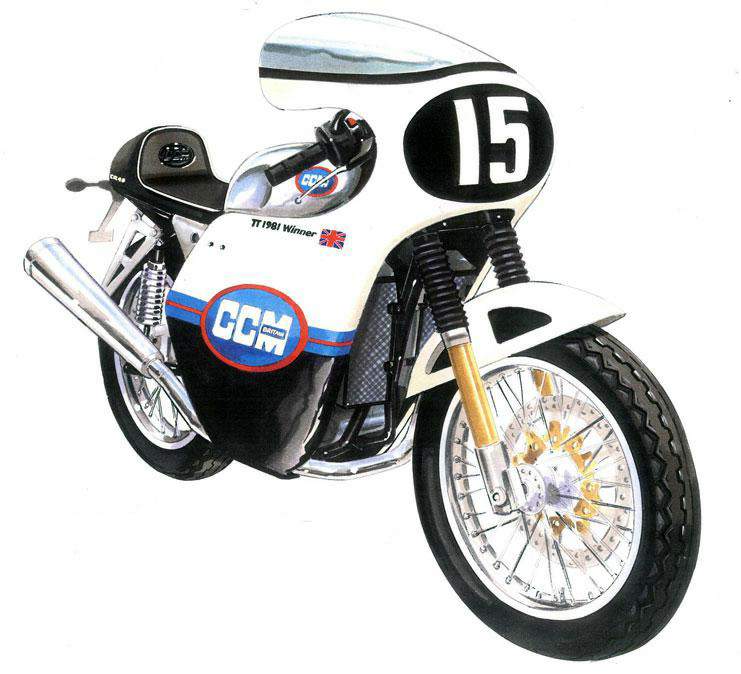

The new 400cc Café Racer is a tribute to the 1981 TT winning CCM ridden by Steve Tompkins.
