Make Model |
Aprilia ST 125 |
|
Year |
1982-83 |
|
Engine |
Liquid cooled, two stroke, single cylinder |
|
Capacity |
124 |
|
Bore x Stroke |
52.8 mm x 57mm
|
|
Compression Ratio |
14.5;1 |
|
Induction |
28 Dell'Orto PHBH AS
|
|
Ignition /
Starting |
Electronic / kick |
|
Clutch |
Multi-disc oil bath
|
|
Max Power |
|
|
Max Torque |
|
|
Transmission /
Drive |
6 Speed / chain |
|
Frame |
Double cradle tubular steel |
|
Front Suspension |
Marzocchi 32mm non-adjustable |
|
Rear Suspension |
Swingarm with single shock absorber |
|
Front Brakes |
Single 230mm disc |
|
Rear Brakes |
160mm Drum |
|
Front Tyre |
2.75-18 |
|
Rear Tyre |
3.00-18 |
|
Seat Height |
800mm
|
|
Dry-Weight |
104 kg |
|
Fuel Capacity |
|
The Route 125, called ST 125,
125th Street was the first produced in April and therefore can be defined
without a doubt the ancestor of all roads - 125 and - subsequently produced
by Noale. Presented at the Milan Show in November 1981, ST 125 was marketed
only since October 1982, almost a year long wait, but justified by the
desire of April to present an advanced, but above all reliable.
125 First Street Aprilia bike was a slim and elegant, but certainly far from
exasperation rather technical and aesthetic, especially in color, which
characterize the road Aprilia in the years ahead. ST had in fact a rather
conventional for its time line, where the young sixteen already dreaming of
motion with partial fairings that I was so fashionable at the time - and tip
the front windshield - and Aprilia conservatively suggested as an option on
its 125 first road only during the period of 1983 and that we will see the
evolution of the series only since 1984 (STX 125).
ST therefore still presented as a bike-light, but unlike other age 125,
which provided the emotions that were expected from their old-fashioned
look, ST was certainly a nice surprise, thanks to the technical content that
made it a movement superior in terms of driveability and performance.
Price in 1983: Lire 2,495,000 turnkey. Available colors: pearl white,
metallic gray, red and black pearl.

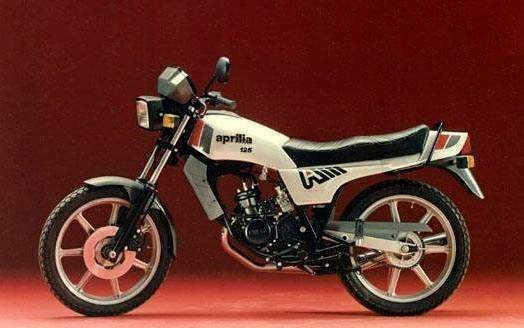

The bike soon
Although no fairing and front tip, the appearance of the ST is still nice
and very elegant. The instrumentation appears well maintained and equipped
with several indicators of service, although the light "oil" is pure
presence, as the ST has no automatic mixer and then to separate oil tank for
the mixture. Very well made electrical controls on the handlebar and the
Magura very practical to adopt one of four key services: power, seat, tank
and anti-theft cap column.
Cycling
The first road Aprilia chassis is a conventional double-cradle tubular
closed with substantial reinforcements behind the headstock. If the 32mm
Marzocchi fork is rather conventional, the same can not be said for the rear
where it appeared a swingarm suspension with single shock absorber called
progressive Sebach APS (Aprilia Progressive System). The system, first case
among 125 Italian road, was born from the experience of Venetian house in
the jeep and it was certainly a novelty for the age sixteen. The brakes use
the proven solution front disc / rear drum. The front brake system is
production Grimeca.
Engine
The motor produced by Japan's Hiro (partner Aprilia mid 70s) is a direct
evolution of the bright motor manufactured for off-road models, but widely
reviewed in the light of the new job working on distribution, on discharge
and six gear ratios relations. Among the main prerogatives of the engine
Hiro include:
The admission system called mixed H.I.S. (Hiro Induction System), or four
blades are arranged for admission to the inlet side and not disturb the flow
of mixture from the carburetor and therefore, with the advantage of using a
diagram optimal for maximum power, but without the shot at low speeds
excessively penalized.
Triggered by a cooling system pump and extended to housing, or a more
efficient circulation thermosyphon cooling systems used in other 125cc era
(see Zündapp KS WK).
The electronic ignition system with variable 130w generator that allows you
to mount an efficient lighting system, combined with a 12v electrical
system.
Datasheet
