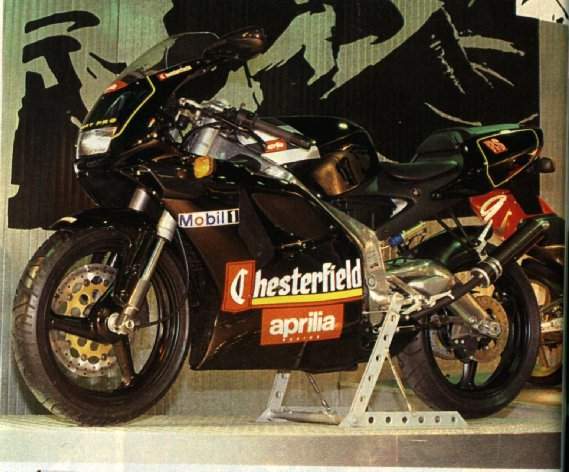

Aprilia RS 125 Extrema Chesterfield
Replica

|
Make Model |
Aprilia RS 125 Extrema Sports Pro Chesterfield
Replica |
|
Year |
1994 |
|
Engine |
Liquid cooled, single cylinder, two stroke, reed valves
induction |
|
Capacity |
125 |
|
Bore x Stroke |
54 x 54.5mm |
|
Compression Ratio |
14.5:1 |
|
Induction |
Dell'Orto VHSB 34LD |
|
Ignition /
Starting |
Electronic / |
|
Max Power |
34 hp 24.8 kW @ 11000 rpm |
|
Max Torque |
25 Nm @ 9000 rpm |
|
Transmission /
Drive |
6 Speed / chain |
|
Front Suspension |
40mm Upside-down forks. 120mm wheel travel |
|
Rear Suspension |
Monoshock. 120mm wheel travel |
|
Front Brakes |
2x 320mm discs 4 piston calipers |
|
Rear Brakes |
Single 240mm disc 2 piston caliper |
|
Front Tyre |
110/70-17 |
|
Rear Tyre |
150/60-17 |
|
Dry-Weight |
115 kg |
|
Dry-Weight / Wet-Weight |
115 kg / 142 kg |
|
Fuel Capacity |
11.5 Litres |
|
Consumption average |
19.5 km/lit |
|
Braking 60 - 0 / 100 - 0 |
13.2 / 37.9 m |
|
Standing
¼ Mile |
14.3 sec / 148.0 km/h |
|
Top Speed |
171.3 km/h |

Presented in the Spring of '92 and sold from
June, the RS 125 Extrema replaces the previous series AF1 reaches its peak with
the Futura Pro Sports, presented just before the Extreme.
As we saw in the 90s with AF1 AF1 Futura Summary Sport and '90, '92 sees the
coexistence of two different models in two series: first the Futura AF1 Sport
Pro and other new series RS Extrema Autumn '92 also available in new color
replica Reggiani. However, unlike the '90s when both the Sports Summary and
future are presented in time to take part in the Sport Production championship,
for the '92 season, only the Futura Pro Sports is submitted in time to be
entered in the league. So while the future Pro Sport is marketed primarily to be
sold to those who run sports league in production, the RS Extrema lives its
first year of life only as a street bike.
The Extreme is essentially a new bike to the future and an exciting new addition
to "dress" features a new fairing and a beautiful, flowing tail, the most
important changes are a brand new chassis - in aluminum - designed from scratch
and to mark the sign of discontinuity with the AF1 series, a new aluminum
swingarm with two arms instead of the single-arm steel previously used.
Unfortunately, the quality of the Extrema is lower than the previous Futura in
some detail how the rider and passenger footrests, but the quality of assembly
and painting is still better.
The Extrema remains in production until the end of '94 and is flanked by two
versions produced in Sport Production in '93 and coloration Reggiani Replica
Replica Chesterfield in '94.
RS125 HISTORY
Racing improves the breed. Aprilia cut its teeth
in the world's two stroke championships, so the public had the race team's R&D
department behind them.
The Italians have always been good at making small capacity bikes. As far back
as 1949, Mondial, Morini and MV Agusta dominated the championships. By 1998, new
boys Aprilia had made their mark, first with the elbow-scraping Loris Reggiani
in the 250cc class, then a year later with Fausto Gresini in 125cc class. It was
at around this time the Noale, based factory launched the road legal AF-1
Sintesi, abike that most seventeen year old boys would have given their right
arm to own. And for most lads of that age, that 's a huge sacrifice...
The AF- 1 was leagues ahead of anything of its time. It had a single-sided
swinging arm for chrissakes, it was beautiful. The bike went through a fairly
gentle evolution with first the AF- 1 Replica, then the AF-1 Futura before the
RS was born in the guise of the RS125 Sportpro in 1993. followed by the RS125
Extrema. Along the way, many top GP riders made their names with the factory,
giving birth to some stunning RS replicas: The likes of Valentino Rossi, Loris
Capirossi, Max Biaggi, Marco Melandri and Harada all, having had bikes built in
their honour,
Just seven years ago Casey Stoner took the 2000 Aprilia RS125 Superteens
Championship, a series that still runs today in the UK. So, not only is the
RS125 a dreams. We got our hands on a 2004 Manuel Poggiali Rep (2003-250GP
Champion) and a brand spanking Jorge Lorenzo Rep (2006, 2007, 250GP Champion) to
find out for ourselves just how good the kids have got it these days.
The simple fact that both of these bikes are in replica colour instantly knocks
year off you. You see, I couldn't afford to own one of these little beauties in
my teens so I had to make the occasional ten-minute blast on my wealthier mate's
Futura. Despite the fact that these days I get paid to ride just about every
modern sports bike (lucky bastard, I know). I've to come clean and tell you that
I'm really very, very excited about having not one, but two 'full power' RS125s
to myself for more than 10 minutes.
Jorge v/s Manuel
The ride up from DK's Newcastle under Lyme showroom up into the Peak District
National Park is hilarious. Absolutely wringing the life out of old Manuel (the
'04 Poggiali replica) in a bid to keep up with young Jorge harder than he's ever
been ridden before, is the most fun I've had on two wheels in months. The fast,
winding roads up towards Buxton provide the perfect playground for these two
bikes as we race towards as imaginary finish line, motor screaming,
slipstreaming on the straights and double daring each other stay off the brakes
through the turns.
Power to weight ratio
For a while I'm convinced that the new RS125 has a lighter weight and smaller
frame is aiding both horsepower and aerodynamics as Jorge clears off from the
lights and steals yards out of the corners on Manuel.
An RS125 in bits isn't going to get you into a girl pants, so do your research
before blowing your young life's savings. Fools rush in, so tread carefully in
this highly populated minefield
In a world increasingly concerned about greenhouse gases. fuel economy and other
such nonsense, the thought of owning and running a two-stroke is to many people,
about as appealing as stripping off, covering themselves in jam and taking a
baseball bat to the nearest wasp's nest. Some might even say that the noise
wouldn't be too dissimilar and that there's every bit as much chance of getting
badly stung.
But, if you were born in a time before the ice caps started to melt, and started
riding before all the rainforests were chopped down, then you'll know just how
satisfying a two-stroke is to ride and more importantly, how simple it is to
work on. There's a lot less to go wrong with a two stroke and despite a
reputation for fragility and unreliability owning and running a stroker can
often be one of the most rewarding times in a biker's life.
The RS125 is actually a pretty reliable bike but it doesn't take a genius to
work out that most will have been preowned by seventeen year olds, so you can
expect neglect and bodged repairs. Here's what to took out for,
Engine and gearbox
The simple fact is that two-stroke motors need to be cared for. The longevity of
the RS125 engine is heavily dependant on using the right grade of oil. Fully
synthetic is the only choice, with Motul 800 Factory Line being a popular choice
amongst Aprilla dealers. Most of the problems associated with the RS can be
avoided by following the correct service schedules, though unsurprisingly, this
isn't something that most teenage owners are any good at. The piston and rings
will need to be inspected at 5,000 miles and pistons should be considered a
disposable service item Genuine Aprilia pistons can be pricey, but aftermarket
ones are readily available and don't give any known problems. Engine seizures
are rare with the RS, thanks to a reliable oil pump and qood carburation as
standard. The biggest known fault with the RS motor is weak main bearings - any
hint of bottom end noise should mean you walk away. The latest model is very
expensive to upgrade to full power from learner legal. Our advice is to not
bother - just trade it in for a full power version.
The RS125 Came with 2 types of engine from 1996 to 1998 Aprilia fitted the Rotax
123 type engine, and from 1998 to present day they fit the Rotax 122 type
engine. Please note both the 122 and the 123 type engines are 124cc the 122 and
123 is reference to the type.
Now the confusion is around 1998 (the swop over year) you can not always rely on
the date of registration as the bike may have been made in 1996 but not
registered until 1998 and thus has the 123 type engine fitted.
