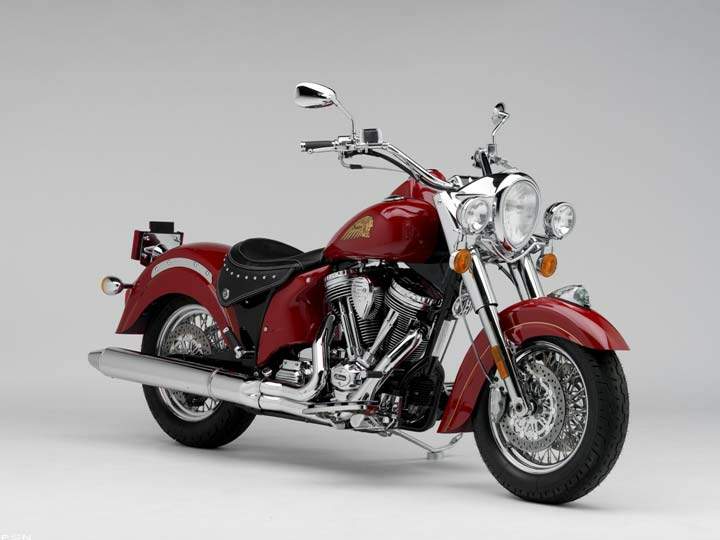

Indian Chief Standard







Make Model

Indian Chief Standard

Year

2009

Engine

Four stroke, V-twin, 2 valve per cylinder.

Capacity

1720 cc / 105 cu-in
Bore x Stroke 3.966 x 4.25 in.
Cooling System Air cooled
Compression Ratio 9.0:1

Induction

Closed loop sequential port fuel injection
Ignition Digital CDI

Starting

-Electric

Max Toque

100 lb-ft  / 135.5 Nm

Transmission

5 Speed
Final Drive Belt
Gear Ratio 1st 10.441:1  2nd 7.090:1  3rd 5.172:1  4th 3.984:1  5th 3.193:1
6th 2.771:1
Frame  High tensile steel, monoshock

Front Suspension

 41 mm diameter
Front Wheel Travel 108 mm / 4.2 in

Rear Suspension

Single shock
Rear Wheel Travel 73 mm / 2.8 in

Front Brakes

Single 292mm disc 2 piston calipers

Rear Brakes

Single 292mm disc 1 piston calipers

Front Tyre

130/90-16

Rear Tyre

150/90-16
Dimensions Length 2552.7 mm / 100.5 in
Width   1028.7 mm / 40.5 in
Height   1282.7 mm / 50.5 in
Wheelbase  1737 mm / 68.4 in
Seat Height Laden: 660 mm / 26.6 in
Unladen: 706 mm / 27.8 in

Dry Weight

350 kg / 773 lbs

Fuel Capacity

20.8 Litres / 5.5 US gal

The new Indian Chief motorcycles are both true to the legacy of the Indian brand and representative of the highest level of engineering expertise. Indian aficionados everywhere will be pleased with these superior motorcycles which effectively blend timeless Indian design with contemporary motorcycle performance.
