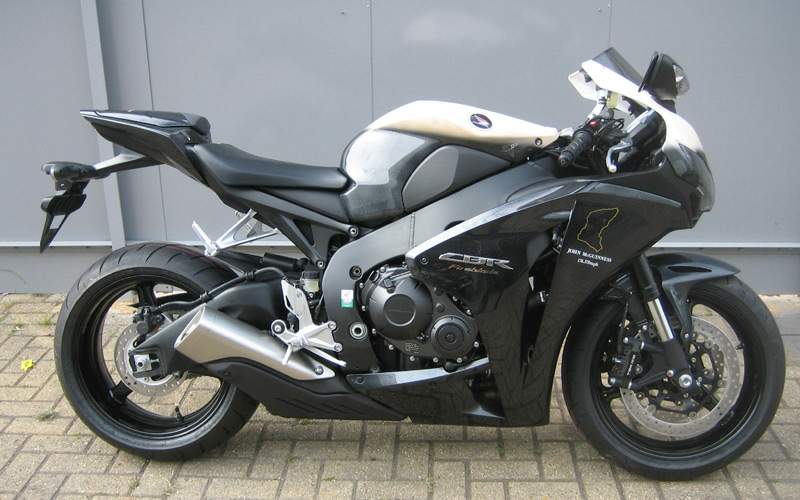

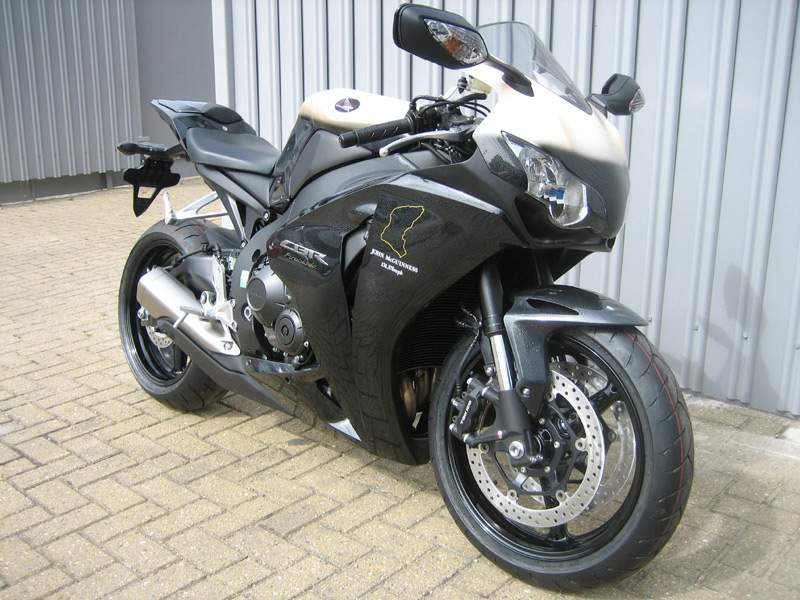

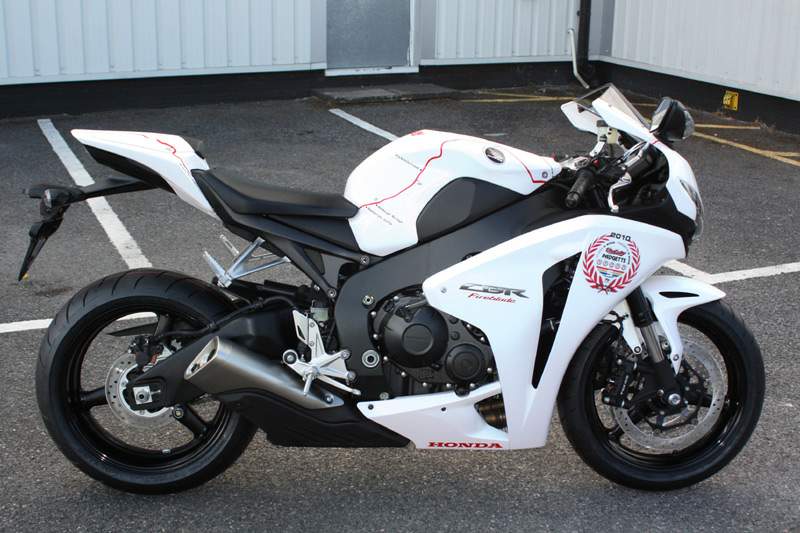

Honda CBR1000RR Fireblade TT Tribute



Make Model

 Honda CBR 1000RR Fireblade TT Tribute

Year

 2010

Engine

Liquid cooled, four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.

Capacity

 998
Bore x Stroke 76 x 55.1 mm
Compression Ratio 12.3 : 1

Induction

 PGM-DSFI electronic fuel injection 46mm Throttle Bore

Ignition  /  Starting

 Computer-controlled digital transistorised with electronic advance  /  electric
Clutch Wet, multiplate with diaphragm spring

Max Power

175.6hp 131.0 kW @ 12000 rpm

Max Torque

 112.0 Nm @ 8500 rpm

Transmission  /  Drive

 6 Speed  /  chain
Gear Ratio 1st 2.286 (32/14)  /  2nd 1.778 (32/18)  /  3rd 1.500 (33/22)  /  4th 1.333 (32/24)  /  5th 1.214 (34/28)  /  6th1.138 (33/29)
Frame Diamond; aluminium composite twin-spar

Front Suspension

 43mm inverted HMAS cartridge-type telescopic fork with stepless preload, compression and rebound adjustment, 120mm  wheel  travel

Rear Suspension

 Unit Pro-Link with gas-charged HMAS damper featuring 10-step preload and stepless compression and rebound damping adjustment, 135mm wheel  travel

Front Brakes

 2x 320mm discs 4 piston calipers, Combined ABS and sintered metal pads

Rear Brakes

 Single 220mm disc, Combined ABS and sintered metal pads

Front Tyre

 120/70ZR-17

Rear Tyre

 190/50ZR-17
Seat Height 820 mm

Wet Weight

 210 kg

Fuel Capacity

 17.7 Litres (including 4-litre LCD-indicated reserve)

Honda Fireblade  Isle of Man TT tribute bikes  have been built to celebrate the success of John McGuinness and Ian Hutchinson – two of the most successful TT racers of all time.

Hutchinson broke the all-time record at the Isle of Man TT races in 2010 by winning five in a week with McGuinness being one of the all time greats with 15 TT wins and the first rider to lap the 37.7 mile course at an average speed of over 130mph.

Source MCN
